NOM lf*4"
(32) x (102)
TYP. 4 PLACES
ROOF OPENINGS
Dimensions
millimeters.
Attach all ductwork to roof curb
Field installation of sidewall insulation
is mandatory
INSULATION FIELD SUPPLIED
(SEE NOTE 3)

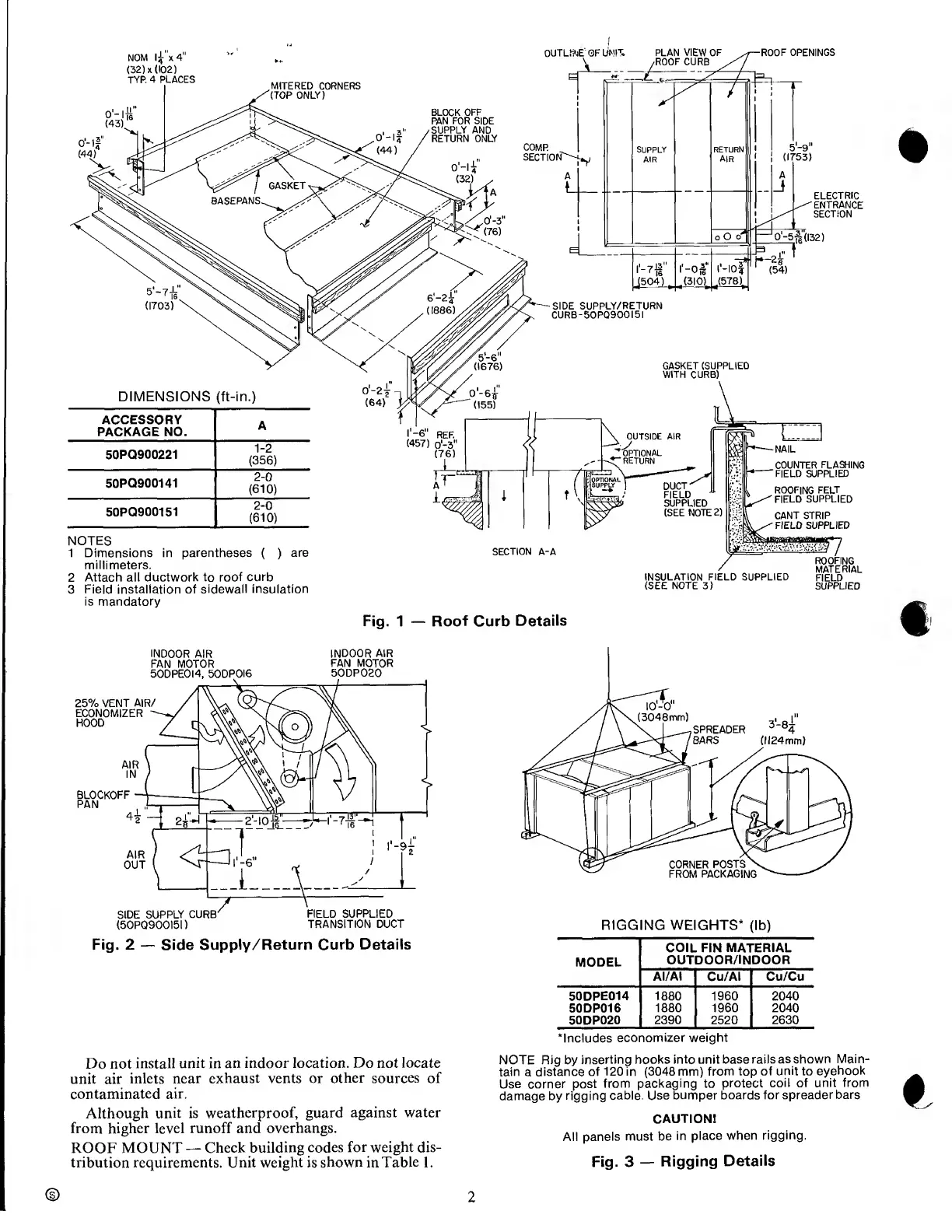

Fig. 1 — Roof Curb Details
INDOOR AIR INDOOR AIR
FAN MOTOR FAN MOTOR
50DPE0I4, 50DP0I6 50DP020
(50PQ900I5I) TRANSITION DUCT
Fig. 2 — Side Supply/Return Curb Details
Do not install unit in an indoor location. Do not locate
unit air inlets near exhaust vents or other sources of
contaminated air.
Although unit is weatherproof, guard against water
from higher level runoff and overhangs.
ROOF MOUNT — Check building codes for weight dis¬
tribution requirements. Unit weight is shown in Table 1.
RIGGING WEIGHTS* (lb)
MODEL
COIL FIN MATERIAL
OUTDOOR/INDOOR
AI/AI
Cu/AI Cu/Cu
50DPE014 1880 1960
2040
50DP016
1880 1960
2040
50DP020
2390
2520 2630
‘Includes economizer weight
NOTE Rig by inserting hooks into unit base rails as shown Main¬
tain a distance of 120 in (3048 mm) from top of unit to eyehook
Use corner post from packaging to protect coil of unit from
damage by rigging cable. Use bumper boards for spreader bars
CAUTION!
All panels must be in place when rigging.
Fig. 3 — Rigging Details
2
