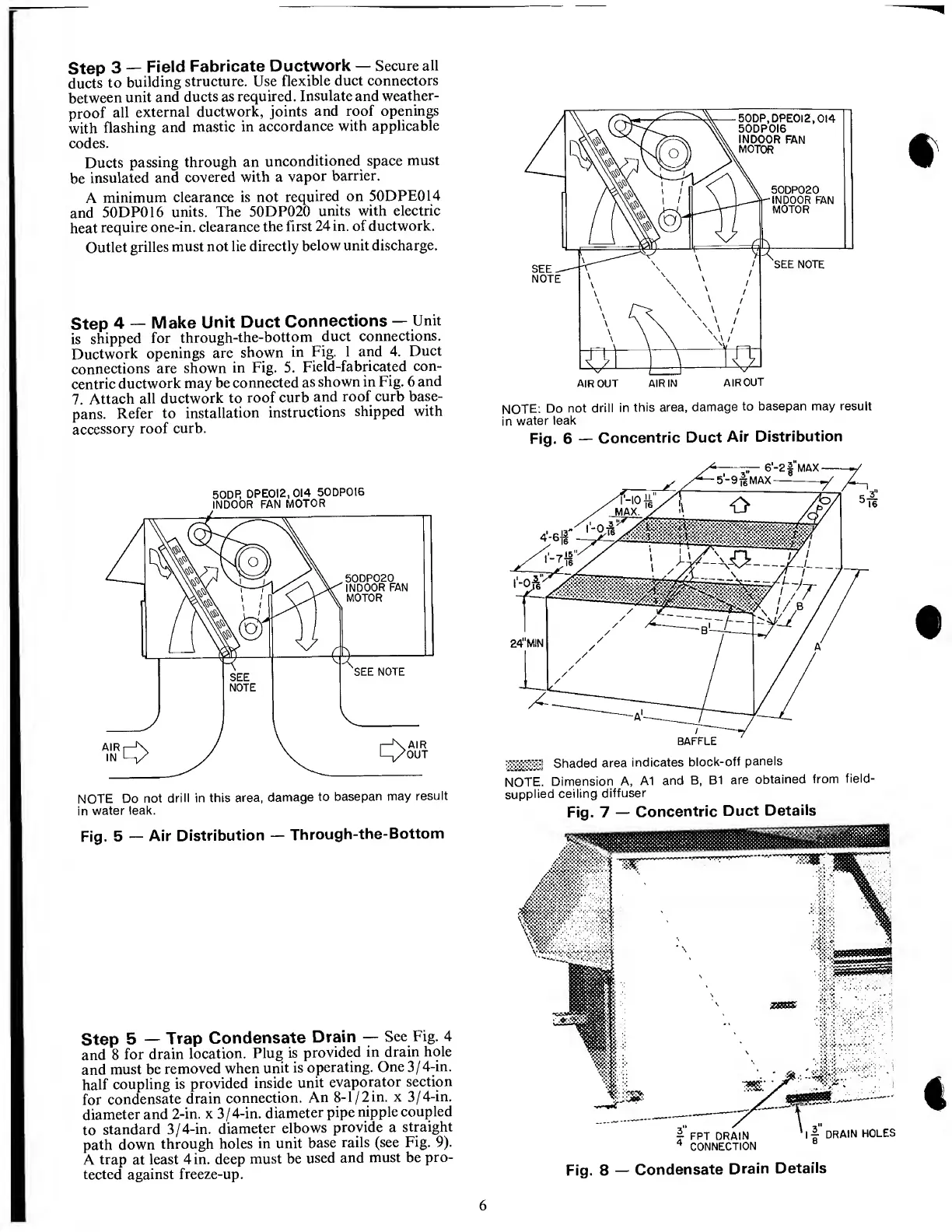

Step
3
Field
Fabricate
Ductwork
Secure
all
ducts
to
building
structure.
Use
flexible
duct
connectors
between
unit
and
ducts
as
required.
Insulate
and
weather¬
proof
all
external
ductwork,
joints
and
roof
openings
with
flashing
and
mastic
in
accordance
with
applicable
codes.
Ducts
passing
through
an
unconditioned
space
must
be
insulated
and
covered
with
a
vapor
barrier.
A
minimum
clearance
is
not
required
on
50DPE014
and
50DP016
units.
The
50DP020
units
with
electric
heat
require
one-in.
clearance
the
first
24
in.
of
ductwork.
Outlet
grilles
must
not
lie
directly
below
unit
discharge.
Step
4
Make
Unit
Duct
Connections
Unit
is
shipped
for
through-the-bottom
duct
connections.
Ductwork
openings
are
shown
in
Fig.
1
and
4.
Duct
connections
are
shown
in
Fig.
5.
Field-fabricated
con¬
centric
ductwork
may
be
connected
as
shown
in
Fig.
6
and
7.
Attach
all
ductwork
to
roof
curb
and
roof
curb
base-
pans.
Refer
to
installation
instructions
shipped
with
accessory
roof
curb.
50DR
DPE0I2,
014
50DP0I6
INDOOR
FAN
MOTOR
NOTE
Do
not
drill
in
this
area,
damage
to
basepan
may
result
in
water
leak.
Fig.
5
Air
Distribution
Through-the-Bottom
Step
5
Trap
Condensate
Drain
See
Fig.
4
and
8
for
drain
location.
Plug
is
provided
in
drain
hole
and
must
be
removed
when
unit
is
operating.
One
3/4-in.
half
coupling
is
provided
inside
unit
evaporator
section
for
condensate
drain
connection.
An
8-1/2
in.
x
3/4-in.
diameter
and
2-in.
x
3/4-in.
diameter
pipe
nipple
coupled
to
standard
3/4-in.
diameter
elbows
provide
a
straight
path
down
through
holes
in
unit
base
rails
(see
Fig.
9).
A
trap
at
least
4
in.
deep
must
be
used
and
must
be
pro¬
tected
against
freeze-up.
NOTE:
Do
not
drill
in
this
area,
damage
to
basepan
may
result
in
water
leak
Fin
6
Concentric
Duct
Air
Distribution
Shaded
area
indicates
block-off
panels
NOTE.
Dimension
A,
A1
and
B,
B1
are
obtained
from
field-
supplied
ceiling
diffuser
Fig.
7
Concentric
Duct
Details
Fig.
8
Condensate
Drain
Details
6
