GB - 11
ENGLISH
...use of quick-connect couplings for fixed installation.
Models 51AKS 010---, 013---, 015--- are provided with quick coupling connections
that allow the unit to be disconnected up to a maximum of six times without
impairing the performance of the air conditioner.
This operation must always be carried out by qualified and authorized
personnel.

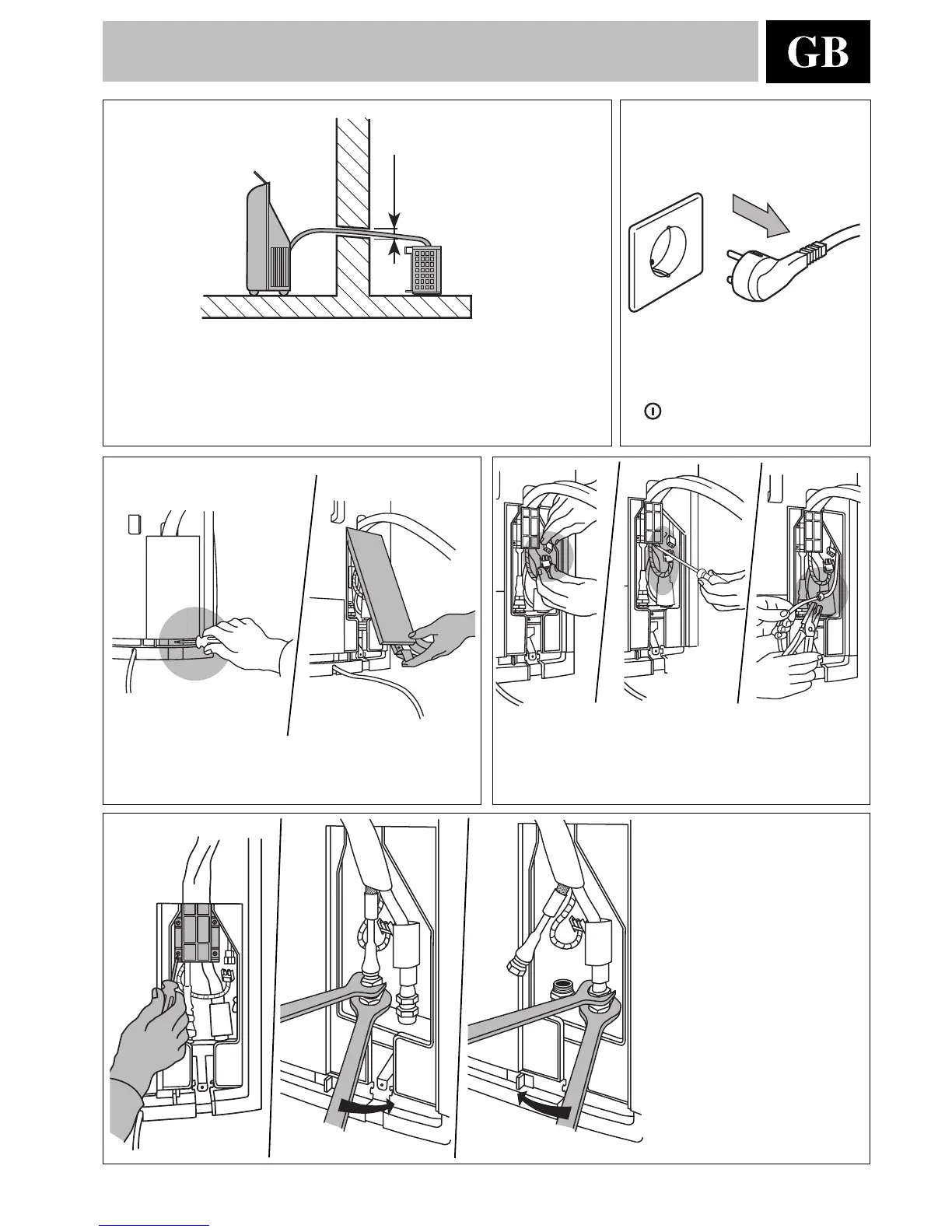

To disconnect, proceed as follows:
Ø 60 mm
햲
햴
햳
햴
Quick-connect couplings
(models split 51AKS)
Using the special tool, unscrew the fixing screw and remove
the closing cap.
Disconnect the electrical connector.
Disconnect the ground wire of the outdoor section using a Philips
screwdriver.Loosen the fixing clamp of the small tube that takes
condensing water to the outdoor unit, taking care to discharge
the remaining condensate water into a pan or the indoor unit
collection tank.
Remove the 4 screws of the fixing
bracket flexible pipe.
Using two fixed wrenches (24 mm on
turning nut and 19 or 21 mm on fixed
parts) operate on the turning nut,
unscrew and remove the quick
coupling connections.
Protect the connection end parts
with caps.
Position the outdoor unit outside in
the desired position passing the
flexible pipe through the hole (Ø 60
mm) in the wall.
The two parts of the air conditioner
should only be separated for the
shortest possible time.
For unit re-assembly repeat the
previous operations in reverse order.
For re-connection of the quick
coupling, apply a tightening torque of
23 to 27 Nm.
햲 Fixed wrench 19 mm
햳 Fixed wrench 21 mm
햴 Fixed wrench 24 mm
Switch the unit off by pressing button
1
and remove the plug from the
power supply socket.
