Casio Casiotone 1000P User Manual

tvKSJSS
T 1

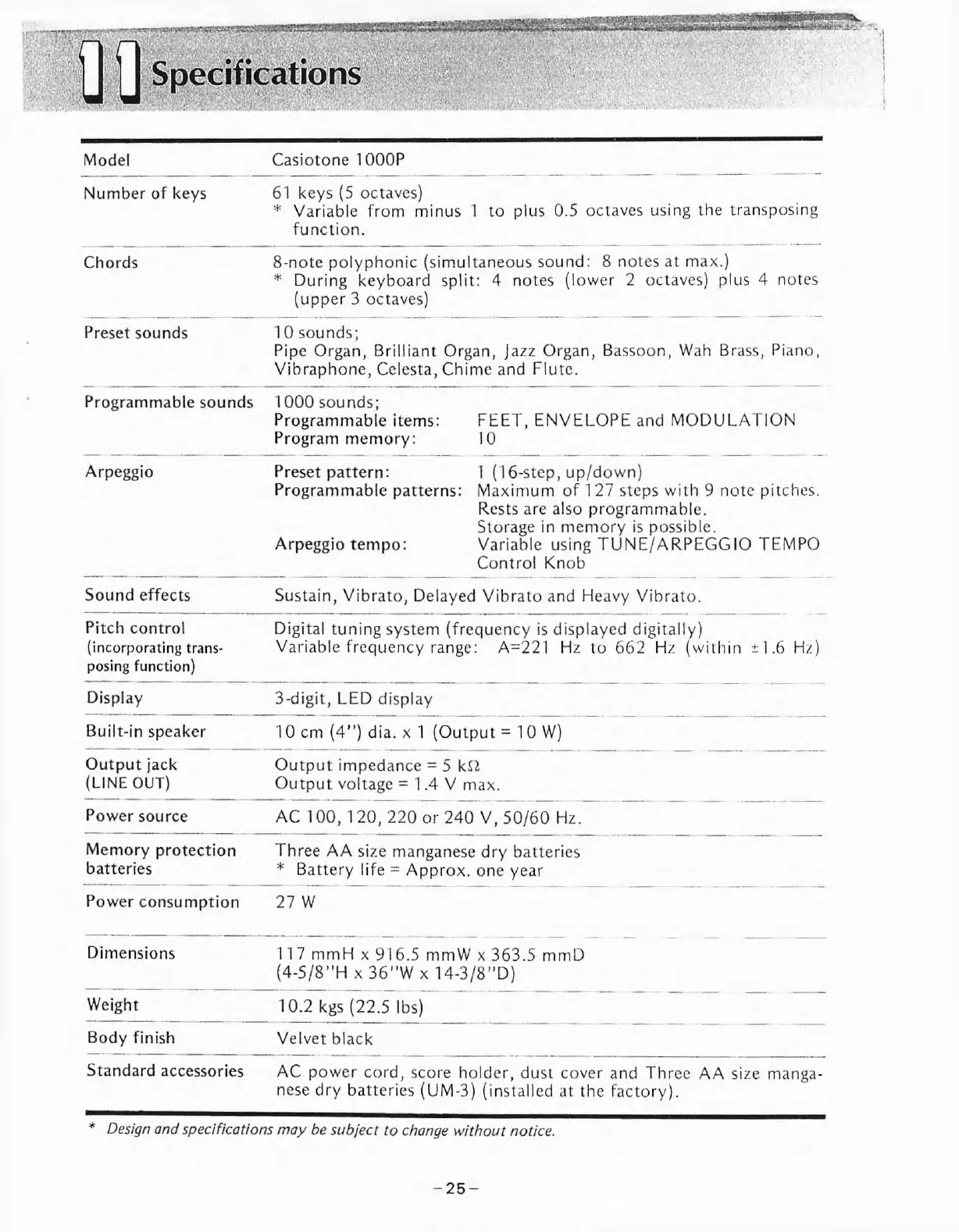

Specifications
Model
Casiotone 1000P
Number of keys
61 keys (5 octaves)
* Variable from minus 1 to plus 0.5 octaves using the transposing
function.
Chords
8-note polyphonic (simultaneous sound: 8 notes at max.)
* During keyboard split: 4 notes (lower 2 octaves) plus 4 notes
(upper 3 octaves)
Preset sounds
1 0 sounds;
Pipe Organ, Brilliant Organ, jazz Organ, Bassoon, Wah Brass, Piano,
Vibraphone, Celesta, Chime and Flute.
Programmable sounds
1000 sounds;
Programmable items: FEET, ENVELOPE and MODULATION
Program memory: 10
Arpeggio
Preset pattern: 1 (1 6-step, up/down)
Programmable patterns: Maximum of 127 steps with 9 note pitches.
Rests are also programmable.
Storage in memory is possible.
Arpeggio tempo: Variable using TUNE/ARPEGGIO TEMPO
Control Knob
Sound
effects
Sustain, Vibrato, Delayed Vibrato and Heavy Vibrato.
Pitch control
(incorporating trans 
posing function)
Digital tuning system (frequency is displayed digitally)
Variable frequency range: A=221 Hz to 662 Hz (within ±1.6 Hz)
Display
3-digit, LED display
Built-in speaker
10 cm (4 ” ) dia. x 1 (Output = 1 0 W)
Output jack
(LINE OUT)
Output impedance = 5 kS2
Output voltage = 1.4 V max.
Power source
AC 100, 1 20, 220 or 240 V, 50/60 Hz.
Memory protection
batteries
Three AA size manganese dry batteries
* Battery life = Approx, one year
Power
consumption
27 W
Dimensions
11 7 mmH x 916.5 mmW x 363.5 mmD
(4-5/8 ” H x 36 ” W x 14-3/8 ” D)
Weight
10.2 kgs (22.5 lbs)
Body finish
Velvet black
Standard accessories
AC power cord, score holder, dust cover and Three AA size manga 
nese dry batteries (UM-3) (installed at the factory).
* Design and specifications may be subject to change without notice.
- 25 -
