Casio CPS-85 User Manual

— 11 —

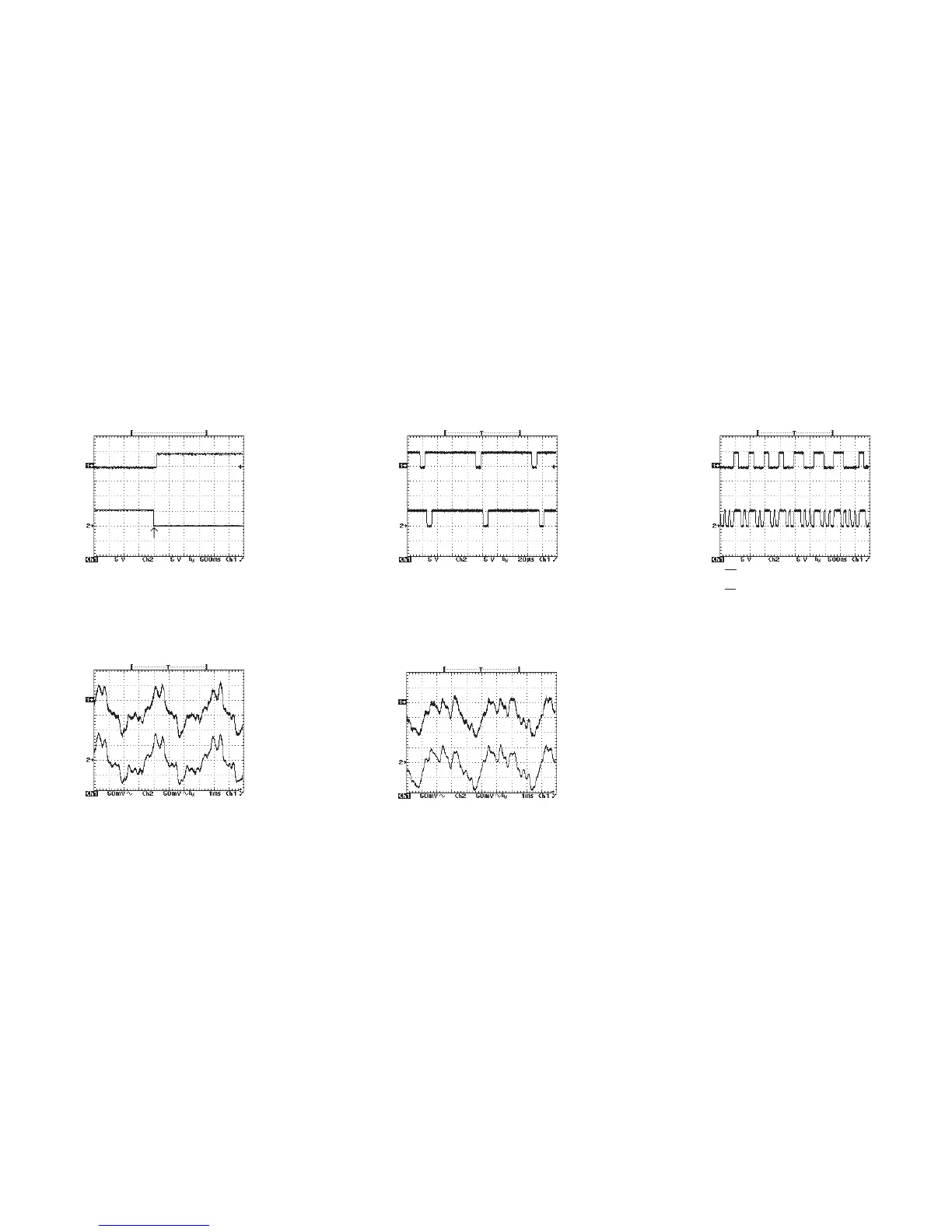

MAJOR WAVEFORMS
1 ADP (POWER) signal
JE connector pin 5
2 NMI signal
JE connector pin 7
3 KC0 signal
JD connector pin 15
4 KC1 signal
JD connector pin 14
5 CE (MCSBO) signal
LSI3 pin 12
6 OE (MRDB) signal
LSI3 pin 14
7 DAC output (L-ch)
JE connector pin 12
8 DAC output (R-ch)
JE connector pin13
9 Sound signal (L-ch)
JF connector pin 7
0 Sound signal (R-ch)
JF connector pin 8
Tone : Strings
Key : A4
Reverb : ON
Volume : Maximum
Touch response : Maximum
1
2
3
4
5
6
7
8
9
0
Power ON
