Power Amplifier (LA4598)
LA4598 is a 2-channel power amplifier with stand-by switch.
The following table shows the pin functiion of the power amplifier.
Pin No. Terminal In/Out Function
1 Power GND In Ground (0V) source
2 Ch1 B.S. Terminal for bootstrap capacitor
3 Ch1 OUT Out Channel 1 output
4 VCC In +9V source
5 Ch1 N.F. In Negative feedback input
6 Ch1 IN In Channel 1 input
7 D.C. Terminal for decoupling capacitor
8 Pre GND In Ground (0V) source
9 Stand by In Power control signal input. 0V: OFF, +9V: ON
10 Ch2 IN In Channel 2 input
11 Ch2 N.F. In Negative feedback input
12 Ch2 OUT Out hannel 2 output
13 Ch2 B.S. Terminal for bootstrap capacitor
14 NC Not used.
6
5
8
7
10
11
13
12
9
4
1
3
2
Input
Amp.
Pre-drive
Amp.
Power
Amp.
TSD protector
Stand by
Bias circuit
Input
Amp.
Pre-drive
Amp.
Power
Amp.
Ch1 IN
Ch1 NF
Pre GND
D.C.
Ch2 IN
CH2 NF
CH2 BS
CH1 OUT
POWER GND
VCC
STAND BY
CH2 OUT
CH2 BS

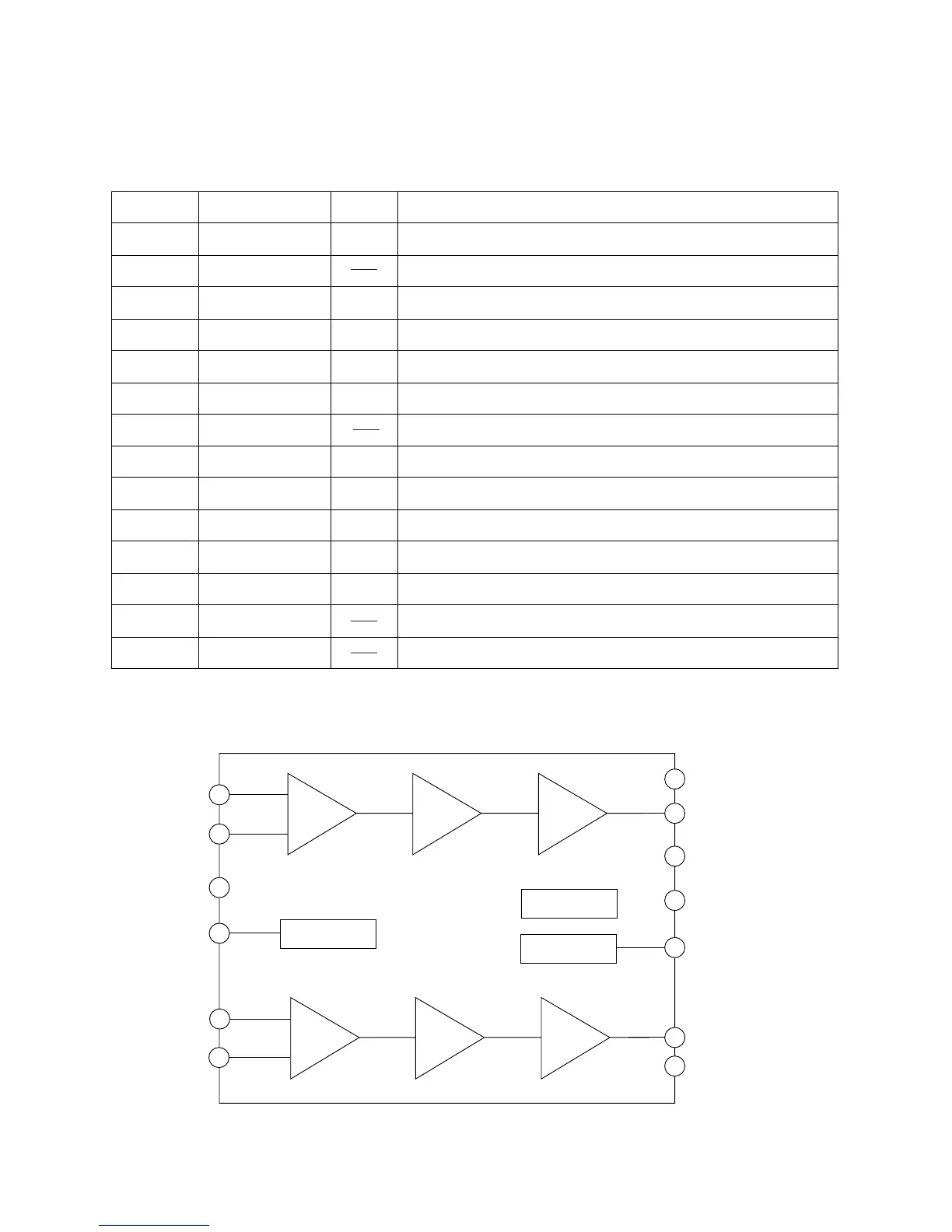

Block Diagram
