E-10

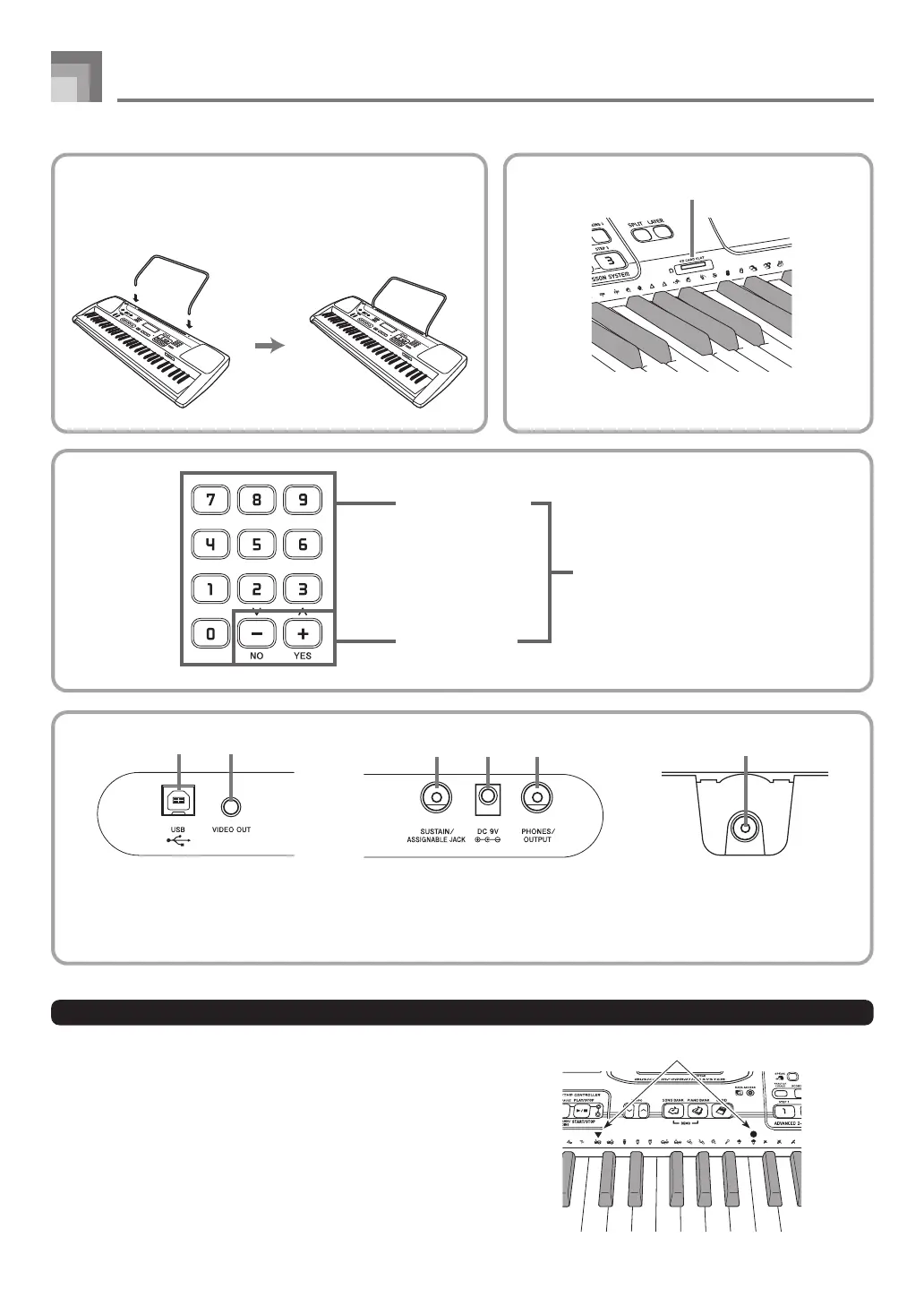

General Guide
*2
Rear Panel
j k l
j
SUSTAIN/ASSIGNABLE JACK
k
DC 9V jack
l
PHONES/OUTPUT jack
664A-E-012A
f
Number buttons
g
[+]
/
[–]
buttons
• For input of numbers to
change a displayed number
or setting.
• Negative values cannot be
input using the number
buttons. Use [+] (increase)
and [–] (decrease) instead.
h
USB port
i
VIDEO OUT jack
h i
*1 Attaching the Score Stand
Insert both ends of the music stand provided with the
keyboard into the two holes on the top surface.
m
m
MIC jack
e
SD CARD SLOT
e
*3
Using the Keyboard Position Stickers
Affix the keyboard position stickers that come with the keyboard as
shown in the illustration below. The locations of the ▼ and ● marks
will correspond to the marks shown in the TV image when you
practice while viewing a TV screen. This will make it easier for you
to see the relationship between the TV image and the keyboard.
C
4
C
5
Affix the keyboard position stickers here.
To Next Page
