Connection to a component video output
z Component video output terminals come in 3-terminal sets: Y·Cb·Cr or Y·Pb·Pr. Be sure to match
the colors of the plugs on a component video cable with the colors of the terminals (Green: Y;
Blue: Cb/Pb; Red: Cr/Pr).
z Note that connection only to an analog component video output terminal is supported.
Connection to a digital output terminal is not supported.

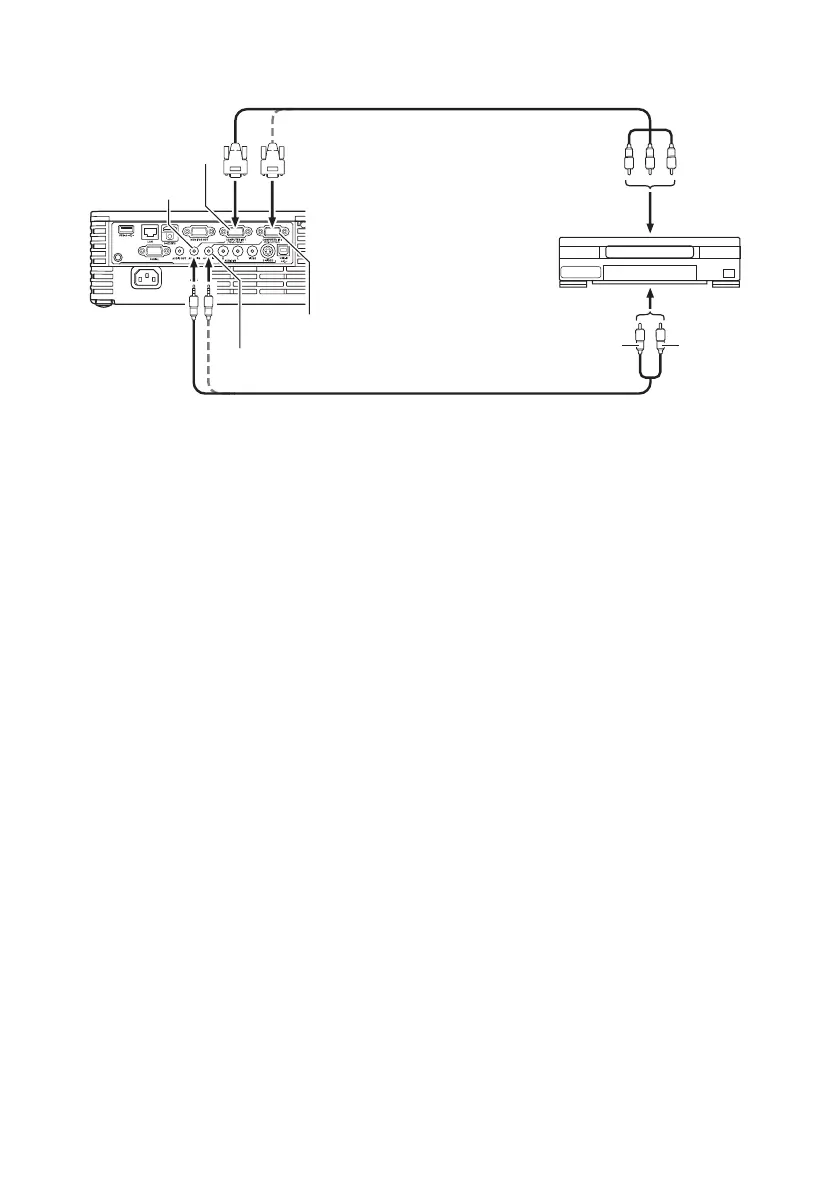

Projector
AUDIO IN 1 terminal
COMPUTER IN 1 terminal
Stereo mini plug
Ù
Pin plug type audio cable
(commercially available)
Component video cable (commercially available)
To component video output
terminals
To AUDIO output terminals
Video device
RedWhite
AUDIO IN 2 terminal
COMPUTER IN 2 terminal
