20 Fiber Optic Temperature Control (optional)
Fiber Optic Temperature Control (optional)
The Fiber Optic probe provides direct temperature measurement inside the control vessel.
Fiber Optic Installation
If the vessel set requires ber optic temperature control, install and enter the GF value as outlined below.
1. Connect the ber optic probe to the port in the top center of the MARS 6 cavity by pushing in the plug until it
snaps into place

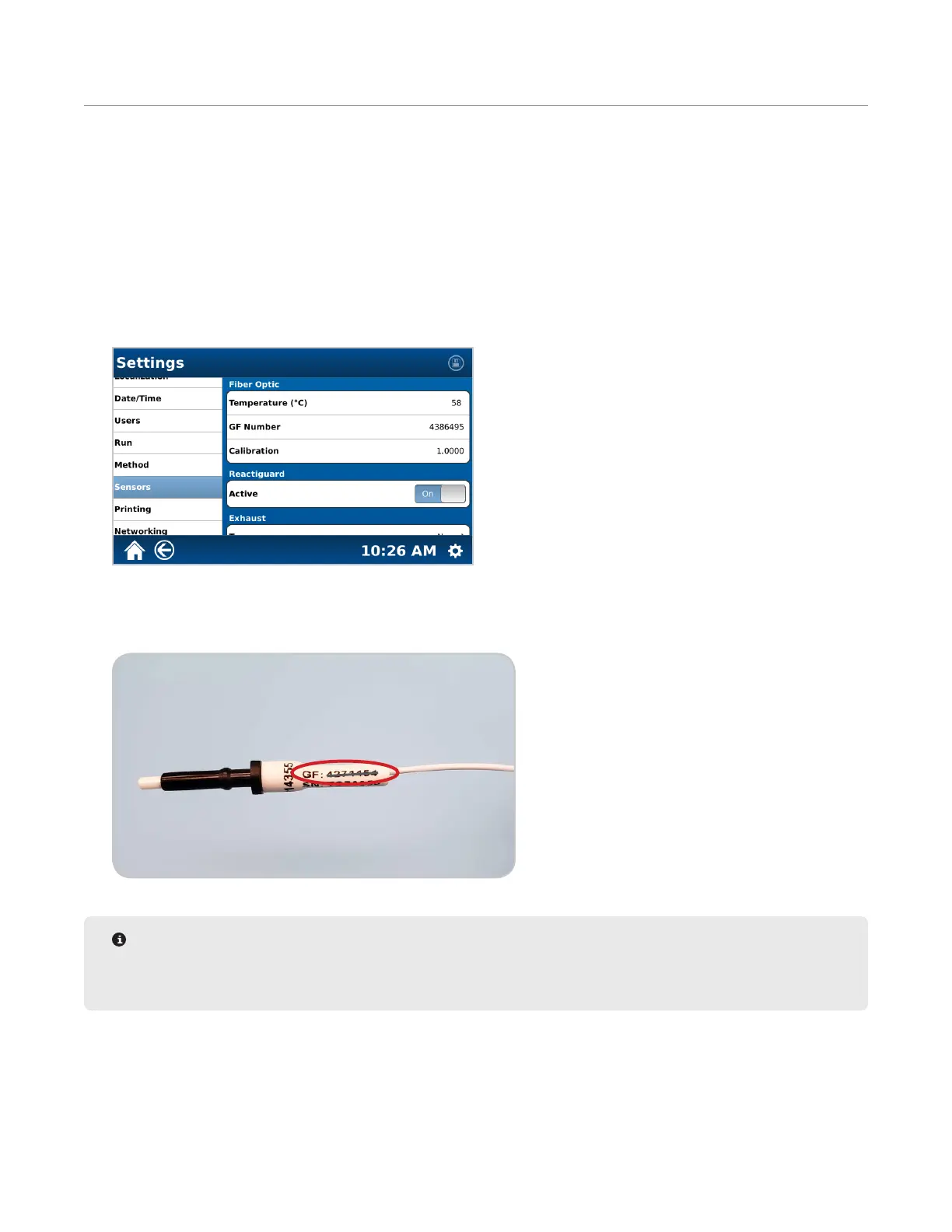

2. Select the System Settings icon in the bottom right corner of the screen.
3. Select Settings.
4. Select Sensors.
5. Select the current GF Number.
6. Using the Keyboard, enter the GF Number on the Fiber Optic Probe installed in the instrument. The GF number
can be found on the white connector on the probe. Each probe has a specic 7 digit GF number.
NOTE
Always ensure that the number on the probe and the number in the software are the same. If a new probe
is installed, then a new GF will need to be saved.
7. Once the number is properly entered, select “hide” to close the keyboard.
8. Save the GF number by selecting the Save icon located at the top right corner of the screen.
9. The current ber optic temperature reading is located above the GF. Verify the temperature reading at room
temperature.
To Next Page
