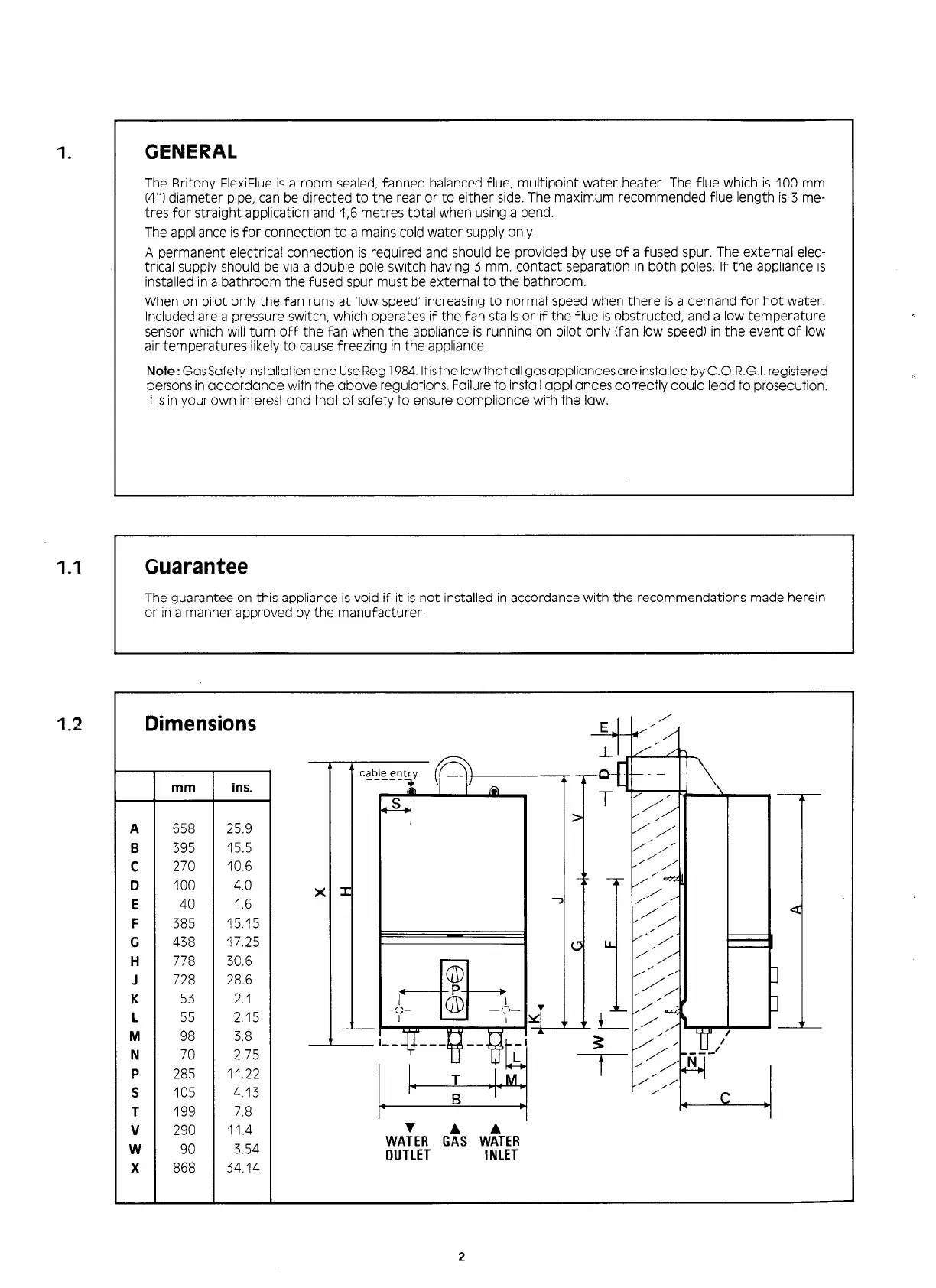

GENERAL
The Britony FlexiFlue is a room sealed, fanned balanced flue, multipoint water heater. The flue which is 100 mm
(4”) diameter pipe, can be directed to the rear or to either side. The maximum recommended flue length is 3 me-
tres for straight application and 1.6 metres total when using a bend.
The appliance is for connectton to a mains cold water supply only.
A permanent electrical connection is required and should be provided by use of a fused spur. The external elec-
trical supply should be via a double pole switch having 3 mm. contact separation in both poles. If the appliance is
installed in a bathroom the fused spur must be external to the bathroom.
When on pilot only the fan runs at ‘low speed’ increasing to normal speed when there is a demand for hot water.
Included are a pressure switch, which operates if the fan stalls or if the flue is obstructed, and a low temperature
sensor which wili turn off the fan when the appliance is running on pilot only (fan low speed) in the event of low
air temperatures iike!y to cause freezing in the appliance.
Note: GasSafetylnstallaticnand UseReg 1984. Itisthelawthatallgasappliancesareinstalled byC.0.R.G.I. registered
persons in accordance with the above regulations. Failure to install appliances correctly could lead to prosecution.
It is in your own interest and that of safety to ensure compliance with the law.
1.1
Guarantee
The guarantee on this appliance is void if it is not installed in accordance with the recommendations made herein
or in a manner approved by the manufacturer.
1.2
Dimensions
A
B
C
D
E
F
G
H
J
K
L
M
N
P
S
T
V
W
X
mm ins.
658 25.9
395
15.5
270 10.6
100 4.0
40 1.6
385 15.15
438 17.25
778 30.6
728
28.6
53 2.1
55 2.15
98 3.8
70 2.75
285 11.22
105
4.13
199 7.8
290
11.4
90
3.54
868
34.14
-
X
-
u
-I- l/’
/
I
/,/
,/“/
7
,/”
,’
u
,/
1;
‘,’
A;
I
r/4
3 ‘1
L ’
B ’
2
