6-42

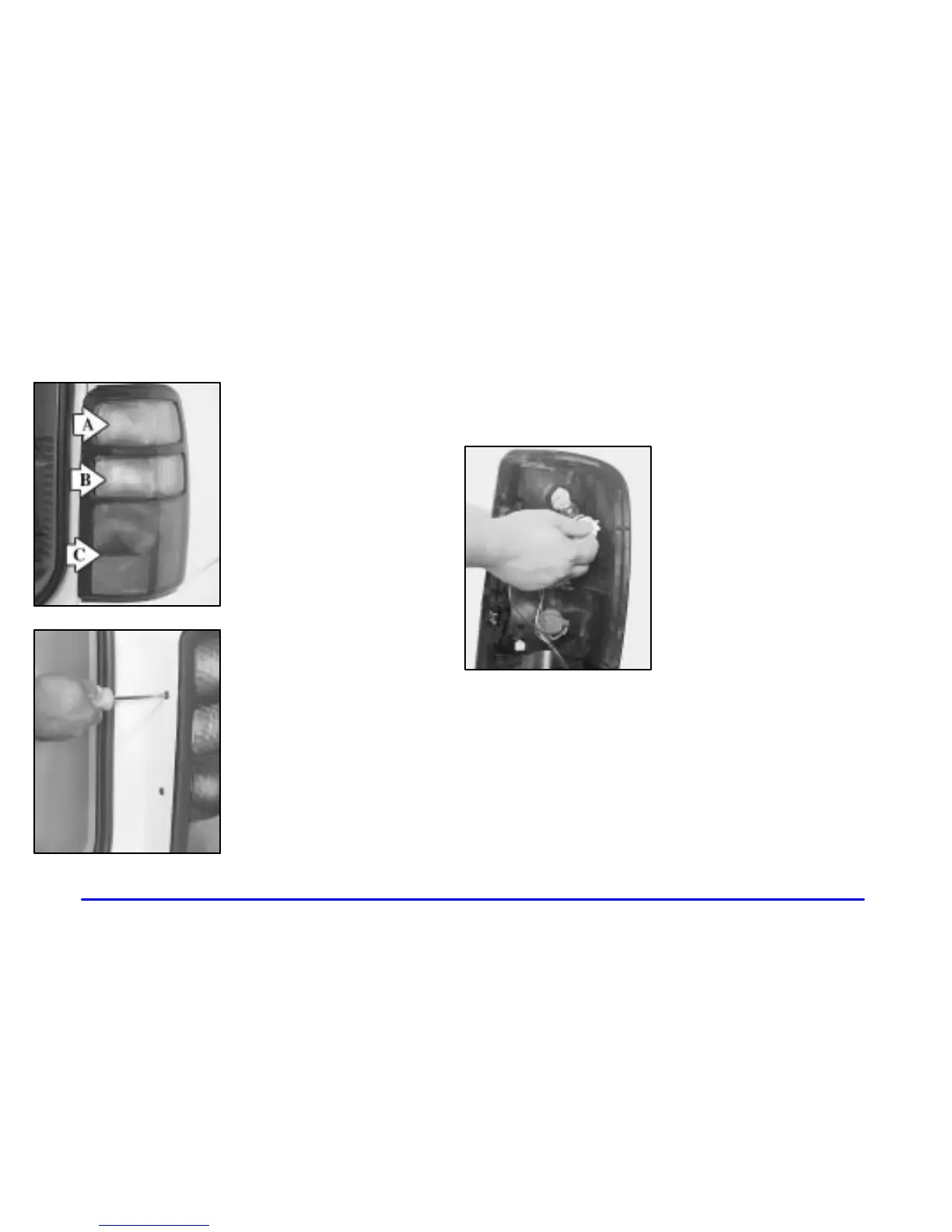

Taillamps
A. Turn Signal Lamp
B. Back-up Lamp
C. Stoplamp
1. Use a Phillips screwdriver
to remove the two screws
from the lamp assembly.
2. Remove the lamp assembly.
3. Press the release tab and turn the bulb socket
counterclockwise to remove it from the
taillamp housing.
4. Pull the old bulb straight
out from the socket.
5. Press a new bulb into the socket, insert the socket
into the taillamp housing and turn the socket
clockwise into the taillamp housing until it clicks.
6. Reinstall the rear lamp assembly and tighten
the screws.
