Taillamps, Stoplamps and Back-up
Lamps

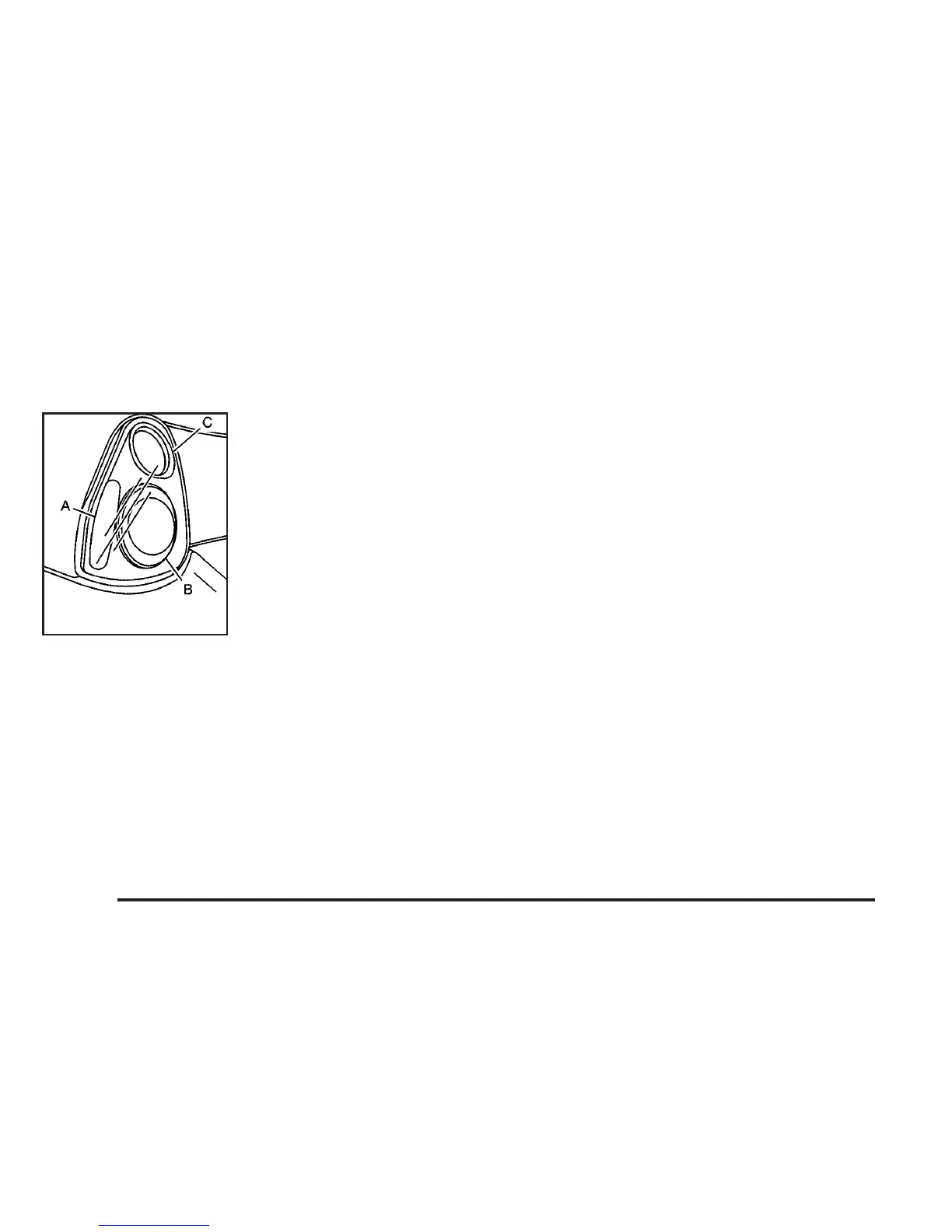

A. Rear Sidemarker Lamp
B. Taillamp/Turn Signal
and Stoplamp
C. Taillamp
To replace one of these bulbs, do the following:
1. Open the trunk. See Trunk on page 2-11 for more
information.
2. Remove the convenience net, if your vehicle has
one, and then remove it by unhooking the upper
wing nut.
3. Pull the carpet away from the rear of the vehicle.
4. Remove the two hex nuts.
5. Pull the assembly from the vehicle.
6. Remove the bulb socket. To do so, press the tab,
turn it counterclockwise and pull it out.
7. Pull the old bulb out. Do not twist it.
8. Push the new bulb into the bulb socket.
9. Reverse Steps 1 through 5 to reinstall the taillamp
assembly.
5-50
