Page #11 background image

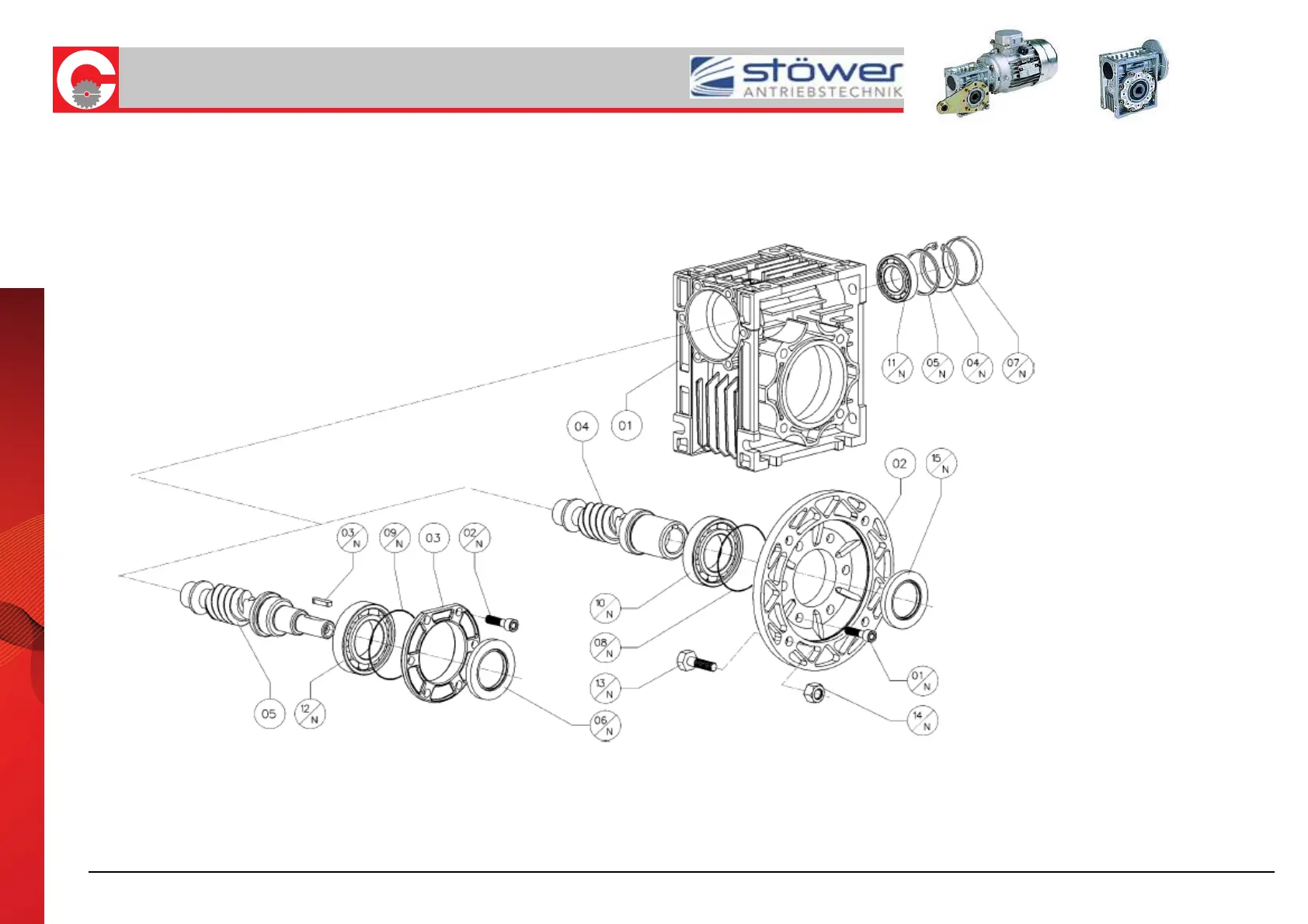

Pos Spareparts
1 Housing
2 PAM-Fl
ange
3 Gear unit cover
4
Double ext. PAM worm
5
Double ext. RV worm
01
N Screw DIN 912
02 N
Screw DIN 912
03 N
Key DIN 6885
04 N
Circlip DIN 472
05 N
Spacer DIN
06 N
Oil Seal DIN 3760
07 N
End cap
08 N O-Ring
09 N O-Ring
10 N
Bearing
11 N
Bearing
12 N
Bearing
12 N
Bearing
13 N S
crew DIN 930
14 N Nut DIN 934/6
15 N
Oil Seal DIN 3760
Sparepart list / Input site
26
C - SERIE BETRIEBE- UND wARTUNGSANLEITUNG
CHM - SERIE BETRIEBE- UND wARTUNGSANLEITUNG
Stöwer Antriebstechnik GmbH, Enneststrasse 3, 51702 Bergneustadt, Tel. 02261-40970, Fax: 41309, www.stoewer-getriebe.de
