Cisco 3600 Series Hardware Installation Guide

3-19
Cisco 3600 Series Routers Hardware Installation Guide
OL-2056-05
Chapter 3 Installing the Router
Installing Chassis Ground Connection
Installing Chassis Ground Connection
All Cisco 3600 series router chassis require a reliable earth ground connection. You must connect the
chassis to a reliable earth ground; the ground wire must be installed in accordance with local electrical
safety standards.
• For NEBS-compliant grounding, use size AWG 6 (13 mm
2
) wire and the ground lug provided in the
accessory kit.
• For NEC-compliant grounding, use size AWG 14 (2 mm
2
) or larger wire and an appropriate
user-supplied ring terminal.
• For EN/IEC 60950-compliant grounding, use size AWG 18 (1 mm
2
) or larger wire and an
appropriate user-supplied ring terminal.
For chassis grounding instruction, see one of the following sections:
• Cisco 3620 and Cisco 3640 Chassis Ground Connection, page 3-19
• Cisco 3631 Chassis Ground Connection, page 3-24
• Cisco 3660 Chassis Ground Connection, page 3-25
Cisco 3620 and Cisco 3640 Chassis Ground Connection
To connect a Cisco 3620 or Cisco 3640 chassis to ground, perform this procedure:
Step 1 Attach the ground-lug bracket to the power supply as shown in Figure 3-31 or Figure 3-32. Use a
number 2 Phillips screwdriver and the screw or screws that are already in the router chassis.
For Cisco 3620 routers, use the power-supply retaining screw at the bottom of the power supply.
For Cisco 3640 routers, use the two power-supply retaining screws: one at the lower left and one at the
upper right.
DC power supply is shown. The bracket attachment for the AC power supply and the Cisco Redundant
Power System (RPS) is similar.

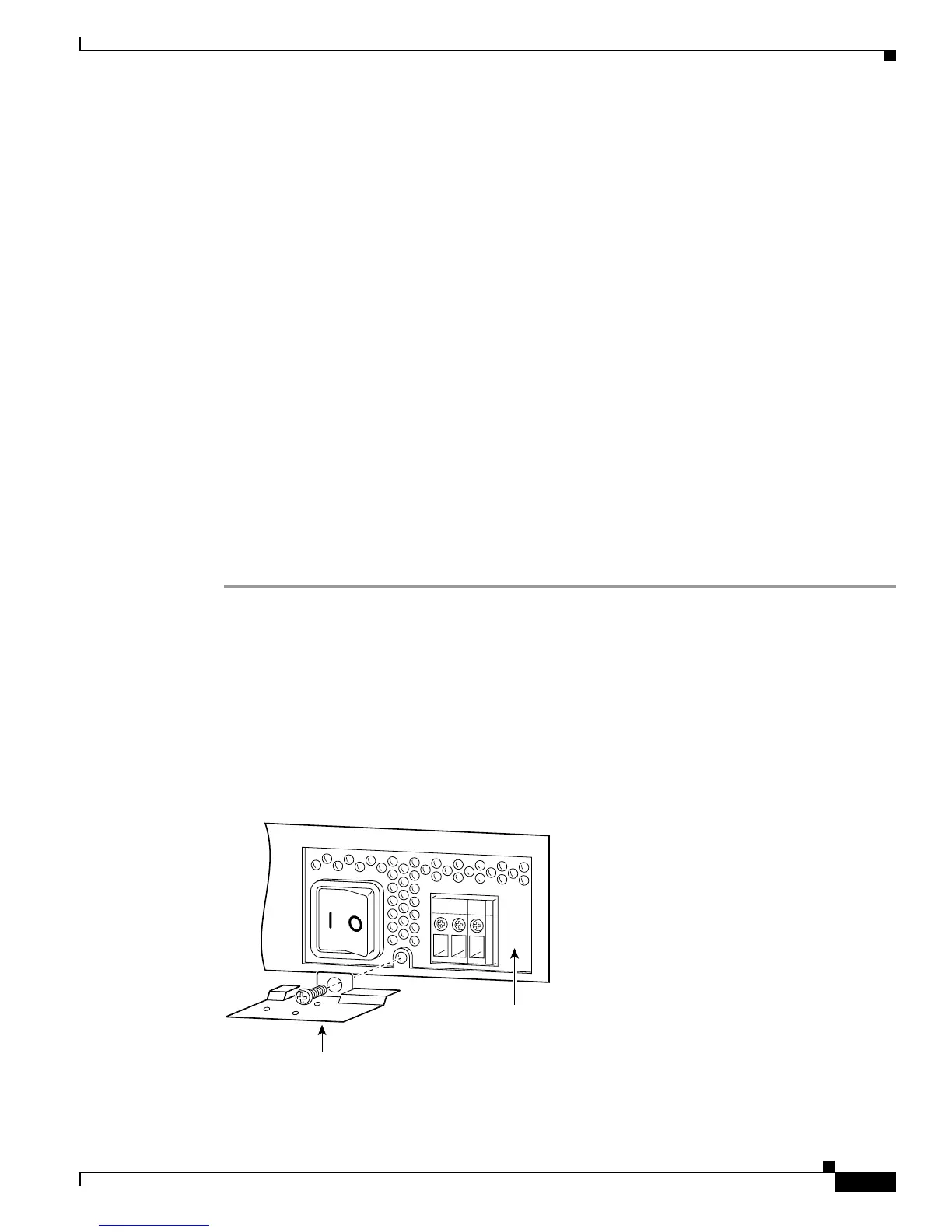

Figure 3-31 Required Ground-Lug Bracket Attachment on a Cisco 3620 Router (DC Power Supply
Shown)
15849
Bracket
Power
supply
