Upgrading System Memory in Cisco 3700 Series Routers
OL-5423-02
Upgrading System Memory in Cisco 3725 Routers

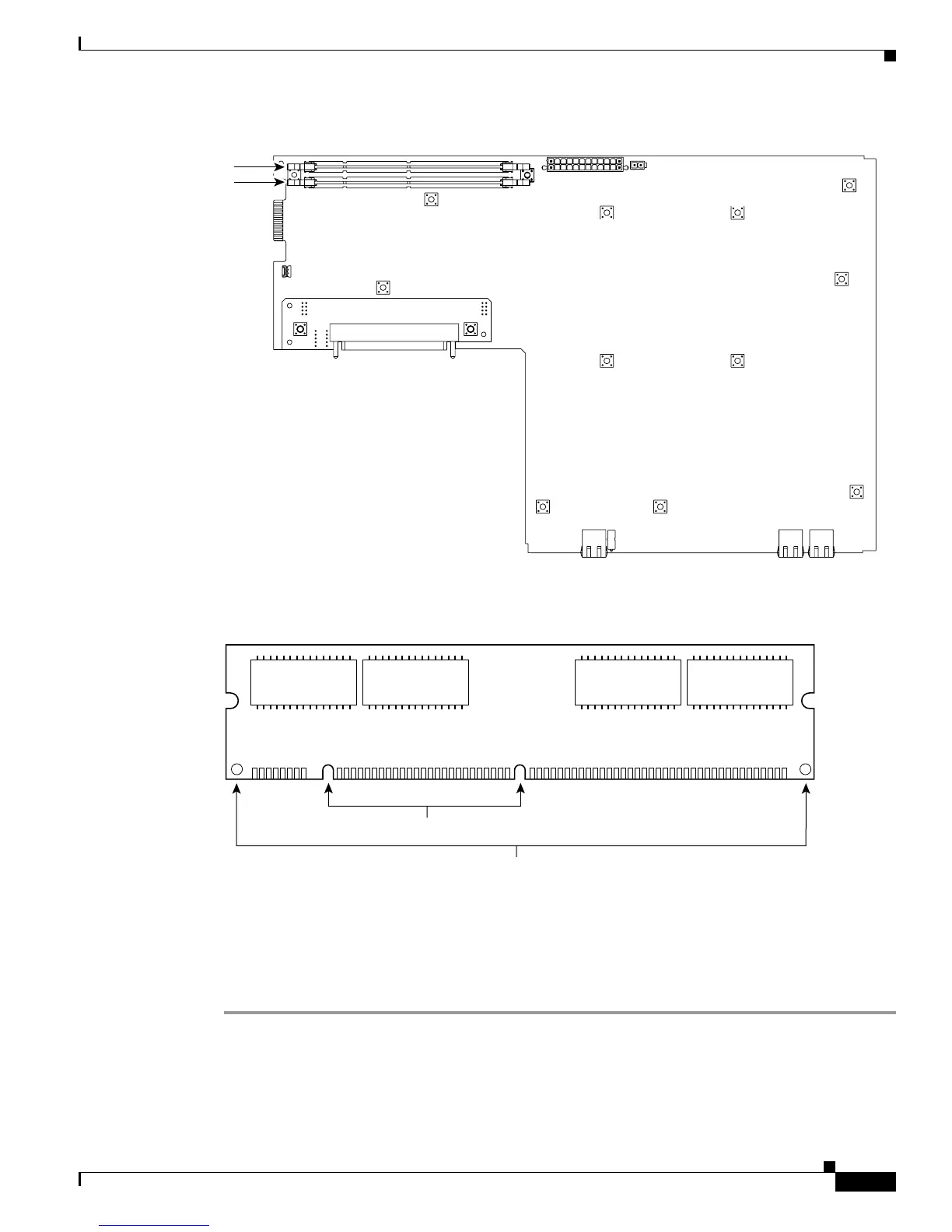

Figure 2 SDRAMM DIMM Locations in the Cisco 3725 Router
Figure 3 SDRAM DIMM Orientation in the Cisco 3725 Router
Removing SDRAM DIMMs
To remove SDRAM DIMMs, follow these steps:
Step 1 Attach an ESD-preventive wrist strap and ensure that it makes good contact with your skin. Connect the
equipment end of the wrist strap to the metal back plate of the chassis, avoiding contact with the
connectors.
Step 2 On the mainboard, locate SDRAM DIMM sockets 0 and 1. (See Figure 2.)
68522
1
0
Polarization notches
Connector edge
68543
Alignment holes
