Cisco 3700 series User Manual

3-10
Cisco 3700 Series Routers Hardware Installation Guide
OL-2180-08
Chapter 3 Installing the Router
Installing the Chassis Ground Connection

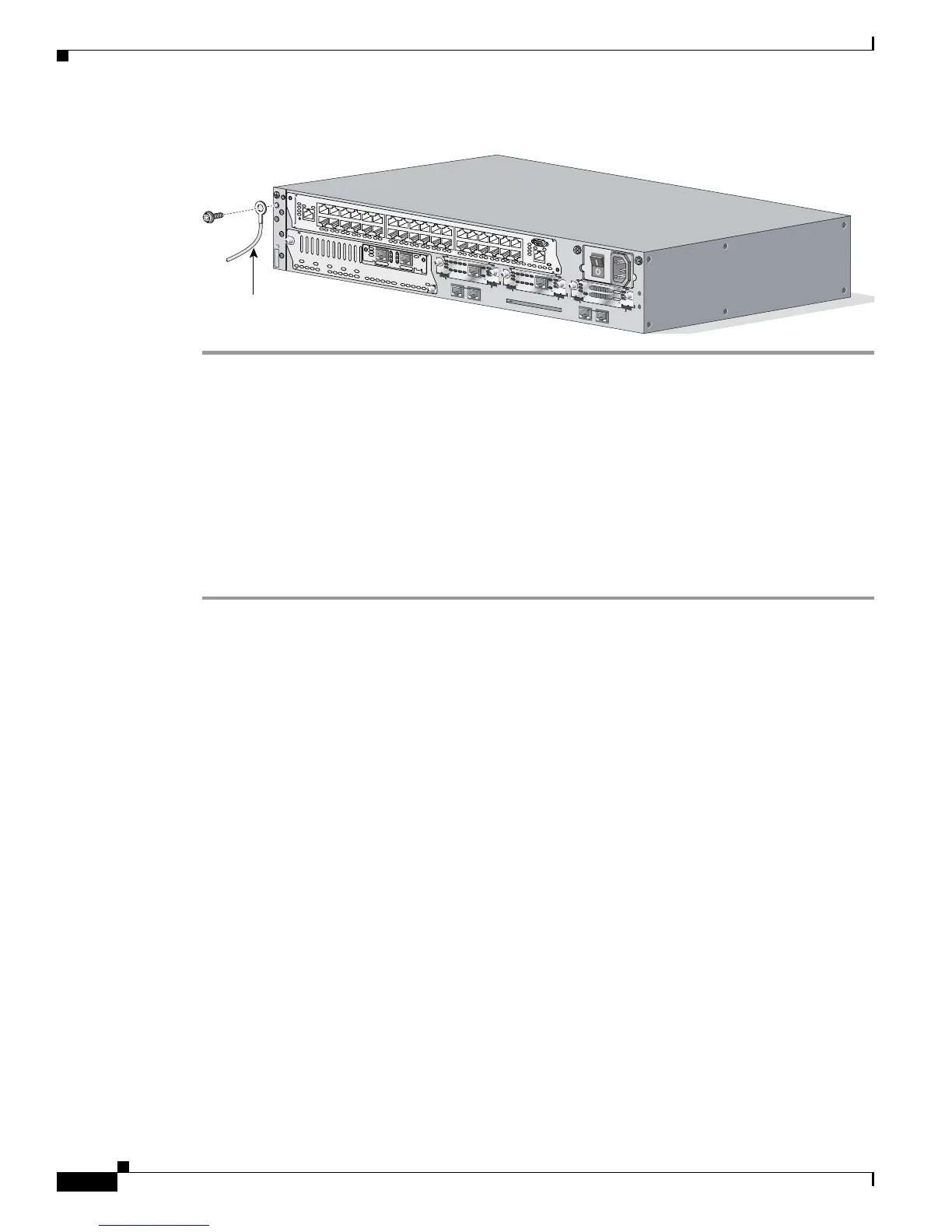

Figure 3-13 Chassis Ground Connection Using Ring Terminal on a Cisco 3725 Chassis
After the router has been installed and properly grounded, you can connect the power wiring; the WAN,
LAN, and voice cables; and the cables for administrative access as required for your installation. For
cable connection procedures, see the “Power Connections” section on page 3-11, the “Connecting WAN,
LAN, and Voice Cables” section on page 3-20, and the “Connecting to a Console Terminal or Modem”
section on page 3-22.
Cisco 3745 Router Ground Connection
To install the ground connection on a Cisco 3745 router, perform the following steps:
Step 1 Strip one end of the ground wire to the length required for the ground lug or terminal.
• For the NEBS ground lug—approximately 0.75 inch (20 mm)
• For user-provided ring terminal—as required
Step 2 Crimp the ground wire to the ground lug or ring terminal, using a crimp tool of the appropriate size.
Step 3 Attach the ground lug or ring terminal to the chassis as shown in Figure 3-14 or Figure 3-15. For a
ground lug, use the two screws with captive locking washers provided. For a ring terminal, use one of
the screws provided. Use a number 2 Phillips screwdriver, and tighten the screws to a torque of
8 to 10 in-lb (0.9 to 1.1 N-m).
Step 4 Connect the other end of the ground wire to a grounding point at your site.
103014
SEE MANUAL BEFORE INSTALLATION
AL
CD
LP
RD
TD
SEE MAN
UAL BEFORE INSTALLATION
DSU
56K
AL
CD
LP
RD
TD
SEE MANUAL BEFORE INSTALLATION
DSU
56K
EN
V0
BANK 4
BANK 3
BANK 2
BANK 1
BANK 0
NM-HDV
V
W
I
C
2
M
F
T
-
E
1
S
E
E
M
A
N
U
A
L
B
E
F
O
R
E
I
N
S
T
A
L
L
A
T
I
O
N
C
T
R
L
R
E
2
C
T
R
L
R
E
1
A
L
L
P
C
D
1
2
Ring terminal

Cisco 3700 series Specifications

General

Connectivity Technology	Wired
Operating System	Cisco IOS
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-4 to 149°F (-20 to 65°C)
Routing Protocols	BGP, OSPF, EIGRP, RIP, IS-IS
Network Management	SNMP, CiscoWorks
Security Features	ACLs, VPN, Firewall, RADIUS, TACACS+
Product Type	Network Router
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, Serial, Frame Relay, ATM
Network/Transport Protocol	TCP/IP, UDP
Remote Management Protocol	SNMP, Telnet, SSH
Features	Quality of Service (QoS)
WAN Interfaces	Serial, ISDN, Frame Relay, ATM
LAN Interfaces	Ethernet, Fast Ethernet, Gigabit Ethernet
Processor	Motorola PowerPC
Interfaces	Variety of modular interface cards including Ethernet, Fast Ethernet, Gigabit Ethernet, Serial, ISDN, ATM, and Voice/WAN Interface Cards (VICs/VWICs)
