Hardware Installation Guide for Cisco 4000 Series Integrated Services Routers
OL-32185-02
Chapter 6 Install and Upgrade Internal Modules and FRUs
Install and Remove DDR DIMMs on Cisco 4400 or 4300 Series ISRs

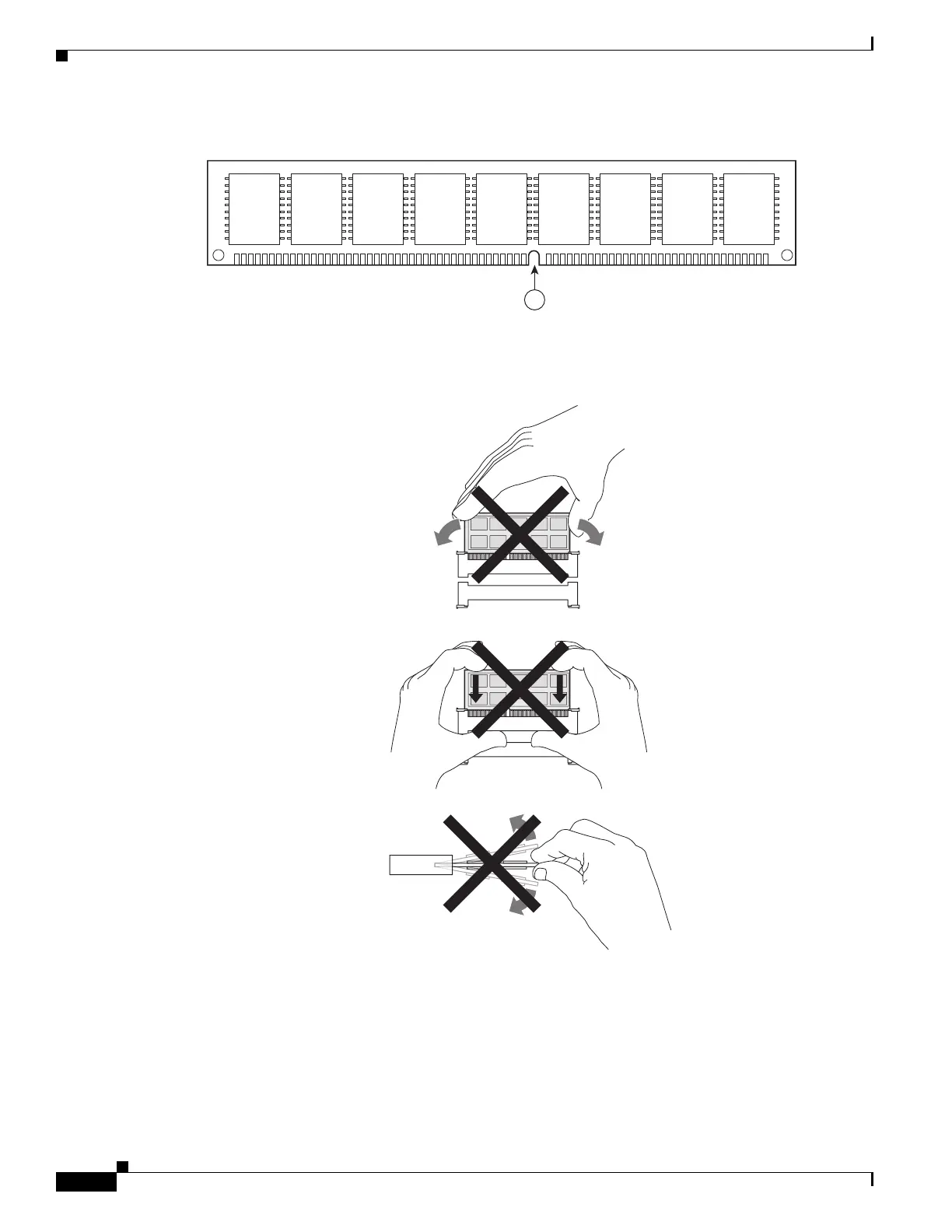

Figure 6-21 DIMM Showing Polarization Notch
Step 6
Insert the DIMM into the connector one side at a time. Figure 6-22 shows what to avoid while handling
a DIMM.
Figure 6-22 Handle the DIMMs
Step 7
Firmly press the DIMM into the connector until the latches close onto the DIMM. Ensure that both
latches rotate to the closed position against the DIMM. See Figure 6-23.
250944
1
280360
