Wall Mount Your 7800 Series Phones
Wall Mount Your Phone
Wall Mount Your 7800 Series Phones
Each wall mount is unique to your phone model and cannot be used for another phone. If you are planning
to attach your phone to a wall, purchase the wall mount kit specic to your phone. For additional information,
refer to the phone model data sheet.
Wall Mount Your 7811 Phone
Mount the wall bracket in the desired location.
1
Plug in the handset cable, then attach the phone
bracket to the rear panel of the phone.
2

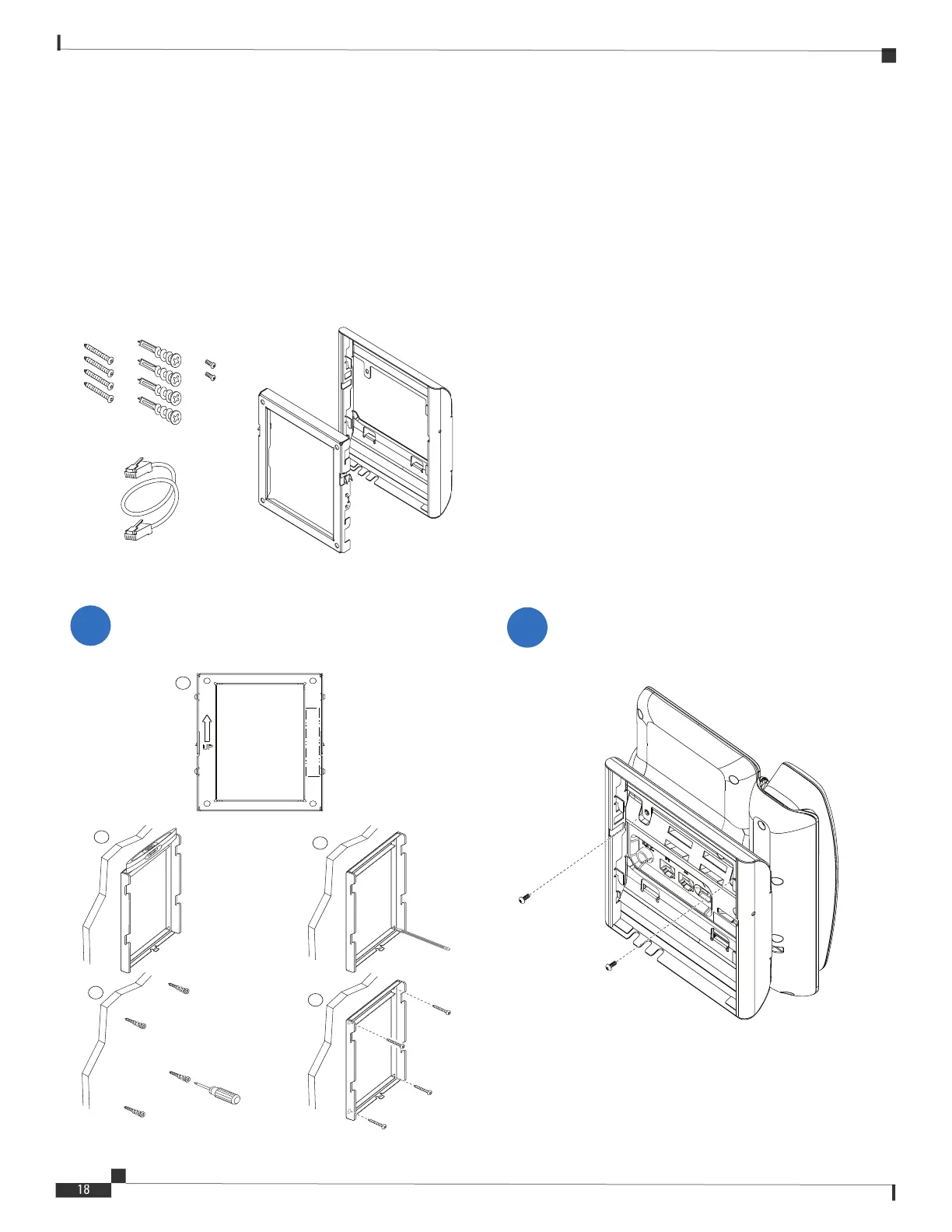

Components:
1. Four M4 x 25-mm Phillips-head screws
2. Four anchors
3. Two M3 x 7-mm Self-tapping screws
4. One wall bracket
5. One phone bracket
6. One 200-mm Ethernet cable
1 2 3
6
5
447120
4
To Next Page
