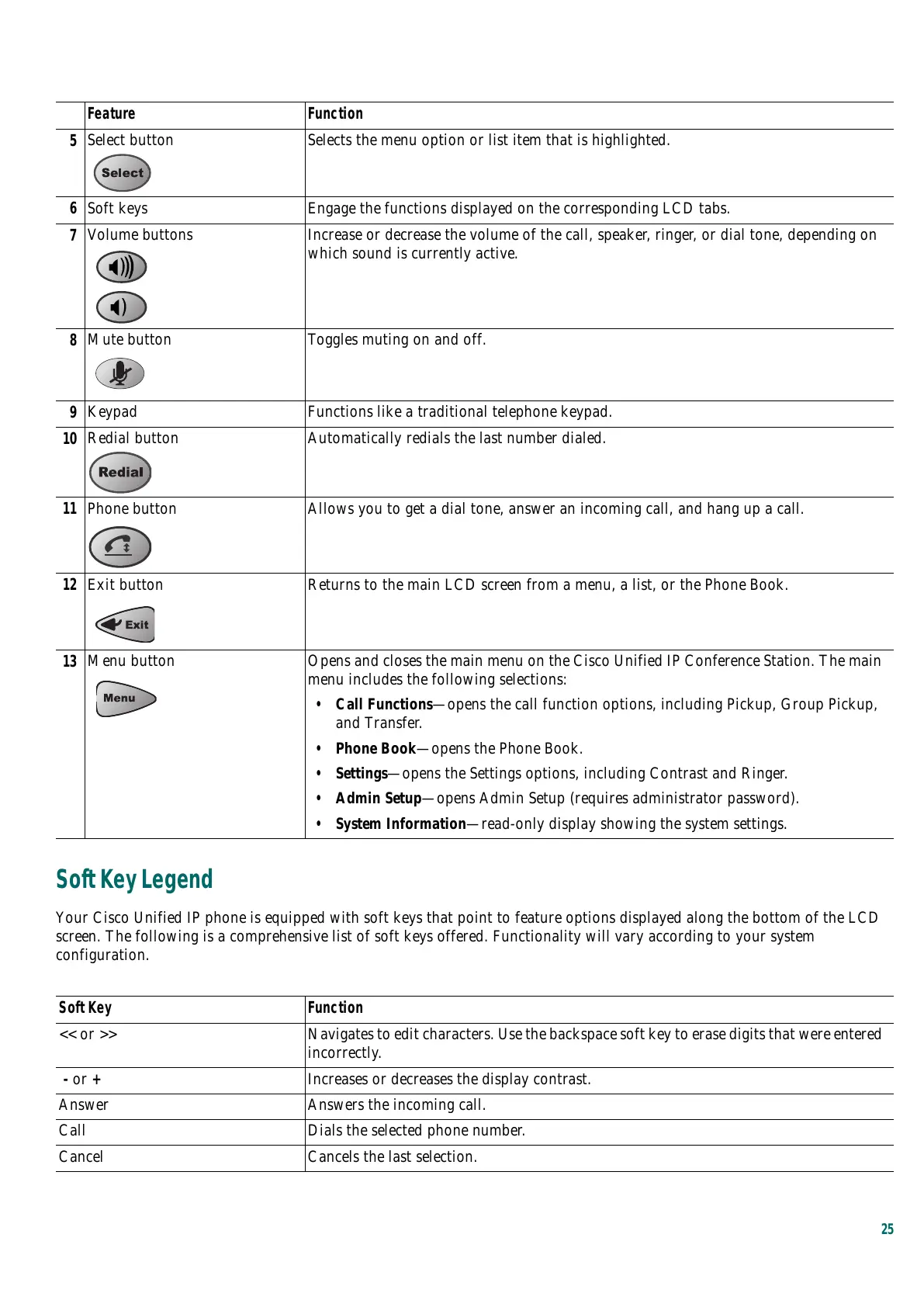

Soft Key Legend
Your Cisco Unified IP phone is equipped with soft keys that point to feature options displayed along the bottom of the LCD
screen. The following is a comprehensive list of soft keys offered. Functionality will vary according to your system
configuration.
5
Select button Selects the menu option or list item that is highlighted.
6
Soft keys Engage the functions displayed on the corresponding LCD tabs.
7
Volume buttons Increase or decrease the volume of the call, speaker, ringer, or dial tone, depending on
which sound is currently active.
8
Mute button Toggles muting on and off.
9
Keypad Functions like a traditional telephone keypad.
10
Redial button Automatically redials the last number dialed.
11
Phone button Allows you to get a dial tone, answer an incoming call, and hang up a call.
12
Exit button Returns to the main LCD screen from a menu, a list, or the Phone Book.
13
Menu button Opens and closes the main menu on the Cisco Unified IP Conference Station. The main
menu includes the following selections:
• Call Functions—opens the call function options, including Pickup, Group Pickup,
and Transfer.
• Phone Book—opens the Phone Book.
• Settings—opens the Settings options, including Contrast and Ringer.
• Admin Setup—opens Admin Setup (requires administrator password).
• System Information—read-only display showing the system settings.
Soft Key Function
<< or >> Navigates to edit characters. Use the backspace soft key to erase digits that were entered
incorrectly.
- or + Increases or decreases the display contrast.
Answer Answers the incoming call.
Call Dials the selected phone number.
Cancel Cancels the last selection.
Feature Function
To Next Page
