1-59
Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 860, 880, 890 Series

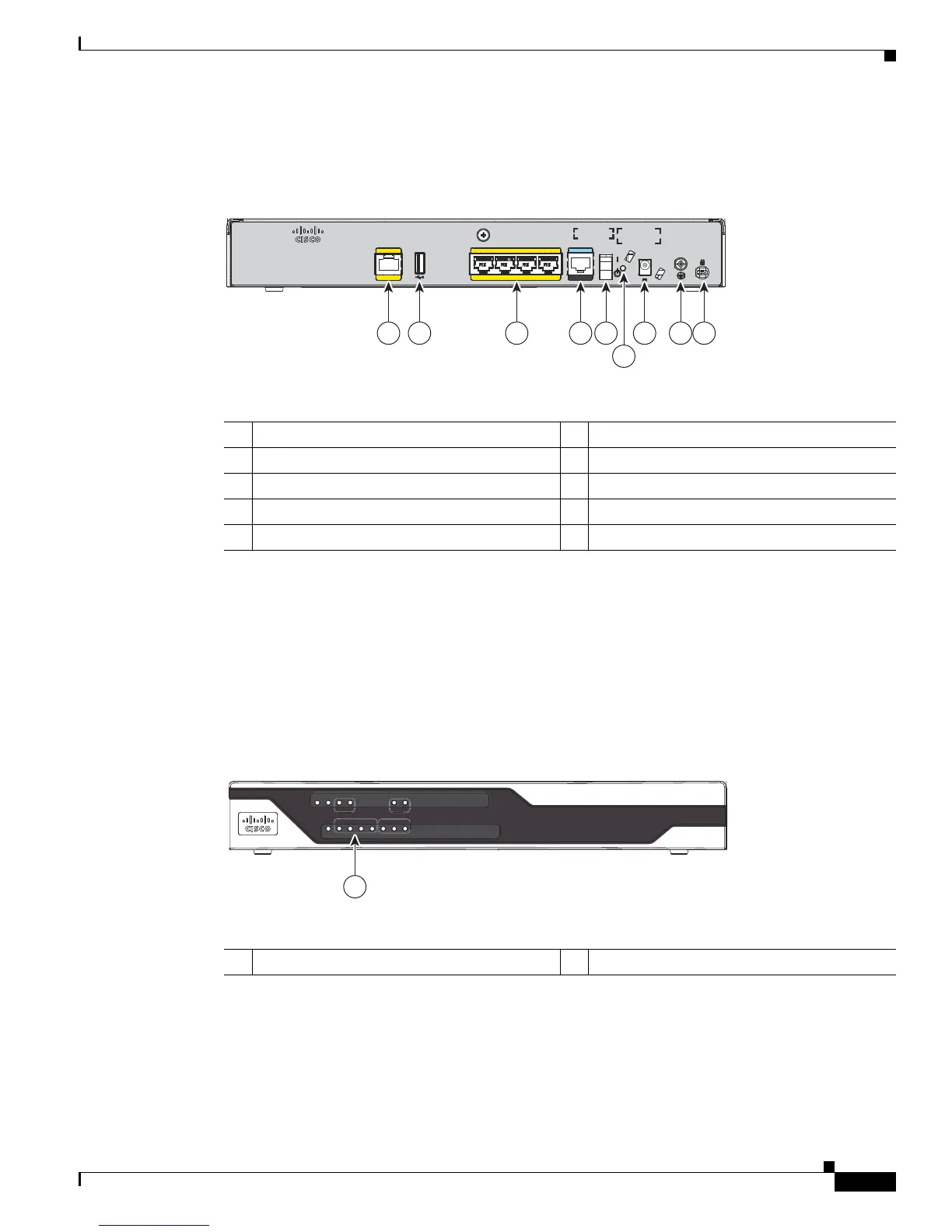

Figure 1-33 shows the back panel of the Cisco C881 Router.
Figure 1-33 Back Panel of the Cisco C881 Router
For information on installing the Cisco C880 Series Routers, see :
http://www.cisco.com/en/US/docs/routers/access/800/860-880-890/hardware/installation/guide/2Instal
l880-860.html
Cisco C886VA Router
Figure 1-34 shows the front panel of the Cisco C886VA Router.
Figure 1-34 Front Panel of the Cisco C886VA Router
For detailed description about the LEDs on the Cisco C880 Series Routers, see the “LEDs” section on
page 1-23.
0
Cisco 881
FE LAN
3210
CONSOLE
AUX
FE WAN
4
12VDC 2 .5-5A
(POE)
RESET
361125
1 2 3 4 5 7 8 9
6
1 Primary WAN port—FE 6 Reset button
2 USB port 7 Power connector
3 4-port 10/100 Ethernet switch 8 Earth ground connection
4 Serial port—Console or auxiliary 9 Kensington security slot
5 On/Off switch
361126
CiscoCisco
800
Series
OKOK
POEOE
PPPPPP
FE FE LAN
VPN
0 1 2
3
0 1
CD
CD DATA
xDSL
xDSL
ISDNISDN
LINKLINK
B1B1
B2B2
1
1 LEDs
