Cisco AS5350XM and Cisco AS5400XM Universal Gateways Card Installation Guide
78-17406-01
Chapter 3 T1 and E1 Feature Cards
Online Installation and Removal of the T1 or E1 Feature Card

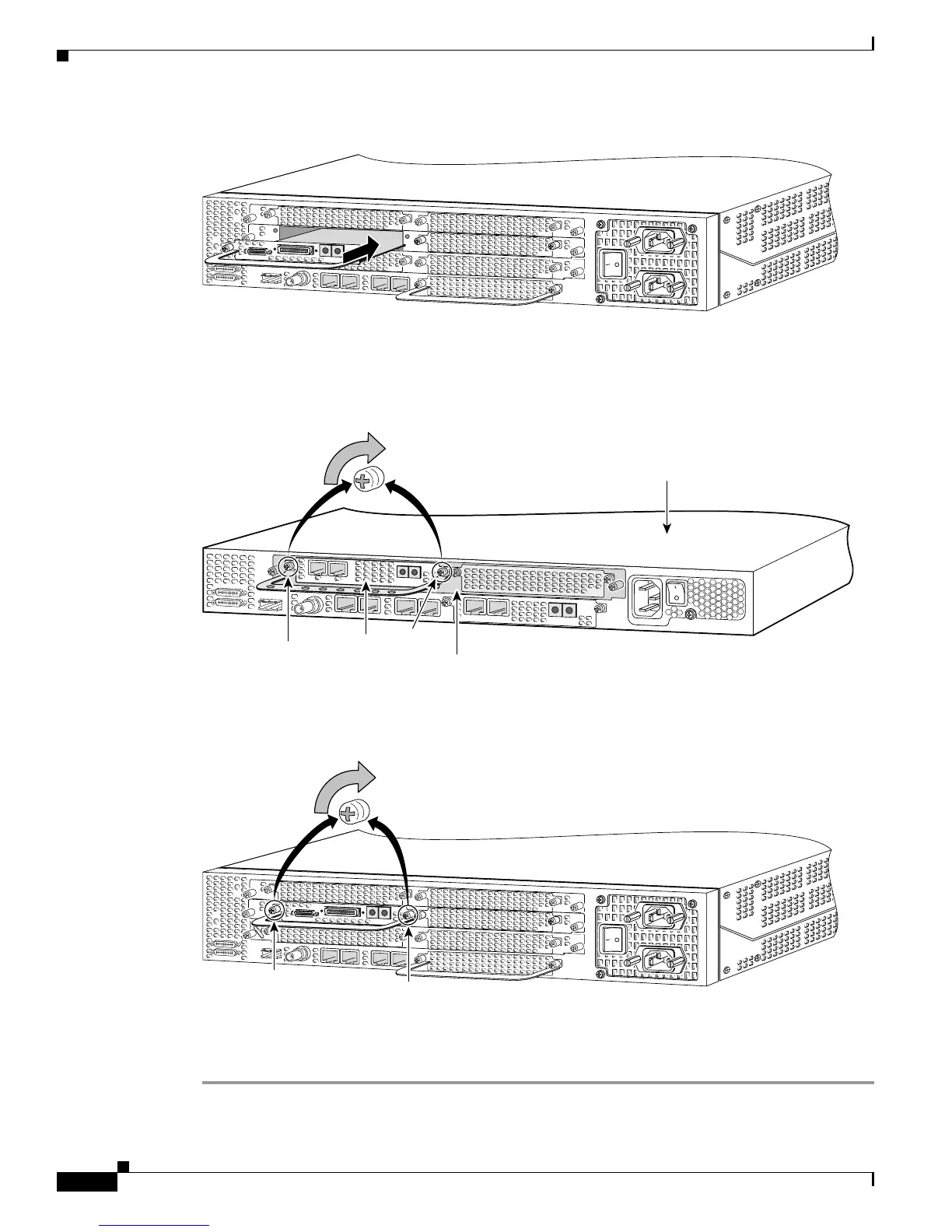

Figure 3-12 Installing the T1 or E1 Feature Card in the Cisco AS5400XM Universal Gateway
Step 3
Align the captive screws with their holes, and seat the card completely.
Step 4 Tighten the screws to secure the feature card to the chassis. (See Figure 3-13 and Figure 3-14.)
Figure 3-13 Tightening the Captive Screws on the Cisco AS5350XM Universal Gateway
Figure 3-14 Tightening the Captive Screws on the Cisco AS5400XM Universal Gateway
Step 5
Check the card LEDs to verify that the card is working properly. For information about feature card
LEDs, see Chapter 7, “Troubleshooting.”
37165
36817
0
Rx
ACT
2 PRI
OK
Tx
1
Carrier
card
DFC
Captive
screw
Captive
screw
Chassis
37163
Captive
screw
Captive
screw
