Cisco AS5350XM and Cisco AS5400XM Universal Gateways Card Installation Guide
78-17406-01
Chapter 5 Universal Port and Dial-Only Feature Cards
Online Insertion and Removal of the Universal Port or Dial-Only Feature Card

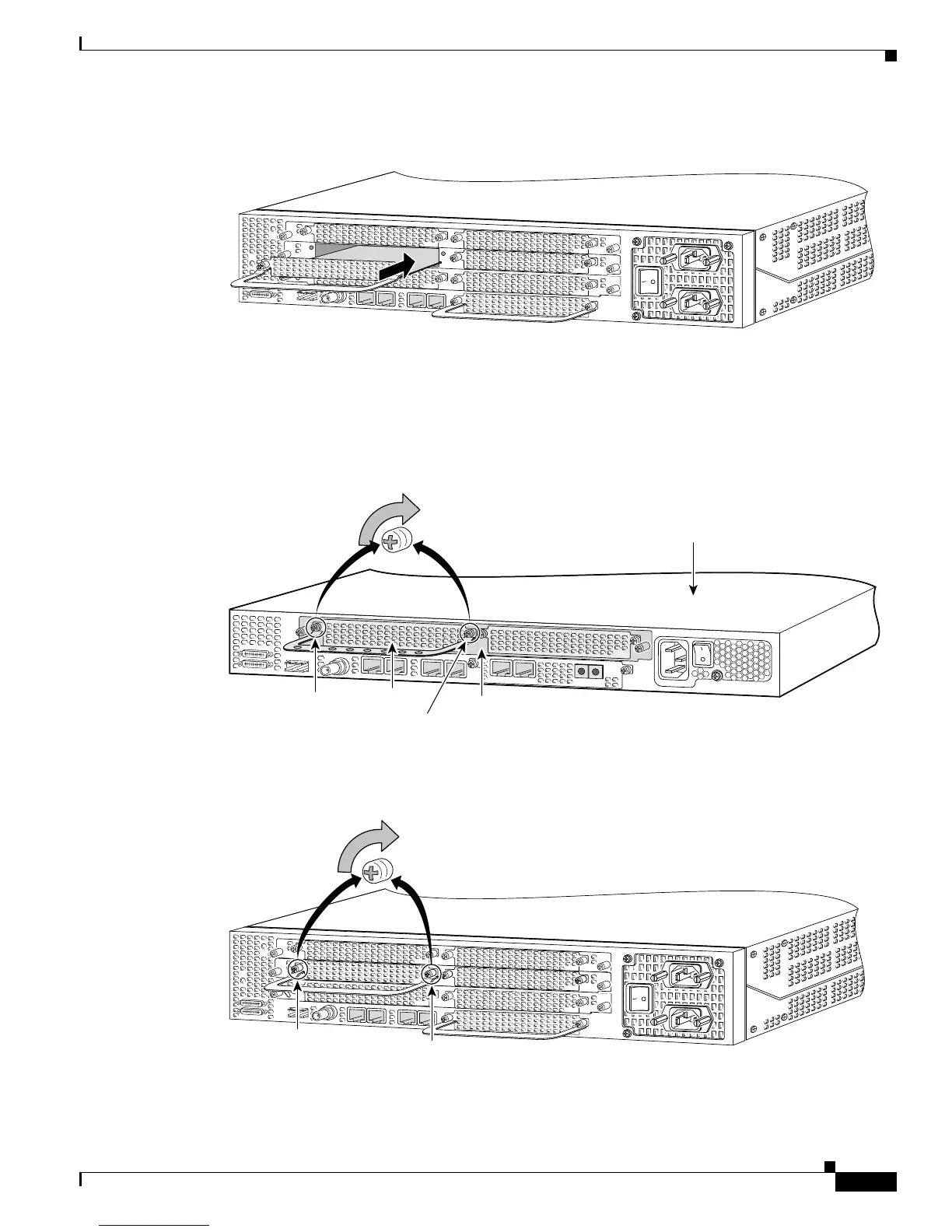

Figure 5-10 Installing the Universal Port or Dial-Only Feature Card in the Cisco AS5400XM
Universal Gateway
Step 3
Align the captive screws with their holes, and then seat the card completely.
Step 4 Seat the feature card in the carrier by pushing the card firmly until the captive screws are aligned with
their holes.
Step 5 Tighten the screws to secure the feature card to the chassis. (See Figure 5-11 and Figure 5-12.)
Figure 5-11 Tightening the Captive Screws on the Cisco AS5350XM Universal Gateway
Figure 5-12 Tightening the Captive Screws on the Cisco AS5400XM Universal Gateway
37201
36818
Carrier card
DFC
Chassis
Captive
screw
Captive
screw
37202
Captive
screw
Captive
screw
