Chapter 6 Voice Feature Card
Online Insertion and Removal of the Voice Feature Card

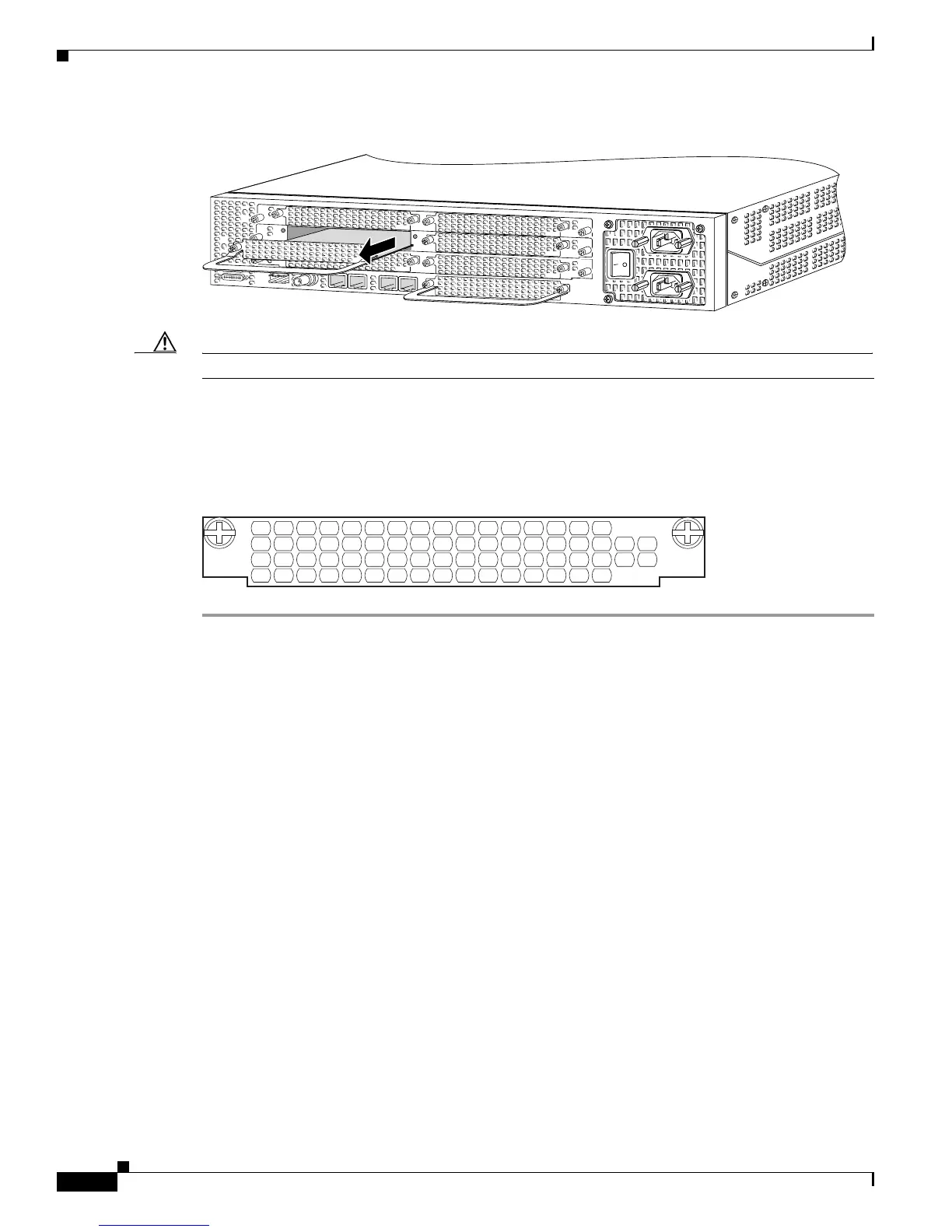

Figure 6-7 Removing a Feature Card from the Cisco AS5400XM Universal Gateway
Caution Avoid touching any pins or circuit board components when you remove or install a feature card.
Step 8 After you remove the feature card, set it aside on an ESD-preventive mat.
Step 9 If the feature card slot is to remain empty, install a blank cover over the open card slot to ensure proper
airflow inside the chassis. (See Figure 6-8.)
Figure 6-8 Blank Feature Card Cover
Online Insertion and Removal Example for the Voice Feature Card
The following output is an example of the online insertion and removal (OIR) process for a voice feature
card in slot 3 of the universal gateway:
Router# show chassis slot 3
Slot 3:
DFC type is AS5400XM AS5X-FC
OIR events:
Number of insertions = 0, Number of removals = 0
DFC State is DFC_S_OPERATIONAL
Router# busyout 3
Busyout in progress for 3
Router# show busyout 3
OIR cleanup in progress for slot 3.
Router# show busyout 3
DFC in slot 3 is powered down.
Router# show chassis slot 3
Slot 3:
DFC type is AS5400XM AS5X-FC
DFC is not powered
