Cisco ASR-920-12SZ-IM User Manual

Connecting a USB Flash Device
To connect a USB flash device to the router, insert the memory stick in the USB port labeled USB MEM. The Flash memory module
can be inserted only one way, and can be inserted or removed regardless of whether the router is powered up or not.
The following figure shows the USB port connector on the Cisco ASR 920 Series Router.

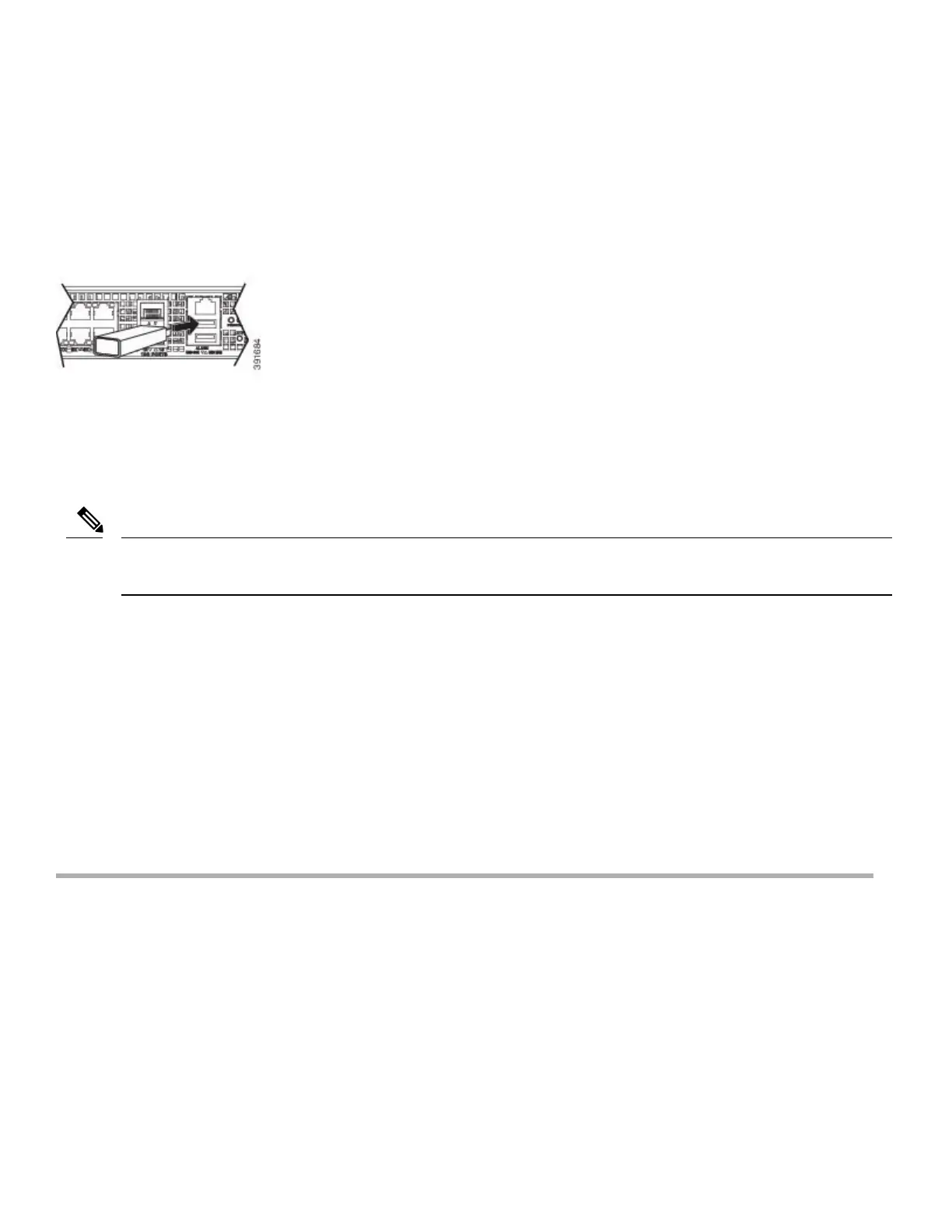

Figure 15: Flash Token Memory Stick
Configuring the Router at Startup
This section explains how to create a basic running configuration for your router.
You must acquire the correct network addresses from your system administrator or consult your network plan to determine
the correct addresses before you can complete the router configuration.
Note
Before continuing the configuration process, check the current state of the router by entering the show version command. This
command displays the release of Cisco IOS software that is available on the router.
For information on modifying the configuration after you create it, see the Cisco IOS configuration and Cisco IOS Master Command
List, All Releases guides.
To configure a Cisco ASR 920 Series Router from the console, you must connect a terminal or terminal server to the console port on
the Cisco ASR 920 Series Router. To configure the router using the management Ethernet port, you must have the router’s IP address.
Accessing the CLI Using the Console
To access the command line interface using the console, follow these steps:
Procedure
Step 1 When your system is booting, type No at the prompt.
Example:
--- System Configuration Dialog ---
Would you like to enter the initial configuration dialog? [yes/no]: no
Step 2 Press Return to enter the user EXEC mode.
The following prompt is displayed:
Example:
20

Cisco ASR-920-12SZ-IM Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Networking standards	IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000, 10000 Mbit/s
USB ports quantity	2
Ethernet LAN (RJ-45) ports	8
Product color	Gray
Rack capacity	1U
Antenna type	Not supported
AC input voltage	100 - 240 V
Power source type	AC, DC, PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	130 W
Non-operating altitude	0 - 4570 m
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Safety	UL 60950-1, 2005, CAN/CSA C22.2 No. 60950-1: 2005, IEC 60950-1, 2005, EN 60950-1, 2005, AS/NZS 60950.1:2005
Electromagnetic compatibility	FCC CFR47 Part 15 Class A
Mean time between failures (MTBF)	407230 h
Firewall	-
Security algorithms	IPSec

Weight and Dimensions

Depth	286.54 mm
Width	444.5 mm
Height	44 mm
Weight	4830 g
