Wall Mount of the Antenna

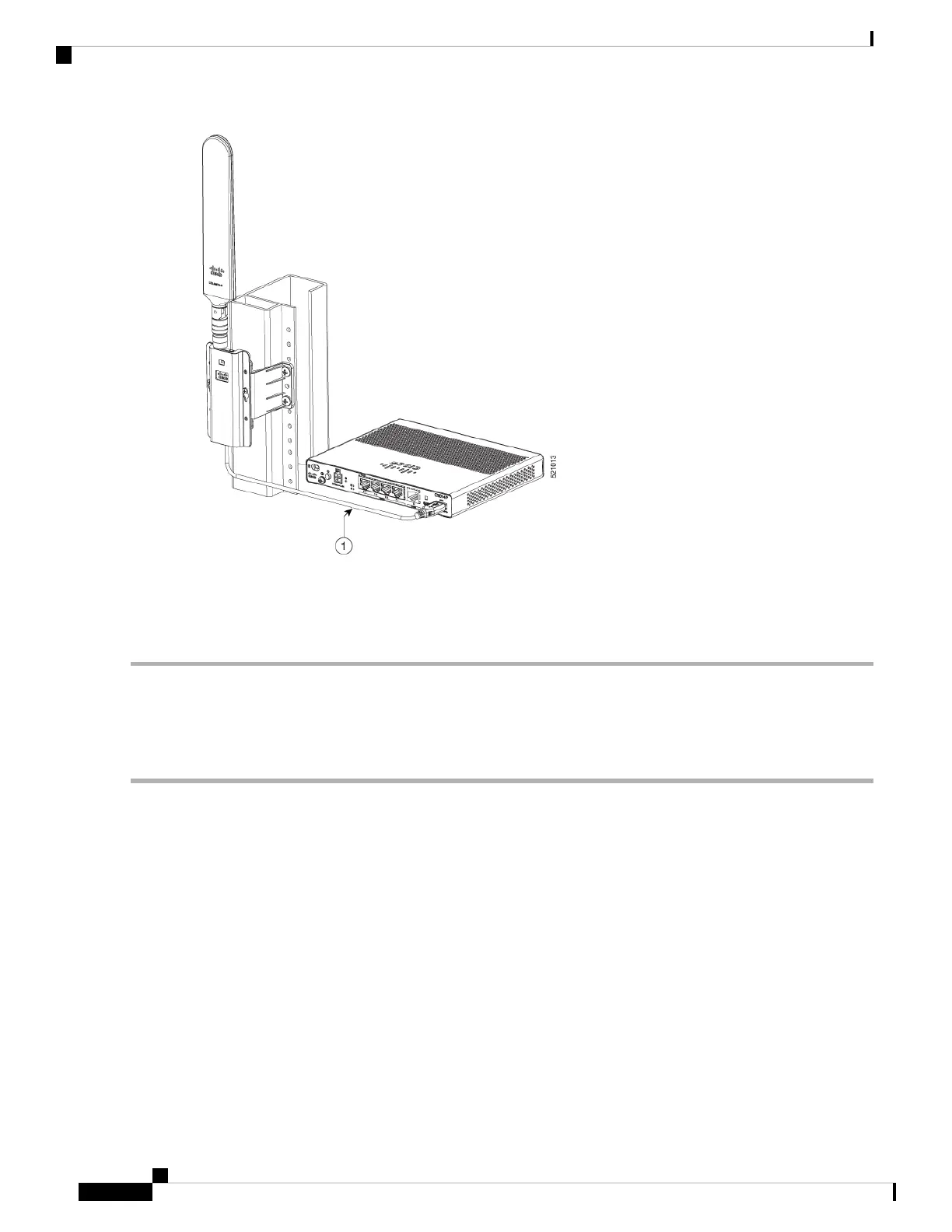

To install the antenna on a wall, do these steps:
Step 1 Pick up the C-Bracket (700-121628-01), place the bracket and then fix it on the wall using four screws.
Step 2 Assemble the USB cable (74-122795-01), dongle and antenna (07-100470-01) together. Pick up the wall-mount bracket
(700-121609-01), two SCREWS (48-0580-01). Align and fasten the screws (recommended torque is 10-12 in-lb), the
wall-mount is complete.
