• Before connecting, verify the StackWise Plus cable length. Depending on your configuration, you
might need different sized cables. If you do not specify the length of the StackWise Plus cable when
you order your product, the 1-meter cable is supplied. If you need the 0.5-meter cable or the
3-meter cable, you can order these StackWise Plus cables from your supplier:
– CAB-STK-E-0.5M= (0.5-meter cable)
– CAB-STK-E-1M= (1-meter cable)
– CAB-STK-E-3M= (3-meter cable)
Connecting a Switch Stack
Follow these steps:
Step 1 Install the member switch modules if you have not already done so.
Step 2 Remove the dust covers from the StackWise Plus cables, and store them for future use.
Step 3 Verify that cables are aligned as shown in Figure 11. (The cables are keyed for correct
insertion.)

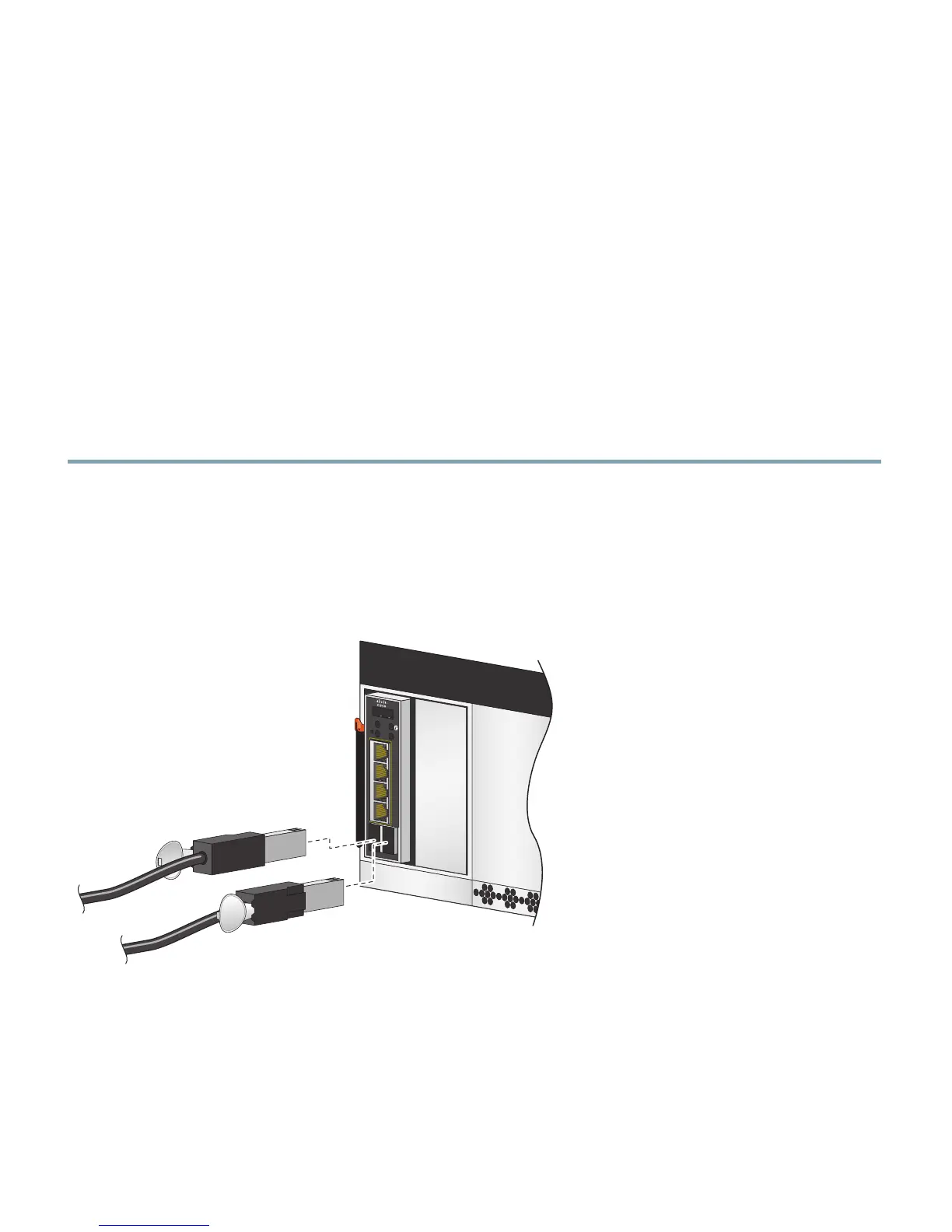

Figure 11 Connecting the StackWise Plus Cables
C
O
N
S
O
L
E
M
O
D
E
M
B
R
M
S
T
LNK
!
ACT
15
LNK
ACT
16
LNK
ACT
17
LNK
1
STAC K
2
ACT
18
201898
