Cisco IR1101 Manual

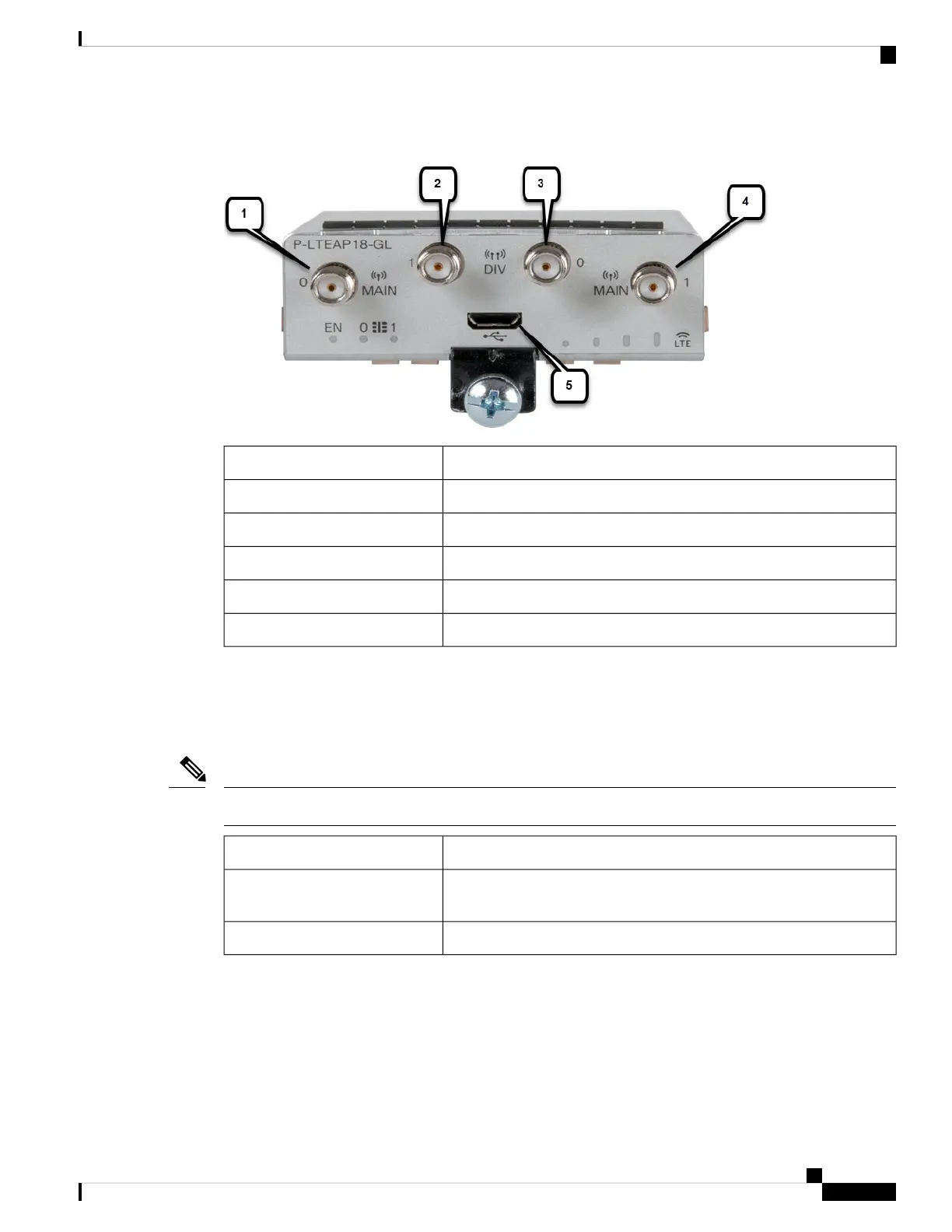

Figure 10: LTE Pluggable - P-LTEAP18-GL
DescriptionItem
Main 0 Antenna1
Diversity 1 Antenna2
Diversity 0 Antenna3
Main 1 Antenna4
Micro USB Debug Port5
Installing or replacing the SIM modules is covered in Pluggable Module
P-LTEAP18-GL Frequency Bands
The following table provides the global frequency bands available.
Antennas must be attached to the RF connectors as listed below for proper bands service.
Note
DescriptionItem
B1, B2(B25), B3, B4(B66), B5(B26,B18,B19), B8, B12(B17), B13, B14,
B20, B28, B29, B39, B71, B41
MAIN 0 and DIV 0
B7, B30, B32, B38, B40, B41, B42, B46, B48, B2(B25)MAIN 1 and DIV 1
mSATA Module
Mini-SATA, or mSATA, is a low-profile interface connector that enables more effective Serial ATA (SATA)
integration in small form-factor drives roughly the size of a business card, such as solid state disks (SSDs).
The mSATA Pluggable Module plugs into the IR-1100-SPMI Expansion Module. Figure 10 shows the
mSATA Pluggable Module.
Product Overview
11
Product Overview
mSATA Module

Cisco IR1101 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
SIM card slot	-
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1D, IEEE 802.1Q
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
USB version	2.0
USB ports quantity	2
Combo SFP ports quantity	1
Ethernet LAN (RJ-45) ports	4
Output voltage	12 - 48 V
Power source type	DC
Power consumption (typical)	9.8 W
Operating altitude	-152.4 - 1524 m
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 95 %
Safety	UL 60950-1, 2nd edition; CAN/CSA C22.2 No. 60950-1, 2nd edition, EN 60950-1, 2nd edition; CB to IEC 60950-1, 2nd edition
Flash memory	8000 MB
Storage media	Flash
Internal memory	4096 MB
Internal memory type	DRAM
Electromagnetic compatibility	47 CFR Part 15 B, EN 55032:2015, CISPR 32 Edition 2, CNS13438: 2006, EN 300 386 V1.6.1, ICES-003 Issue 6: 2016, KN 32: 2015, TCVN 7189: 2009, V-2/2015.04, V-3/2015.04, AS/NZ CISPR32, EN 61000-4-2, 3, 4, 5, 6, 8, 9, 16, 17, 18, and 29, CISPR24: 2010 + A1: 2015, EN 300 386 V1.6.1, EN 55024: 2010 + A1: 2015, EN 55035:2017, KN35: 2015, TCVN 7317:2003, QCVN 18:2014
Product color	Black
Routing protocols	BGP, EIGRP, HSRP, RIP-1, RIP-2
Data link protocols	IPv4, IPv6
Supported protocols	SCADA, DNP3, T101-104, Raw Socket TCP, UDP
Mobile network generation	Not supported
VPN support	Cisco Easy VPN Solution client and server NAT transparency Dynamic Multipoint VPN (DMVPN) Tunnel-less Group Encrypted Transport VPN Flex VPN
Firewall security	Cisco IOS
Security algorithms	256-bit AES, HTTPS, IPSec, SSL/TLS
Authentication method	Secure HTTP (HTTPS), FTP, Telnet Authentication Proxy
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	124.9 mm
Width	132.5 mm
Height	60 mm
Weight	1020 g
