10
Configuration Using the Console Interface
8-Port 10/100 Ethernet Switch with Webview
Chapter 4

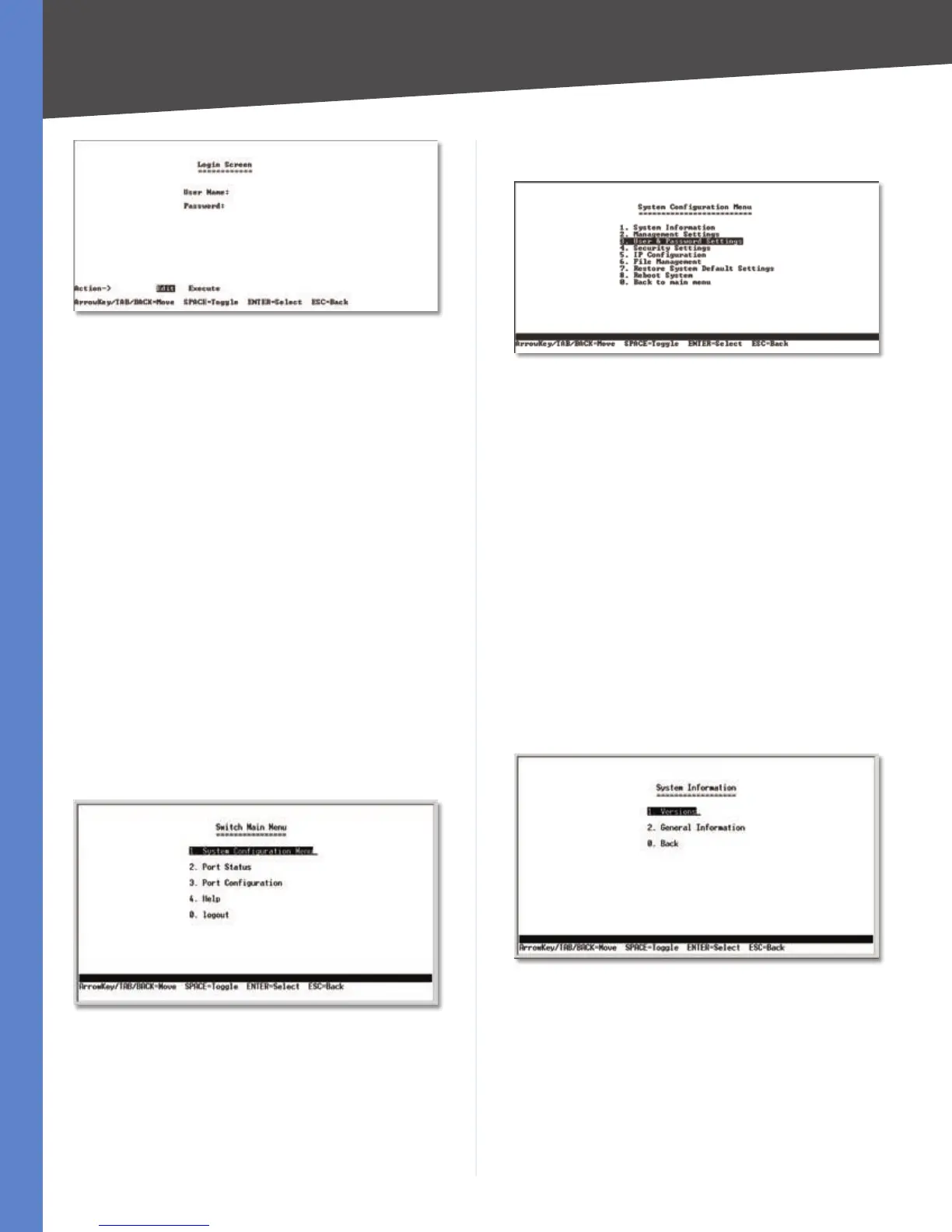

Press the Esc button and you will return to the login
screen. Use the right arrow button to navigate to Execute
and press the Enter button to enter the CLI interface.
Configuring the Switch through the
Console Interface
The console screens consist of a series of menus. Each
menu has several options, which are listed vertically. You
select a menu option when you highlight it; pressing the
Enter key activates the highlighted option.
To navigate through the menus and actions of the console
interface, use the up or down arrow keys to move up or
down, and use the left or right arrow keys to move left or
right. Use the Enter key to select a menu option, and use the
Esc key to return to the previous selection. Menu options
and any values entered or present will be highlighted. The
bottom of the screen lists the actions available.
Switch Main Menu
The Main Menu screen displays six menu choices: System
Configuration Menu, Port Status, Port Configuration, Help,
and Log Out.
Main Menu
System Configuration Menu
System Configuration Menu
System Configuration Menu options:
System Information1.
Management Settings2.
User and Password Settings3.
Security Settings4.
IP Configuration5.
File Management6.
Restore System Default Settings7.
Reboot System8.
0. Back to Main Menu.
System Information
From the System Information screen you can check current
firmware versions and other general switch information.
System Information
