Cisco Linksys SRW208P User Manual

Chapter 5
Advanced Configuration
33
8-Port 10/100 Ethernet Switch with Webview
The MAC Based ACL screen allows a MAC based ACL to be
defined. ACEs can be added only if the ACL is not bound
to an interface.
ACL Name Displays the user-defined MAC based ACLs.
New ACL Name Specifies a new user-defined MAC based
ACL name.
Delete ACL Deletes the selected ACL.
Action Indicates the ACL forwarding action. Possible field
values are:
Permit • Forwards packets which meet the ACL
criteria.
Deny • Drops packets which meet the ACL criteria.
Shutdown • Drops packet that meet the ACL criteria,
and disables the port to which the packet was
addressed.
Source MAC Address Matches the source MAC address
to which packets are addressed to the ACE.
Wildcard Mask Defines the source IP address wildcard
mask. Wildcard masks specify which bits are used and
which bits are ignored. A wild card mask of 255.255.255.255
indicates that no bit is important. A wildcard of 0.0.0.0
indicates that all the bits are important. For example, if the
source IP address 149.36.184.198 and the wildcard mask
is 255.36.184.00, the first eight bits of the IP address are
ignored, while the last eight bits are used.
Dest. MAC Address Matches the destination MAC
address to which packets are addressed to the ACE.
Wildcard Mask Defines the destination IP address
wildcard mask.
VLAN ID Matches the packet’s VLAN ID to the ACE. The
possible field values are 2 to 4094.
Ether Type Specifies the packet’s Ethernet type.
The Add to List button adds the configured MAC Based
ACLs to the MAC Based ACL Table at the bottom of the
screen.

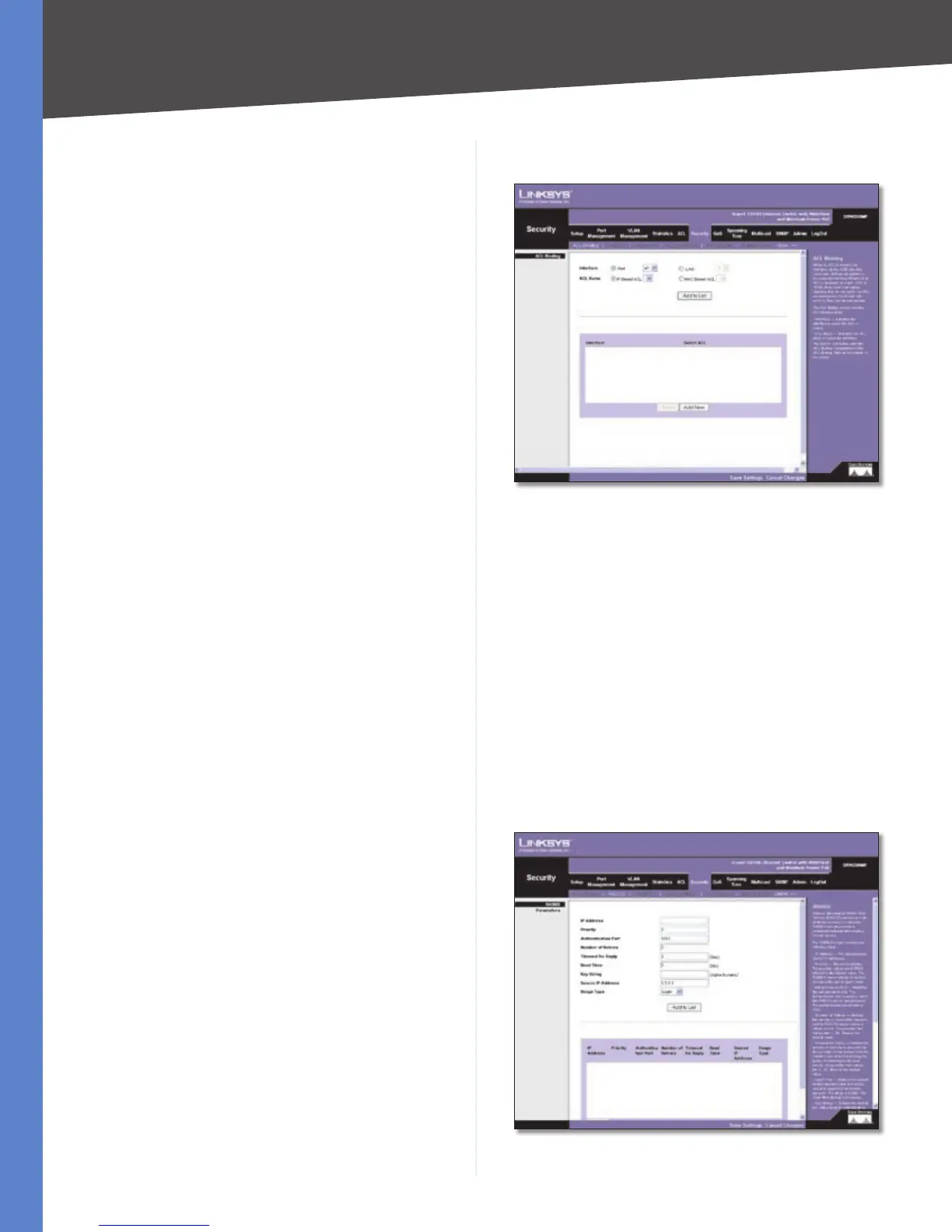

Security > ACL Binding
Security > ACL Binding
When an ACL is bound to an interface, all the ACE rules that
have been defined are applied to the selected interface.
Whenever an ACL is assigned on a port or LAG, flows
from that ingress interface that do not match the ACL are
matched to the default rule, which is Drop unmatched
packets.
Interface Indicates the interface to which the ACL is
bound.
ACL Name Indicates the ACL which is bound to the
interface.
The Add to List button adds the ACL Binding configuration
to the ACL Binding Table at the bottom of the screen.
Security > RADIUS
Security > RADIUS
