Configuration Using the Console Interface
8-Port 10/100 Ethernet Switch with Webview
Chapter 4
File Management

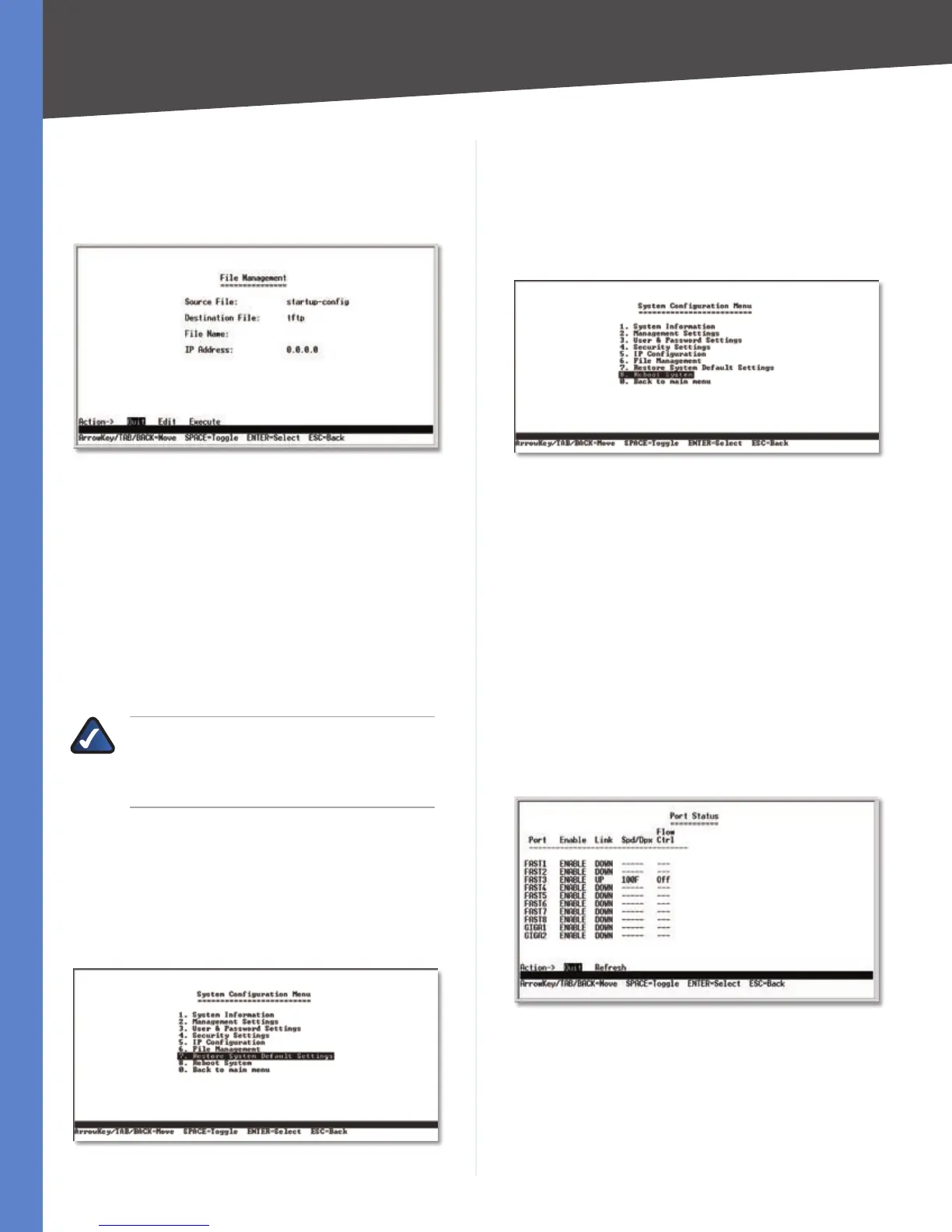

The File Management screen allows you to upload or
download files, such as the startup configuration, boot, or
image file, using a TFTP server.
Select Edit to change the settings. When your changes
are complete, press the Esc key to return to the Action
menu, and select Execute to upload or download the
designated file. After you download a new image file, the
device should be rebooted.
If you are downloading a new boot image, please follow
these steps:
Download the new boot code. DO NOT RESET THE 1.
DEVICE.
Download the new software image. 2.
Reset the device now.3.
NOTE: When downloading a configuration file,
be sure that it is a valid configuration file. If
you have edited the file, ensure that only valid
entries have been configured.
Restore System Default Settings
To restore the Switch back to the factory default settings,
select Restore System Default Settings and press the
Enter key. You will be asked if you want to continue. Press
the y key to restore the Switch’s default settings, or press
the n key to cancel.
Restore Default
Reboot System
Select Reboot System and press the Enter key if you
want to restart the Switch. You will be asked if you want to
continue. Press the y key to reboot the Switch, or press the
n key to cancel. After the Switch has rebooted, the Switch
Main Menu screen will appear.
Reboot System
Back to Main Menu
Select Back to Main Menu if you want to return to the
main menu.
Port Status
On the Switch Main Menu screen, select Port Status
and press the Enter key if you want to view the status
information for the Switch’s ports.
The Port Status screen displays the port numbers, their
status, Link status, speed and duplex mode, and status of
flow control, which is the flow of packet transmissions.
If you want to change any settings for a port, you must use
the Port Configuration screen.
Port Status
Port Configuration
On the Switch Main Menu screen, select Port Configuration
and press the Enter key if you want to configure the
Switch’s ports.
To Next Page
