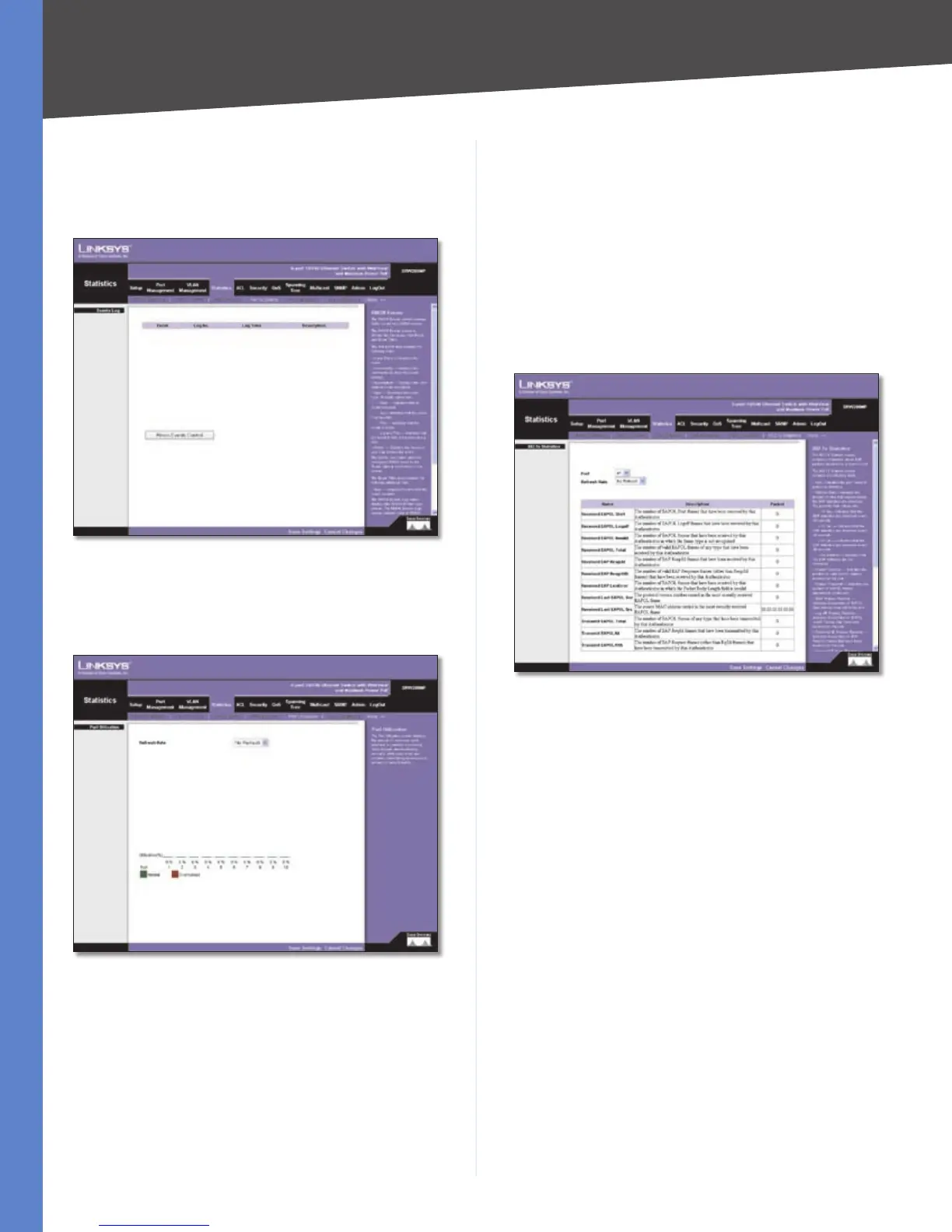

Chapter 5
Advanced Configuration
30
8-Port 10/100 Ethernet Switch with Webview
The Add to List button adds the configured RMON event
to the Event Table at the bottom of the screen.
The Event Table area contains the following additional
field:
Statistics > Events Log
Time Displays the time that the event occurred.
Statistics > Port Utilization
Statistics > Port Utilization
The Port Utilization screen displays the amount of resources
each interface is currently consuming. Ports in green are
functioning normally, while ports in red are currently
transmitting an excessive amount of network traffic.
Refresh Rate Indicates the amount of time that passes
before the port utilization statistics are refreshed. The
possible field values are:
No Refresh • Indicates that the statistics are not
refreshed.
15 Sec • Indicates that the statistics are refreshed every
15 seconds.
30 Sec • Indicates that the statistics are refreshed every
30 seconds.
60 Sec • Indicates that the statistics are refreshed every
60 seconds.
Statistics > 802.1x Statistics
The 802.1X Statistics screen contains information about
EAP packets received on a specific port.
Statistics > 802.1x Statistics
Port Indicates the port, which is polled for statistics.
Refresh Rate Indicates the amount of time that passes
before the EAP statistics are refreshed. The possible field
values are:
No Refresh • Indicates that the EAP statistics are not
refreshed.
15 Sec • Indicates that the EAP statistics are refreshed
every 15 seconds.
30 Sec • Indicates that the EAP statistics are refreshed
every 30 seconds.
60 Sec • Indicates that the EAP statistics are refreshed
every 60 seconds.
Name Displays the measured 802.1x statistic.
Description Describes the measured 802.1x statistic.
Packet Displays the amount of packets measured for the
particular 802.1x statistic.
