Chapter 5: Configuring the Switch through the Web Utility
Port Tab
24-port 10/100 + 2-Port Gigabit Switch with WebView
Port Tab
This tab allows you to view the status of a port. The Port, Enable, Link Status, Spd/Dpx, and Flow Control are
displayed.
Click Click here to configure Speed/Duplex of each Port, which is located at the bottom of the screen, to
configure the ports.
Port Configuration
This screen allows you to change the status of a port.Select the port, then select Enable or Disable to enable or
disable the port you want to configure. For the Speed/Duplex, enter 10 Half, 10 Full, 100 Half, 100 Full, or Auto
(turns Auto MDI/MDIX on or off). For Flow Control, select On to control the flow of the packet transmission or Off.
Click Apply when finished with your changes.

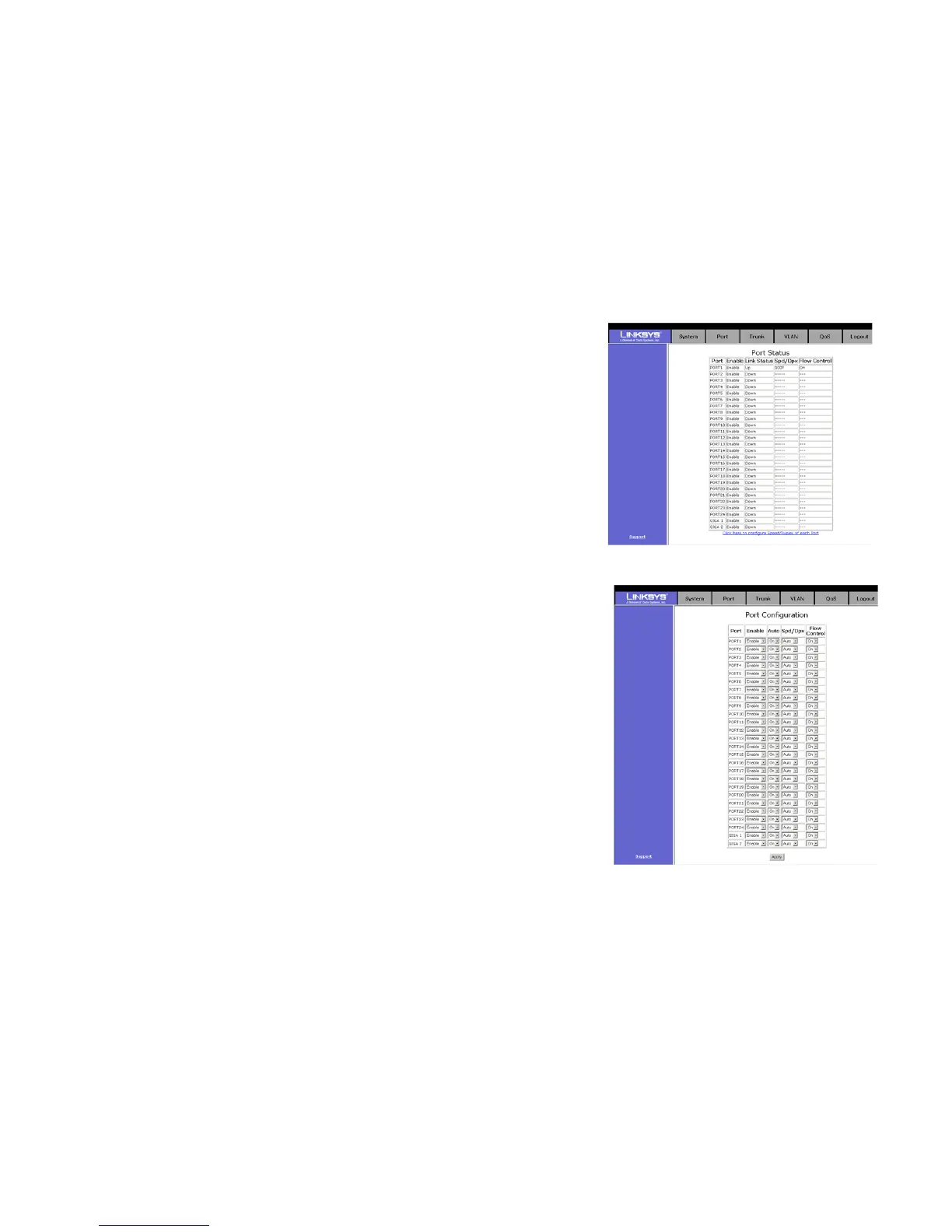

Figure 5-8: Port Tab-Port Configuration
Figure 5-7: Port Tab-Port Status
