CKD PPX Series User Manual

PPX Series

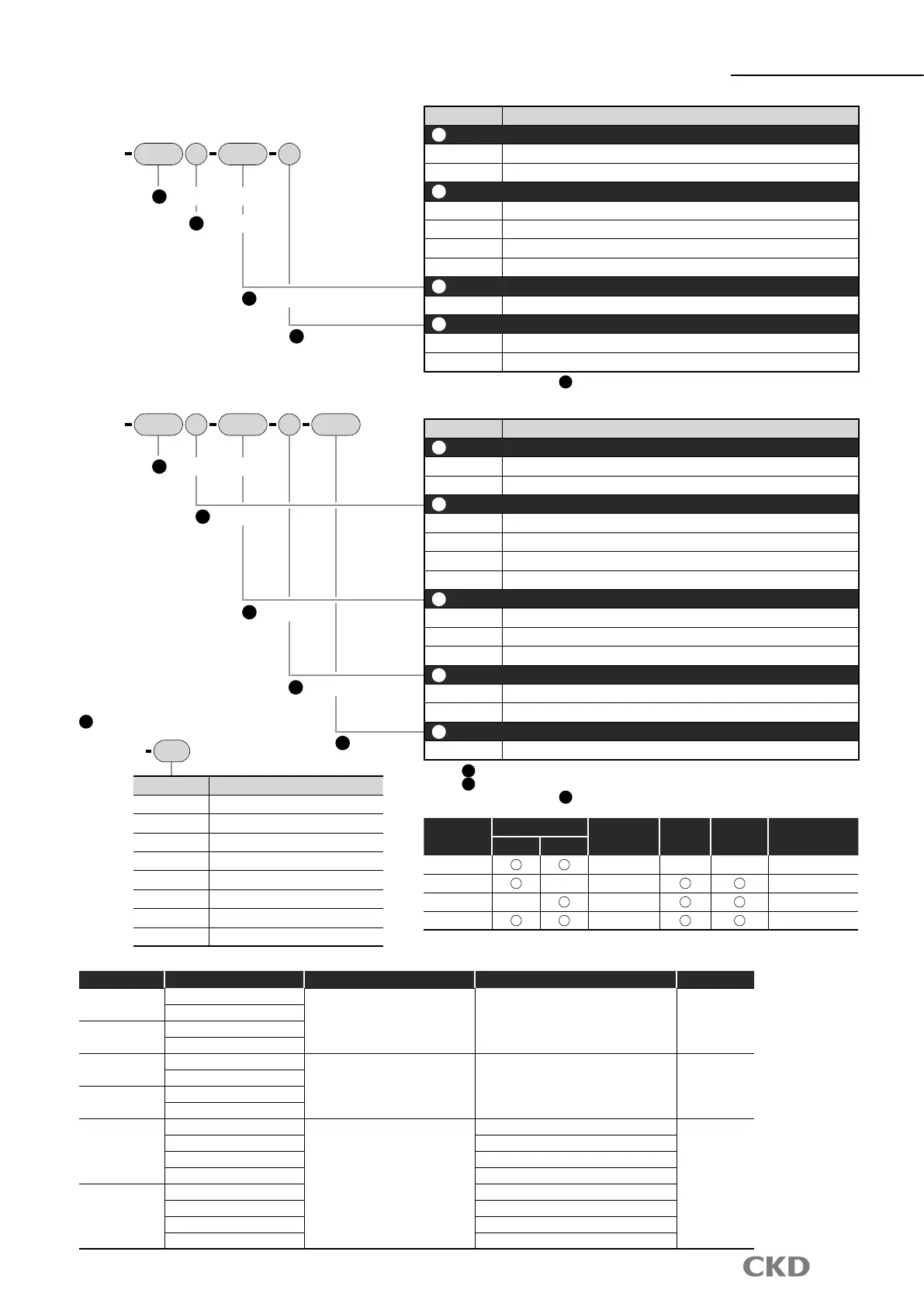

How to order
<How to order for domestic market>
How to order
<How to order for foreign markets>
With the new Measurement Law, the product with the unit change function for foreign markets cannot be used in Japan.
Note 1:
B
output type "N" or "NH" is only available.
Note 2:
B
output type "P" or "PH" is only available.
Note 3: It is available only if
B
output type "N" or "P" is selected.
Destination
Switch output
Unit
Unit
change
Unit seal label to
be attached Note 1
Piping port
NPN PNP
Domestic
kPa/MPa − − R1/8(M5)
Asia − kPa/MPa R1/8(M5)
Europe − kPa/MPa G1/8(M5)
North America
kPa/MPa NPT1/8(M5)
Note 1: Refer to page 24 for the unit seal label to be attached.
PPX C1
Discrete option model no.
Symbol Descriptions
C1 Cable with connector 1m
C2 Cable with connector 2m
C3 Cable with connector 3m
C5 Cable with connector 5m
CN Connector set (10 pcs. per set)
KL Bracket (set screw attached)
KHS Panel bracket
KCB
Front protective cover (when panel bracket used)
<Table 1>
Type Model no. Port size Output type Remarks
Standard type
PPX-R01N-6M-(J)-KA
M5 female thread +R (PT) 1/8
male thread
NPN transistor and open collector For Asia
PPX-R10N-6M-(J)-KA
High function type
PPX-R01NH-6M-KA
PPX-R10NH-6M-KA
Standard type
PPX-R01P-6G-(J)-KA
M5 female thread +G1/8 male
thread
PNP transistor and open collector For Europe
PPX-R10P-6G-(J)-KA
High function type
PPX-R01PH-6G-KA
PPX-R10PH-6G-KA
Standard type
PPX-R01N-6N-(J)-KA
M5 female thread +NPT1/8 male
thread
NPN transistor and open collector
For North
America
PPX-R01P-6N-(J)-KA PNP transistor and open collector
PPX-R10N-6N-(J)-KA NPN transistor and open collector
PPX-R10P-6N-(J)-KA PNP transistor and open collector
High function type
PPX-R01NH-6N-KA NPN transistor and open collector
PPX-R01PH-6N-KA PNP transistor and open collector
PPX-R10NH-6N-KA NPN transistor and open collector
PPX-R10PH-6N-KA
PNP transistor and open collector
Note 1: It is available only if
B
output type "N" or "P" is selected.
Symbol Descriptions
Pressure range
R01 -100.0 to 100.0kPa
R10 -0.100 to 1.000MPa
Output type
N NPN transistor output 2 point (standard type)
P PNP transistor output 2 point (standard type)
NH
NPN transistor output 1 point + analog voltage/current output or external input (high function type)
PH
PNP transistor output 1 point + analog voltage/current output or external input (high function type)
Piping shape
6M R1/8, M5 female thread
Connector cable
Blank With 2m connector cable
J Note 1 Without connector cable
Symbol Descriptions
Pressure range
R01 -100.0 to 100.0kPa
R10 -0.100 to 1.000MPa
Output type
N NPN transistor output 2 point (standard type)
P PNP transistor output 2 point (standard type)
NH
NPN transistor output 1 point + analog voltage/current output or external input (high function type)
PH
PNP transistor output 1 point + analog voltage/current output or external input (high function type)
Piping shape
6M Note 1 R1/8, M5 female thread
6N NPT1/8, M5 female thread
6G Note 2 G1/8, M5 female thread
Connector cable
Blank With 2m connector cable
J Note 3 Without connector cable
Unit change
KA With unit change function
A
B
C
D
A
B
C
D
E
PPX N 6MR01
Connector cable
D
Pressure range
A
Output type
B
Piping shape
C
PPX N KA6MR01
Unit change
E
Pressure range
A
Output type
B
Piping shape
C
Connector cable
D
2
