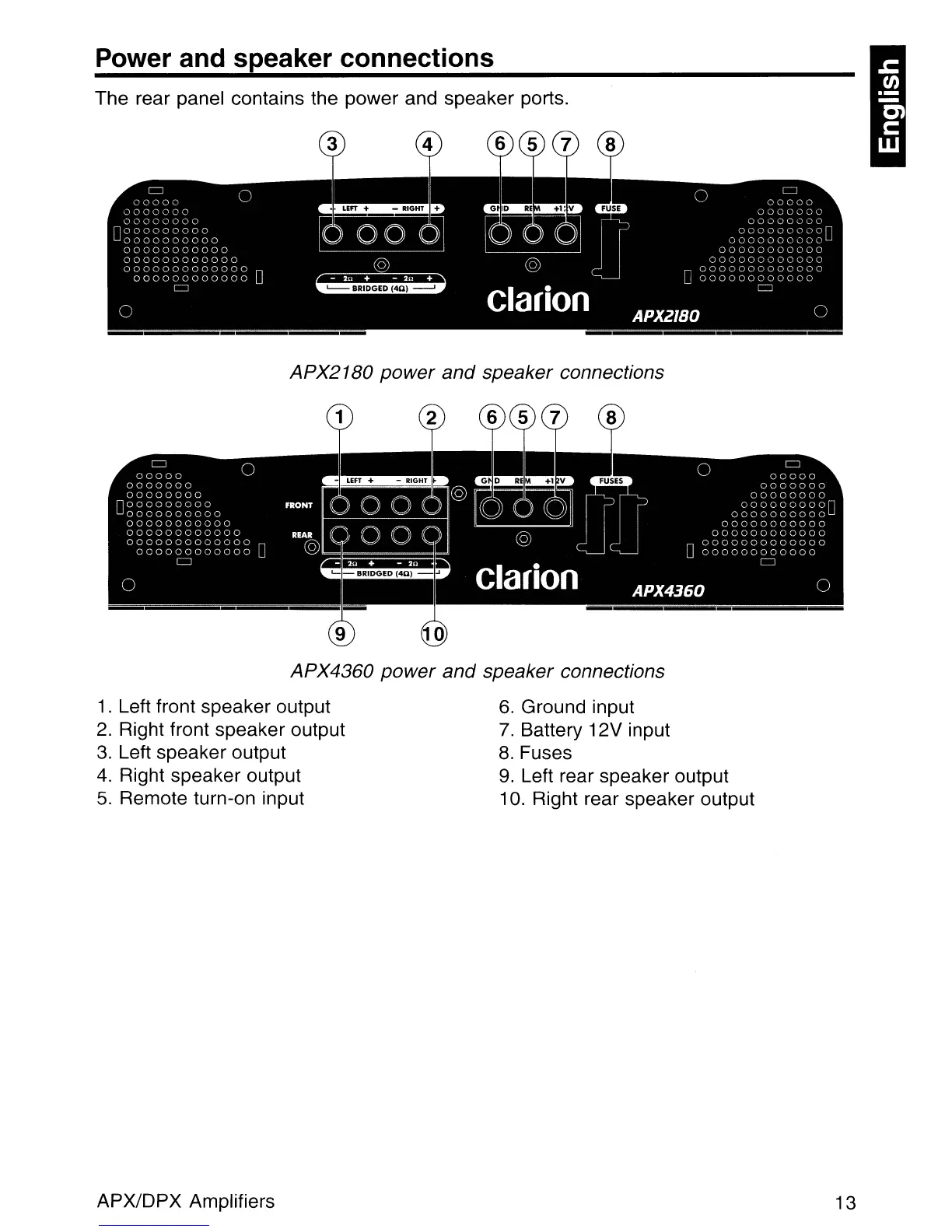

Power and speaker connections
The rear panel contains the power and speaker ports.
APX2180 power and speaker connections
APX4360 power
and
speaker connections
1. Left front speaker output
2.
Right front speaker output
3.
Left speaker output
4.
Right speaker output
5.
Remote turn-on input
APX/OPX Amplifiers
6.
Ground input
7.
Battery 12V input
8.
Fuses
9.
Left rear speaker output
10. Right rear speaker output
13
Power and speaker connections
The rear panel contains the power and speaker ports.
APX2180 power and speaker connections
APX4360 power
and
speaker connections
1. Left front speaker output
2.
Right front speaker output
3.
Left speaker output
4.
Right speaker output
5.
Remote turn-on input
APX/OPX Amplifiers
6.
Ground input
7.
Battery 12V input
8.
Fuses
9.
Left rear speaker output
10. Right rear speaker output
13
