Clarion CZ300 User Manual

29
English
• Connecting to the external amplier
External ampliers can be connected to the 4 channel RCA output connections.
Ensure that the connectors are not grounded or shorted to prevent damage to the
unit.

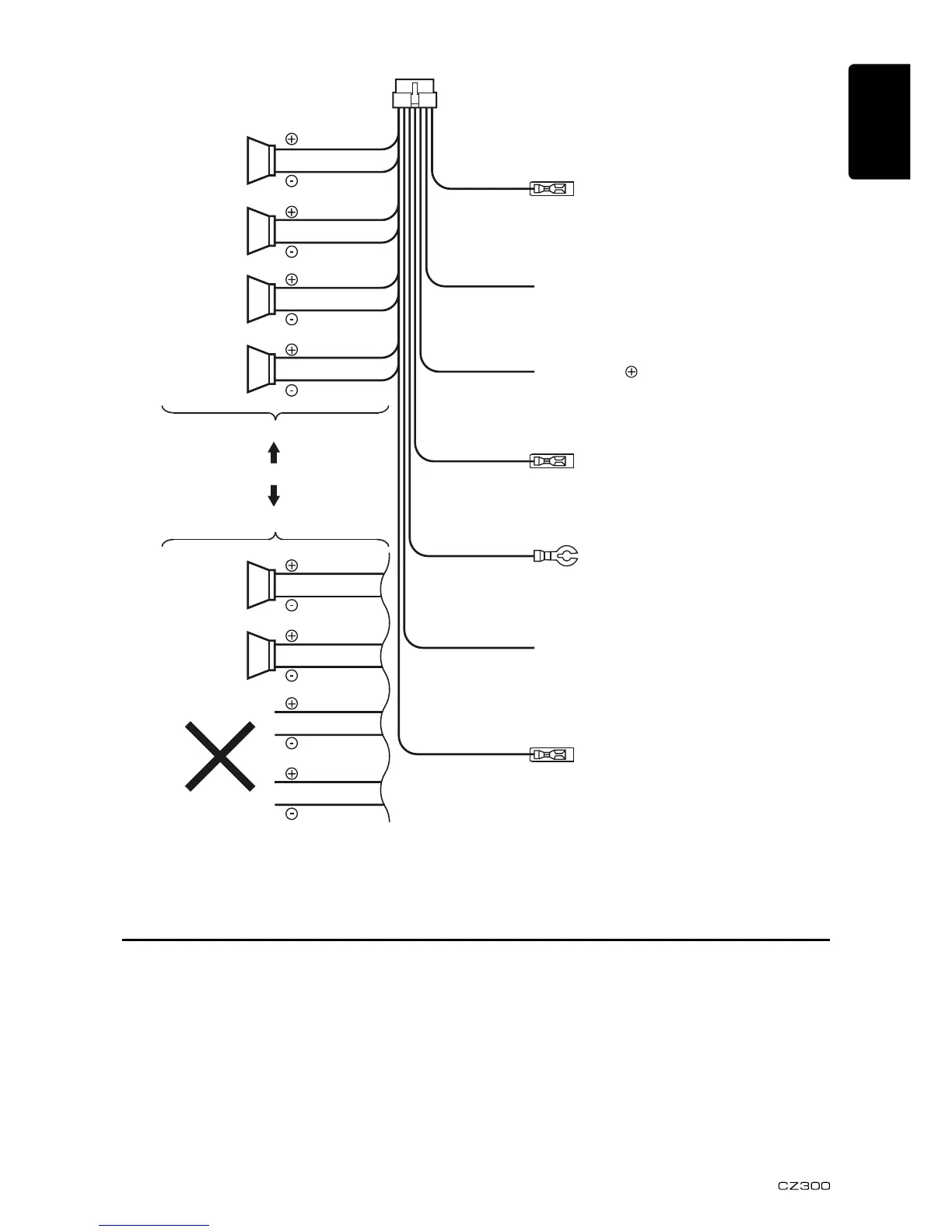

8) Connecting the Accessories
Front right
Front left
Rear right
Rear left
Gray
Gray/Black
White
White/Black
Purple
Purple/Black
Green
Green/Black
4-speaker system
2-speaker system
or
Front right
Front left
Not used.
Insulate each wire
Gray
Gray/Black
White
White/Black
Purple
Purple/Black
Green
Green/Black
16-pin connector extension lead
(attached to the source unit)
Brown wire (Phone mute lead)
Connect to cellular phone mute lead.
Yellow wire (Memory back-up lead)
Connect directly to battery
Red wire (Power lead)
Accessory
12 V
Blue/White wire (Amplier turn-on lead)
Connect to remote turn-on lead of amplier
Black wire (Ground lead)
Connect to vehicle chassis ground
Orange/White wire (Illumination lead)
Connect it to the car power supply terminal for
illumination
Blue wire (Auto antenna lead)
Connect it to the car power supply terminal for
antenna
