English

•Connectingtotheexternalamplier

External ampliers can be connected to the 4 channel RCA output connections.

Ensure that the connectors are not grounded or shorted to prevent damage to the

unit.

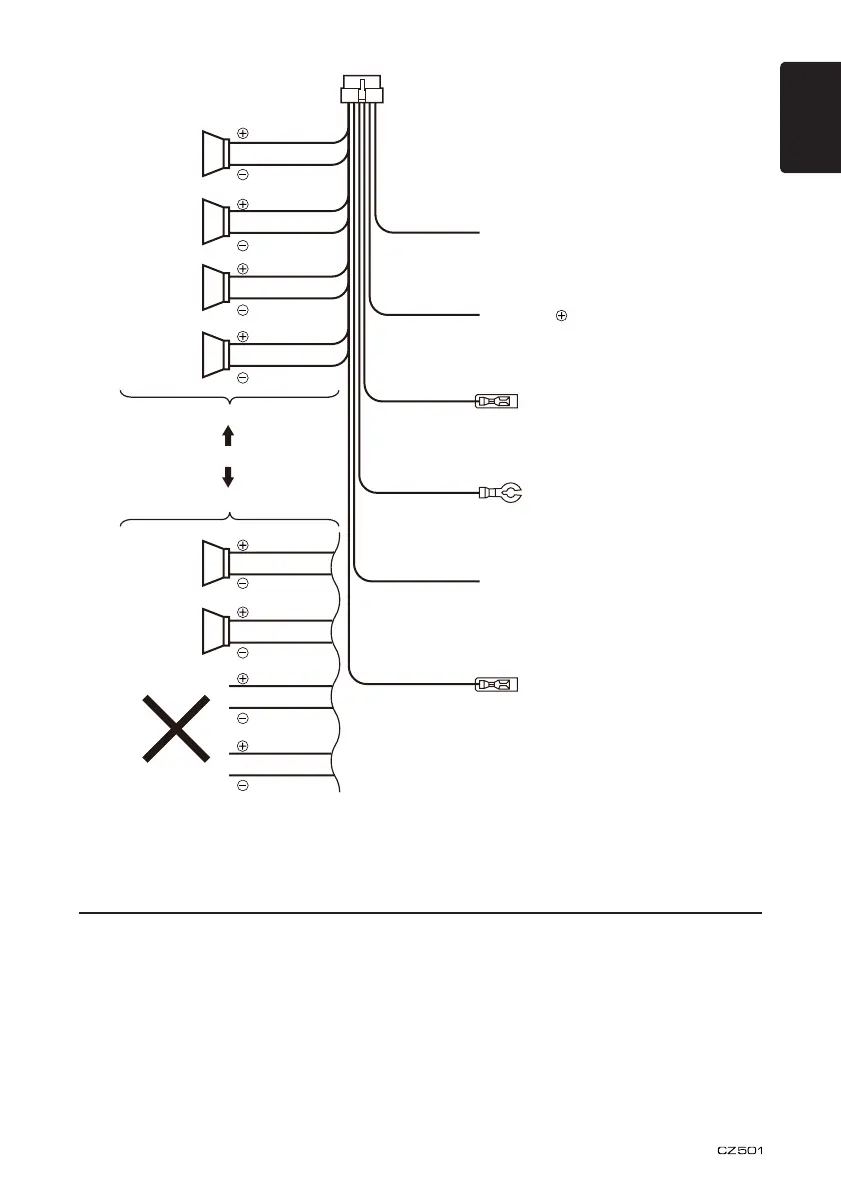

8) ConnectingtheAccessories

16-Pin Connector Extension Lead

(attached to the source unit)

Yellow wire (Memory back-up lead)

Red wire (Power lead)

Blue/White wire (Amplier turn-on lead)

Black wire (Ground lead)

Orange/White wire (Illumination lead)

Blue wire (Auto antenna lead)

Connect to remote turn-on lead of amplier

Connect to vehicle chassis ground

Connect it to the car power supply terminal

for illumination

Connect it to the car power supply terminal

for antenna

Connect directly to battery

Accessory

12V

Front Right

Gray

White

Purple

Green

Gray/Black

White/Black

Purple/Black

Green/Black

4-Speaker system

2-Speaker system

Rear Right

Rear Left

Not used.

Insulate each wire

Front Left

CMB1525194A(Z501) manual.indb 32 2010-11-26 15:51:07
