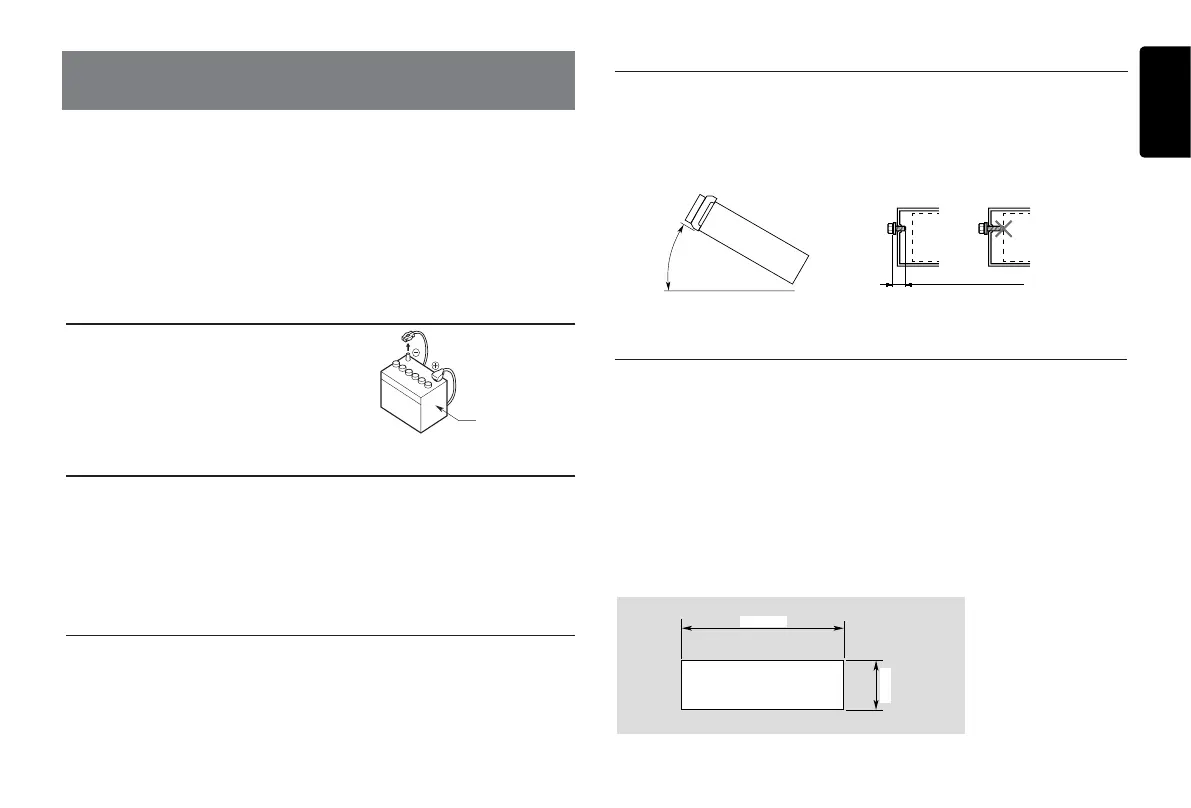

9. INSTALLATION / WIRE
CONNECTION GUIDE
1) Before Starting
1. This set is exclusively for use in cars with a
negative ground 12 V power supply.
2. Read these instructions carefully.
3. Be sure to disconnect the battery “terminal” before
starting. This is to prevent short circuits during
installation. (Figure 1)
2) Package Contents
3) General Cautions
1. Do not open the case. There are no
user serviceable parts inside. If you drop
anything into the unit during
installation, consult your dealer or an
authorized Clarion service center.
2. Use a soft, dry cloth to clean the case.
Never use a rough cloth, thinner,
benzine, or alcohol etc. For tough dirt,
apply a little cold or warm water to a soft
cloth and wipe off the dirt gently.
CONTENTS
1) Before Starting ................................................................................. 15
2) Package Contents ............................................................................ 15
3) General Cautions ............................................................................. 15
4) Cautions on Installation .................................................................... 15
5) Installing the Source Unit ................................................................. 15
6) Removing the Source Unit ............................................................... 16
7) Wiring and Connections ................................................................... 17
8) Connecting the accessories ............................................................. 18
Car battery
Figure 1
Source unit ..................................................1
Front panel ..................................................1
Trim ring ......................................................1
Mounting bracket .........................................1
Screws M4x5 mm ........................................ 1
Screws M5x6 mm ........................................ 4
L-key ............................................................2
Wire connector ............................................1
Remote control unit (with battery)................1
Owner’s manual...........................................1
Strap ............................................................1
Special screw (Front panel lock) .................1
DCP case ....................................................1
4) Cautions on Installation
1. Prepare all articles necessary for
installing the source unit before
starting.
2. Install the unit within 30° of the
horizontal plane. (Figure 2)
3. If you have to do any work on the car
body, such as drilling holes, consult
your car dealer beforehand.
4. Use the enclosed screws for
installation.
Using other screws can cause
damage.
(Figure 3)
5) Installing the Source Unit
1. Place the mounting bracket into the instrument panel, use a screwdriver to bend
each stopper of the mounting bracket inward, then secure the stopper.
2. Wire as shown in Section 7) .
3. Insert the source unit into the mounting bracket until it locks.
4. Take care of the top and bottom of the trim ring and mount it so that all the hooks
are locked.
Notes:
1. Some car models require special mounting kits for proper installation.
Consult your Clarion dealer for details.
2. Fasten the front stopper securely to prevent the source unit from coming loose.
• Console opening dimensions
(182 mm)
53 mm
Hole
Max 30
˚
Chassis Chassis
Damage
Max. 6 mm (M5 screw)
Figure 2 Figure 3
