Clarion DB265MP Service Manual
4
of 1
of 1 rating
20 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
S719
IR701
D701
LCD702
IC702
IC701
C706
1
CCT701
C701
C702
C703
C704
R702
R712
D710
D707
R714
R715
PL701
PL702
D702
R704
R703
R718
R717
J702
1
12
D712
D709
C707
17
33
49
T
o J1 of Main PWB(B1) (page 15)
PRINTED

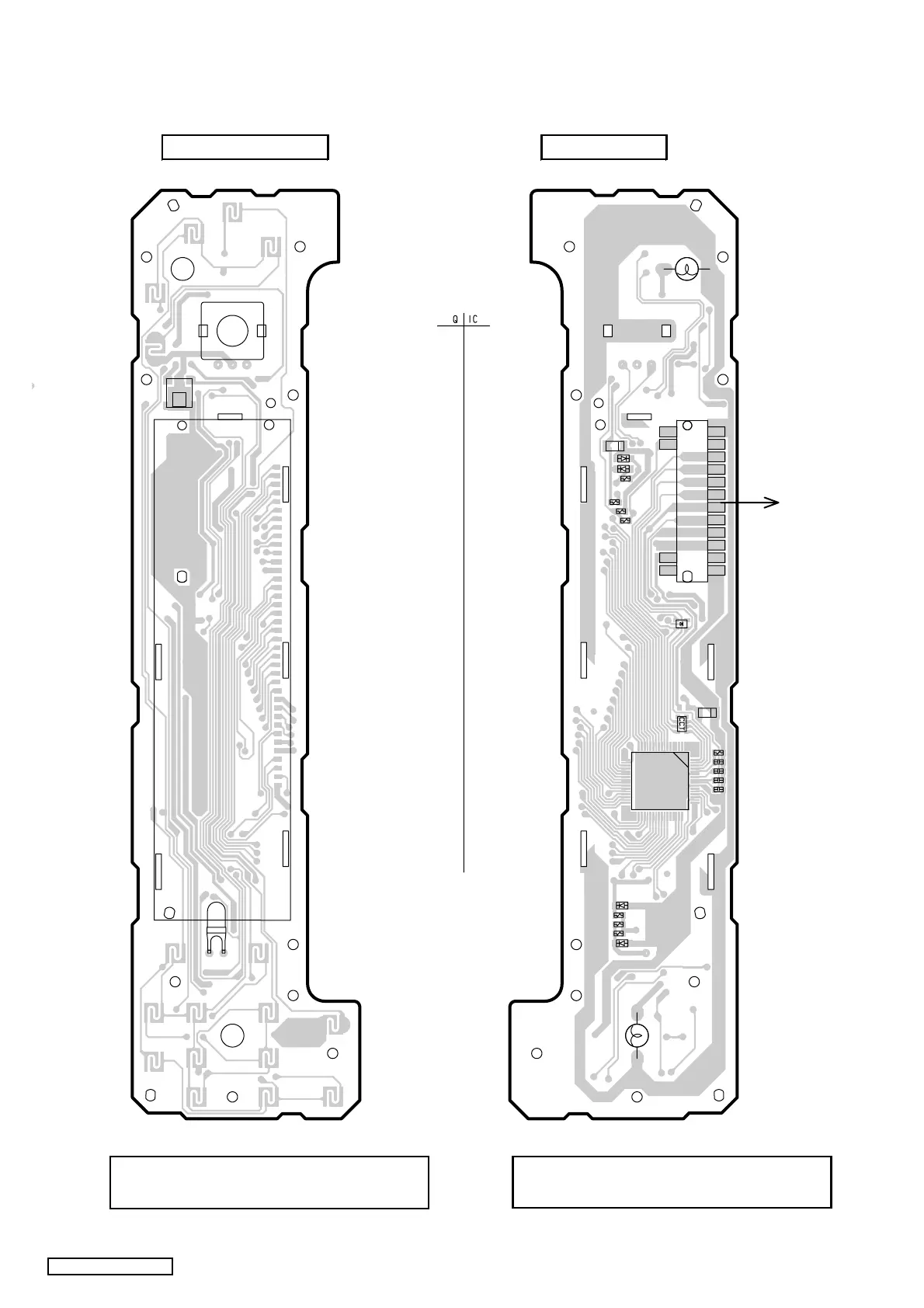

WIRING BOARD 1/4
Switch PWB(B2) section
COMPONENT SIDE
SOLDER SIDE
Caution:
COMPONENT SIDE: Parts on the component side seen
from the component side are indicated.
Caution:
SOLDER SIDE: Parts on the solder side seen
from the solder side are indicated.
-12-
DB265MP/DB266MP
11
13
Table of Contents
Specifications
1
To Engineers in Charge of Repair or Inspection of Our Products
2
Troubleshooting
3
Error Displays
3
Explanation of IC
4
Block Diagram
5
Exploded View
6
Parts List
6
Main Section
7
Electrical Parts List
9
Printed Wiring Board
12
Component Side
12
Solder Side
12
Circuit Diagram
13
