Clevo W170HN User Manual

Disassembly
Removing the Keyboard 2 - 15
2.Disassembly
Removing the Keyboard
1. Turn off the computer and remove the battery (page 2 - 5).
2. Remove the screws
- and use a screwdriver to carefully push out the top cover module at point (Figure
11a).
3. Remove the top cover module (Figure 11b) and the screws - (Figure 11c).
4. Carefully lift the keyboard
up, being careful not to bend the keyboard ribbon cable (Figure 11d).
5. Disconnect the keyboard ribbon cable from the locking collar socket (Figure 11d).
6. Carefully lift up the keyboard (Figure 11e) off the computer.

4. Top cover module
10. Keyboard
•7 Screws
1
2
3
4
5
9
10
11
12

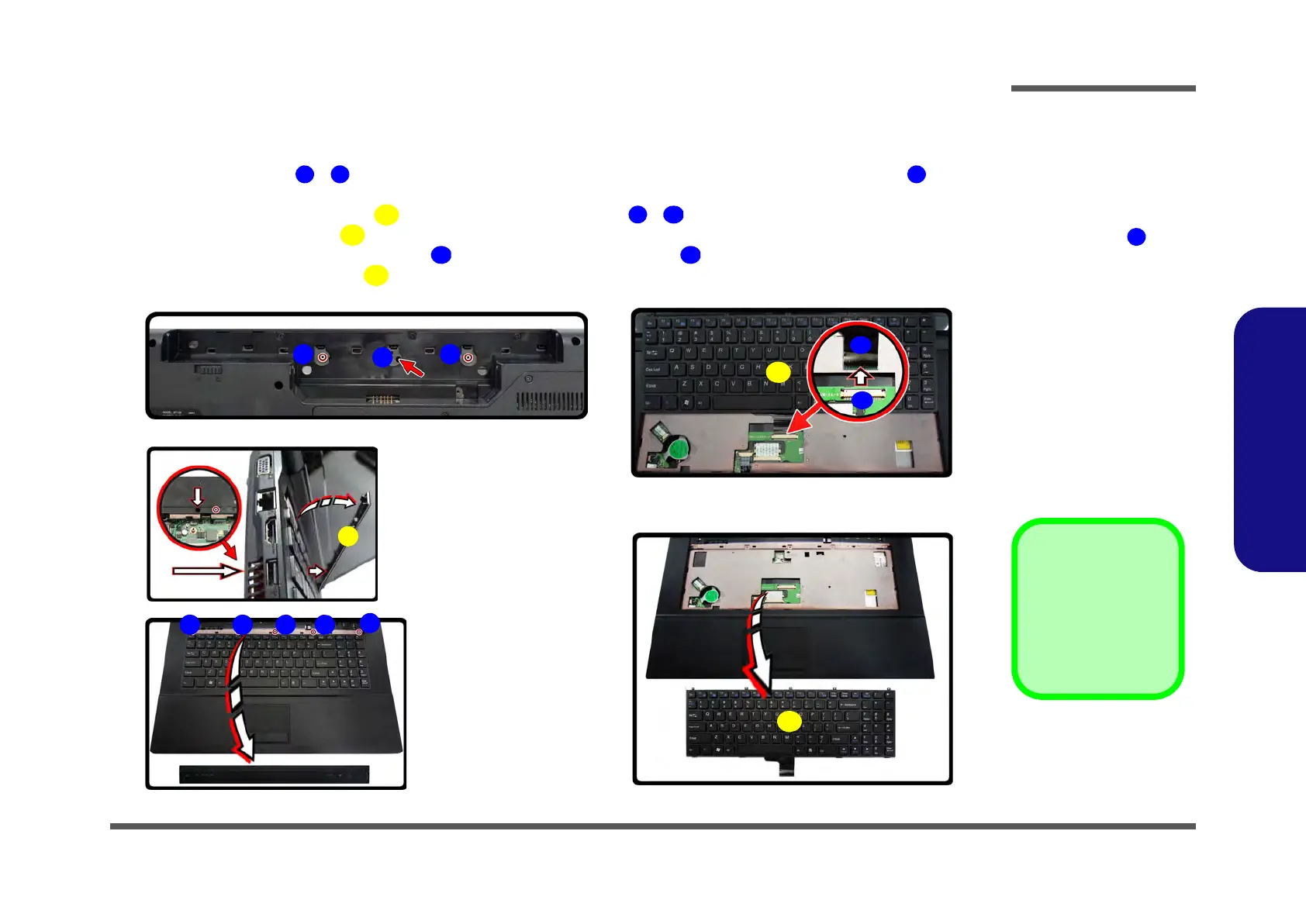

Figure 11
Keyboard Removal
a. Remove the screws and
use a screwdriver to care-
fully push out the top cover
module at point .
b. Remove the top cover
module.
c. Remove the screws.
d. Lift the keyboard up and
disconnect the cable from
the locking collar.
e. Remove the keyboard.
3
10
a.
b.
1 2
3
86
4
c.
5 7
e.
d.
10
11
12
10
9
4
