1.6 System wiring instruction.
D
E

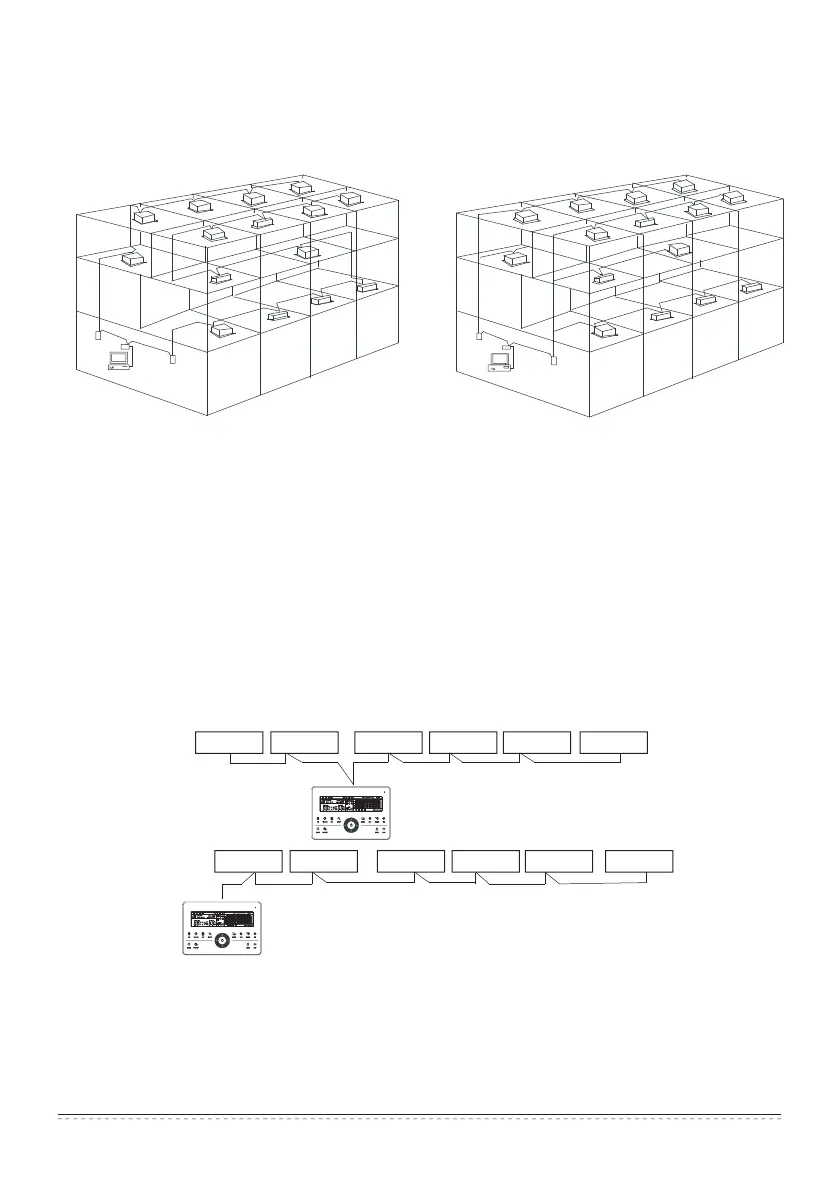

1) Wiring diagram of
building net w ork air conditioning s y stem.
(a) The wiring system is good for communication,recommended
(b) The wiring system is bad for communication,not recommended
2) System wiring diagram of centralized controller and indoor unit of air conditioner.
Both
of the follo w ing w i ring mo d e s of centralized
controller a nd indoor unit are
applicable:
(The number
of
indoor unit s connected w i th
each centralized controller is not beyond 64)
Indoor unit
Indoor unit Indoor unit Indoor unit Indoor unit Indoor unit Indoor unit
Indoor unit Indoor unit Indoor unit Indoor unit Indoor unit
Centralized controller
Centralized controller
Fig.1.5 Wiring diagram of centralized controller and indoor unit of air conditioner
