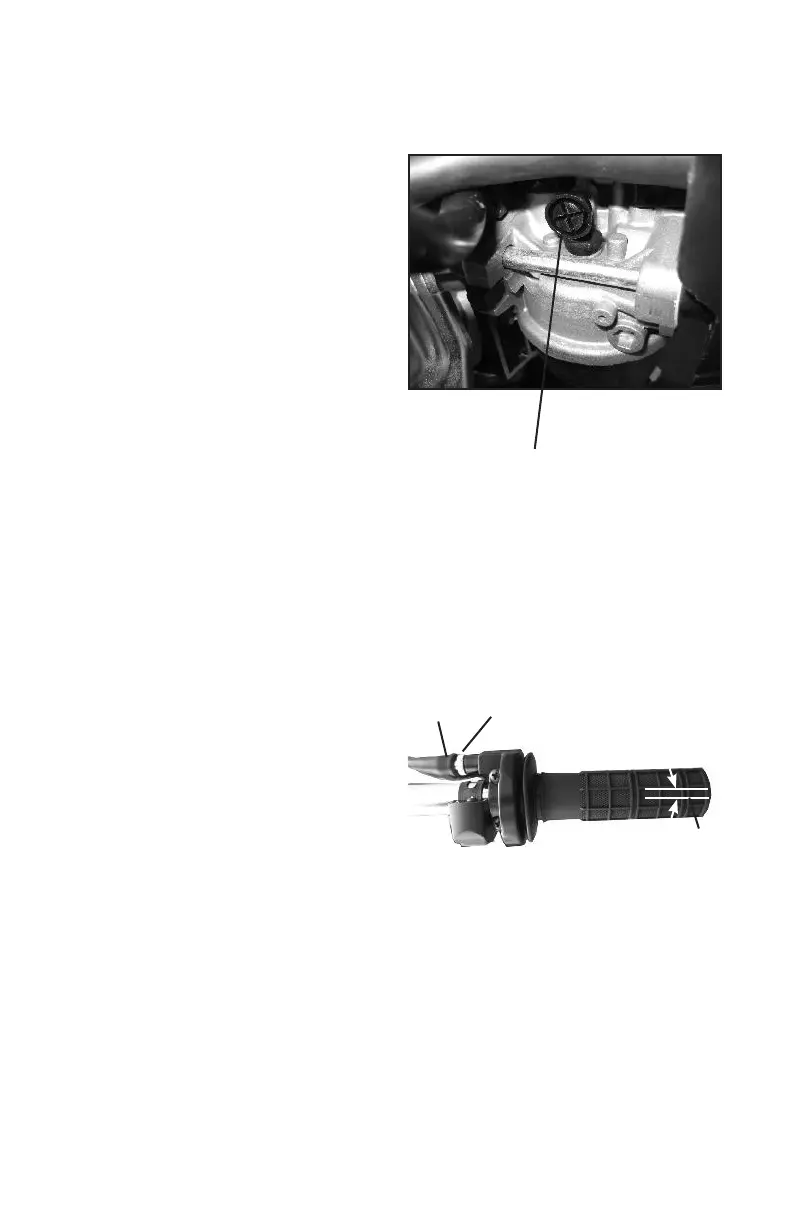

THROTTLE ADJUSTMENT
9
Idle speed adjustment
The idle speed should be set at 1700 ±
150 RPMs
Note: A service center can perform this
adjustment . A diagnostic tachometer is
required for this adjustment.
To adjust the idle speed:
1. Locate the idle adjustment screw (1)
located on the carburetor.
2. Allow the engine to warm up
approximately 10 minutes
3. With the engine running, turn the idle
adjustment screw in or out at small
increments until the correct idle is
achieved.
1
Throttle Cable adjustment
The hand grip throttle free play (2) should
be .078 - .24 in (2-6 mm)
To adjust freeplay
1. Loosen jam nut (3)
2. Turn adjusting nut (4) to proper setting
3. Once throttle grip is at the proper
freeplay, re-tighten the jam nut (3).
2
3
4
.078 - .24 in
(2-6 mm)
It is important that the throttle grip have a
certain amount of free play .
