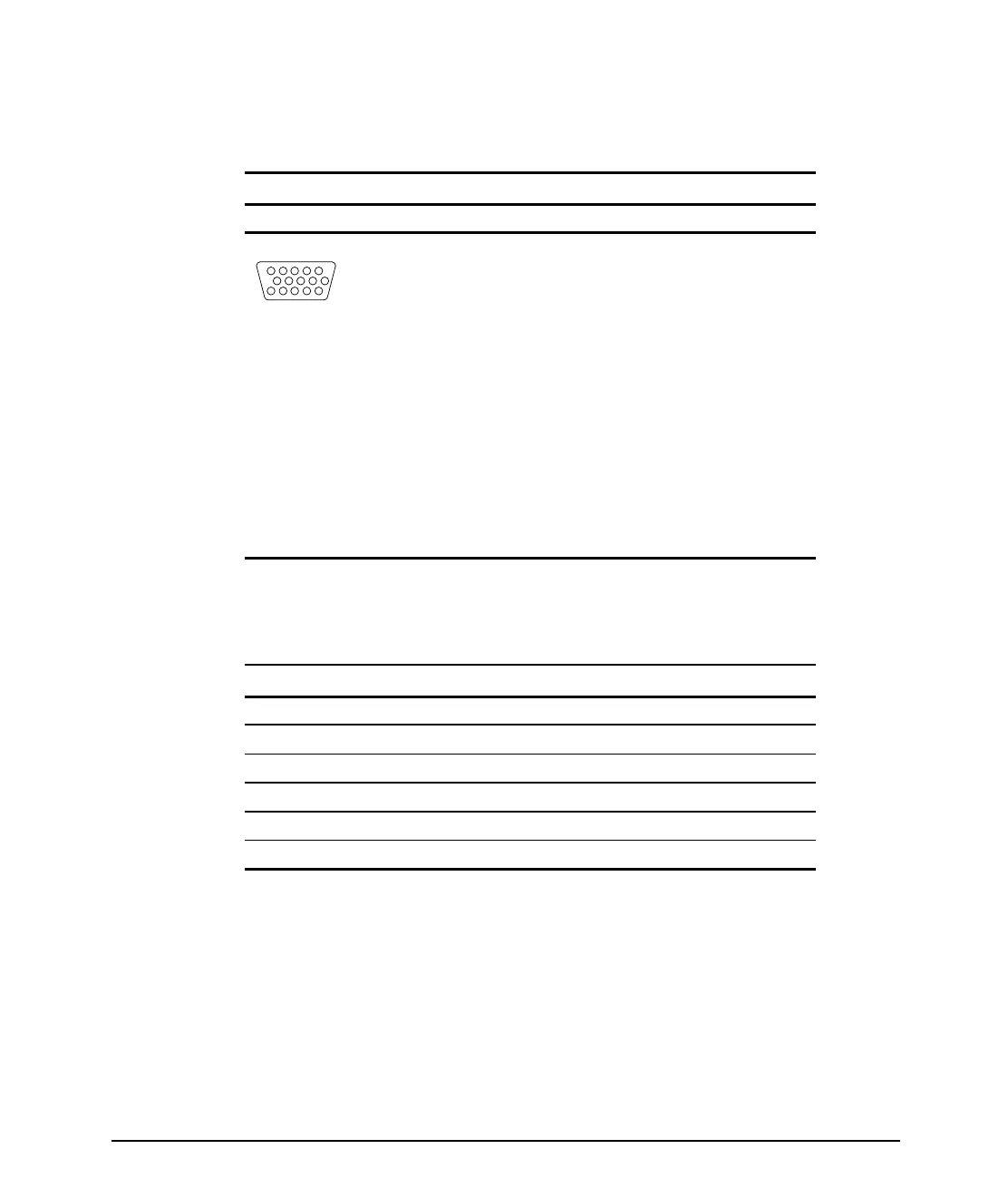

Connector Pin Assignments
Signal Cable
Connector Pin Signal
KEY 10
45
15 14
78
123
13 12 11
6
1
2
3
4
5
6
7
8
9
10
11
12
*
13
14
15
*
Red Video
Green Video/Sync on Green
Blue Video
Ground
Return
Red Gnd
Green Gnd
Blue Gnd
Reserved (No Pin)
Sync Gnd
Ground
Bidirectional Data (SDA)
H-Sync
V-Sync24
Data Clock (SCL)
*
DDC Signals
Color Display Values
CIE* Chromaticity Coordinates
XY
Red
0.620 0.350
Green
0.305 0.600
Blue
0.155 0.065
White Point (9300 K)
0.281 (+/- .015) 0.311 (+/- .015)
Gamma: 2.5
*
Commission International d’Eclairage, 1931 Standard.
