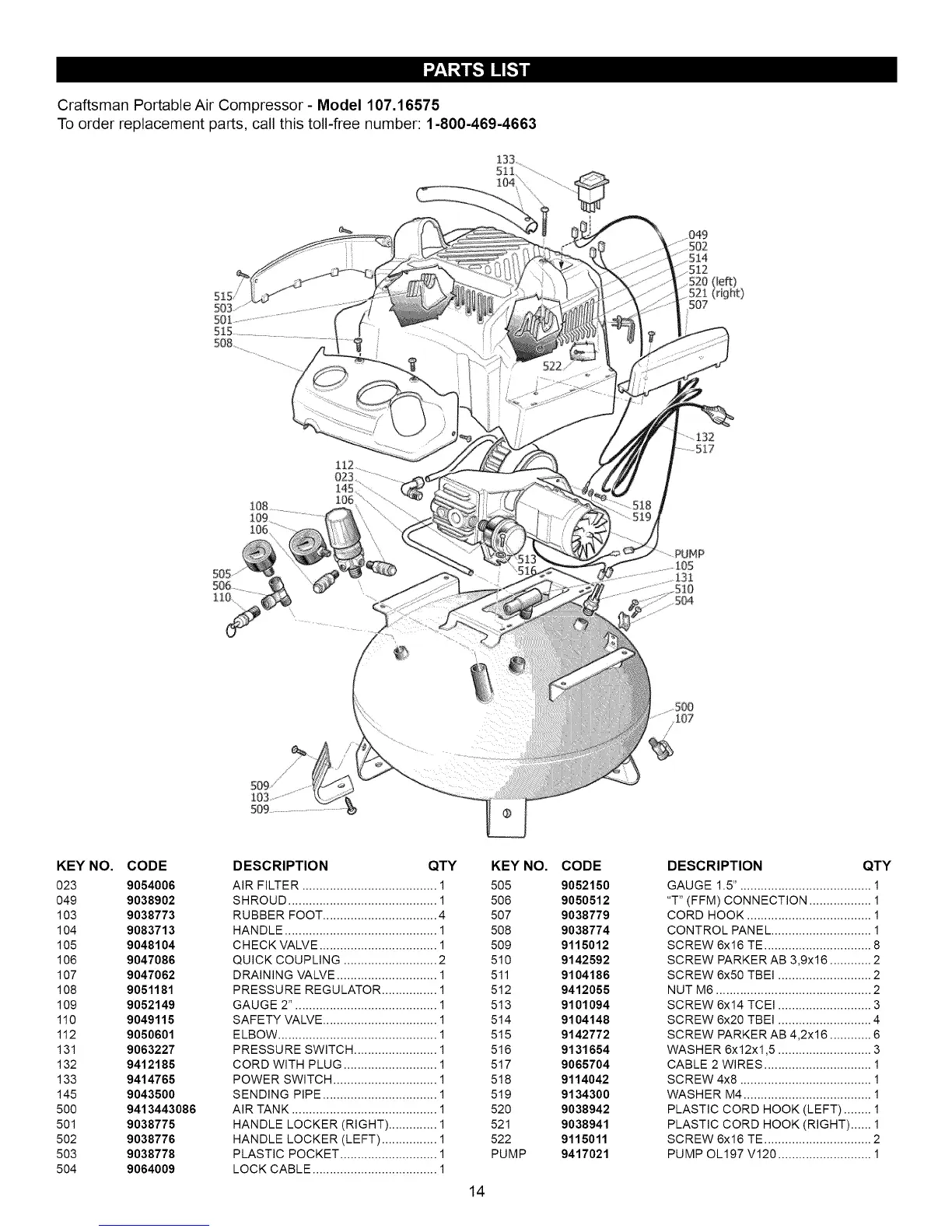

Craftsman Portable Air Compressor - Model 107.16575
To order replacement parts, call this toll-free number: 1-800-469-4663
515/
503
508....
049
502
514
512
_520(le_)
521 (right)
I08.......
i09
106
112
023
\
IMP
.....I05
131
107
/
KEY NO.
023
049
103
1O4
105
106
107
108
109
110
112
131
132
133
145
5OO
501
5O2
5O3
5O4
CODE
9054006
9038902
9038773
9083713
9048104
9047086
9047062
9051181
9052149
9049115
9050601
9063227
9412185
9414765
9043500
9413443086
9038775
9038776
9038778
9064009
DESCRIPTION QTY
AIR FILTER ....................................... 1
SHROUD ........................................... 1
RUBBER FOOT ................................. 4
HANDLE ............................................ 1
CHECK VALVE .................................. 1
QUICK COUPLING ........................... 2
DRAINING VALVE ............................. 1
PRESSURE REGULATOR ................ 1
GAUGE 2". ........................................ 1
SAFETY VALVE ................................. 1
ELBOW .............................................. 1
PRESSURE SWITCH ........................ 1
CORD WITH PLUG ........................... 1
POWER SWITCH .............................. 1
SENDING PIPE ................................. 1
AIR TANK .......................................... 1
HANDLE LOCKER (RIGHT) .............. 1
HANDLE LOCKER (LEFT) ................ 1
PLASTIC POCKET ............................ 1
LOCK CABLE .................................... 1
KEY NO.
5O5
5O6
5O7
5O8
5O9
510
511
512
513
514
515
516
517
518
519
52O
521
522
PUMP
14
CODE
9052150
9050512
9038779
9038774
9115012
9142592
9104186
9412055
9101094
9104148
9142772
9131654
9065704
9114042
9134300
9038942
9038941
9115011
9417021
DESCRIPTION QTY
GAUGE 1.5". ..................................... 1
"T" (FFM) CONNECTION .................. 1
CORD HOOK .................................... 1
CONTROL PANEL ............................. 1
SCREW 6x16 TE ............................... 8
SCREW PARKER AB 3,9x16 ............ 2
SCREW 6x50 TBEI ........................... 2
NUT M6 ............................................. 2
SCREW 6x14 TCEI ........................... 3
SCREW 6x20 TBEI ........................... 4
SCREW PARKER AB 4,2x16 ............ 6
WASHER 6x12x1,5 ........................... 3
CABLE 2 WIRES ............................... 1
SCREW 4x8 ...................................... 1
WASHER M4 ..................................... 1
PLASTIC CORD HOOK (LEFT) ........ 1
PLASTIC CORD HOOK (RIGHT) ...... 1
SCREW 6x16 TE ............................... 2
PUMP OL197 V120 ........................... 1
