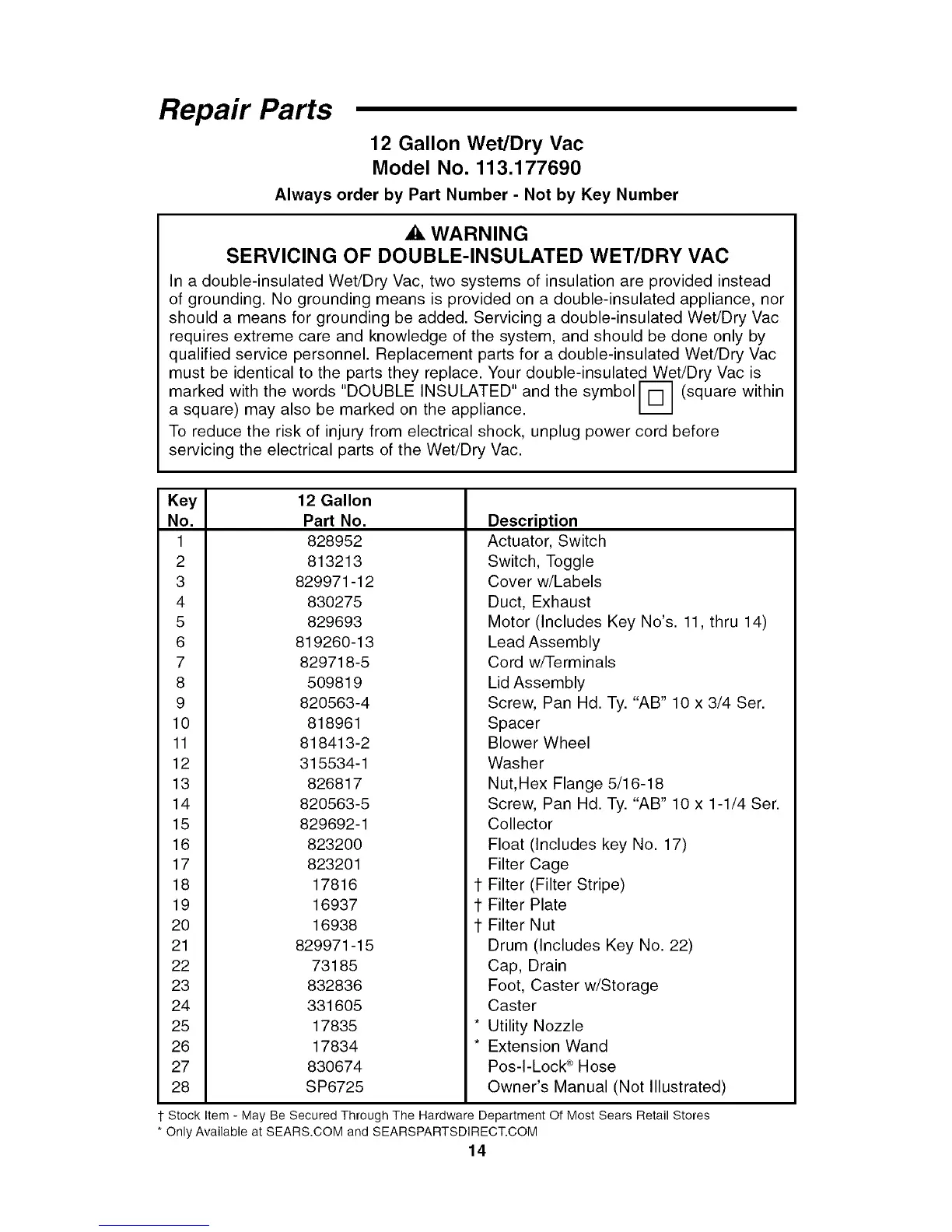

Repair Parts
12 Gallon Wet/Dry Vac
Model No. 113.177690
Always order by Part Number - Not by Key Number
WARNING
SERVICING OF DOUBLE-INSULATED WET/DRY VAC
In a double-insulated Wet/Dry Vac, two systems of insulation are provided instead
of grounding. No grounding means is provided on a double-insulated appliance, nor
should a means for grounding be added. Servicing a double-insulated Wet/Dry Vac
requires extreme care and knowledge of the system, and should be done only by
qualified service personnel. Replacement parts for a double-insulated Wet/Dry Vac
must be identical to the parts they replace. Your double-insulated Wet/Dry Vac is
marked with the words "DOUBLE INSULATED" and the symbol F_ (square within
a square) may also be marked on the appliance.
To reduce the risk of injury from electrical shock, unplug power cord before
servicing the electrical parts of the Wet/Dry Vac.
Key 12 Gallon
No. Pa_ No.
1 828952
2 813213
3 829971-12
4 830275
5 829693
6 819260-13
7 829718-5
8 509819
9 820563-4
10 818961
11 818413-2
12 315534-1
13 826817
14 820563-5
15 829692-1
16 823200
17 823201
18 17816
19 16937
20 16938
21 829971-15
22 73185
23 832836
24 331605
25 17835
26 17834
27 830674
28 SP6725
t
t
t
Description
Actuator, Switch
Switch, Toggle
Cover w/Labels
Duct, Exhaust
Motor (Includes Key No's. 11, thru 14)
Lead Assembly
Cord w/Terminals
Lid Assembly
Screw, Pan Hd. Ty. "AB" 10 x 3/4 Ser.
Spacer
Blower Wheel
Washer
Nut, Hex Flange 5/16-18
Screw, Pan Hd. Ty. "AB" 10 x 1-1/4 Ser.
Collector
Float (Includes key No. 17)
Filter Cage
Filter (Filter Stripe)
Filter Plate
Filter Nut
Drum (Includes Key No. 22)
Cap, Drain
Foot, Caster w/Storage
Caster
Utility Nozzle
Extension Wand
Pos-I-Lock ®Hose
Owner's Manual (Not Illustrated)
1-Stock Item - May Be Secured Through The Hardware Department Of Most Sears Retail Stores
* Only Available at SEARS.COM and SEARSPARTSDIRECT.COM
14
To Next Page
