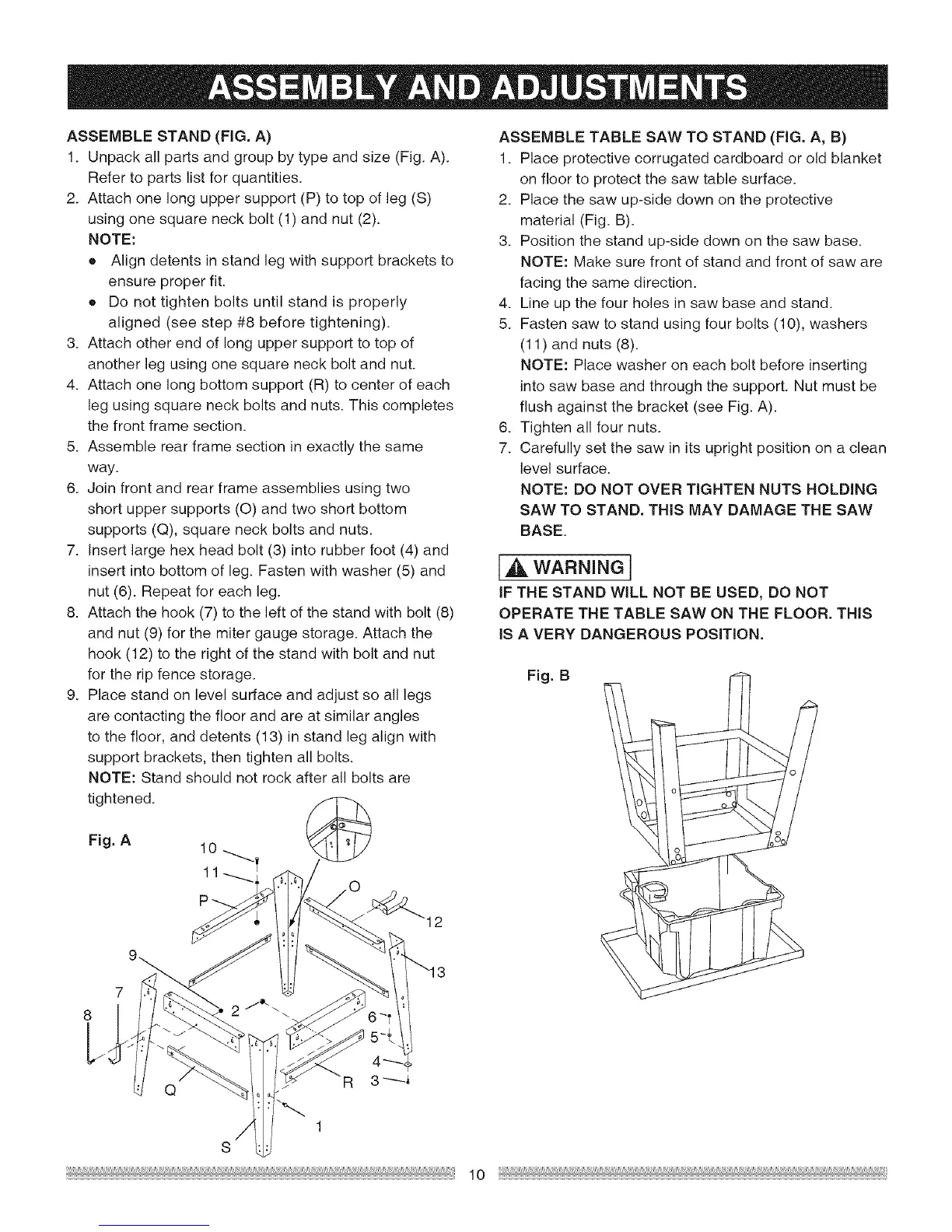

ASSEMBLESTAND(FIG.A)
1. Unpackallpartsandgroupbytypeandsize(Fig.A).
Refertopartslistforquantities.
2. Attachonelonguppersupport(P)totopofleg(S)
usingonesquareneckbolt(1)andnut(2).
NOTE:
• Aligndetentsinstandlegwithsupportbracketsto
ensureproperfit.
• Donottightenboltsuntilstandis properly
aligned(seestep#8beforetightening).
3. Attachotherendof longuppersupporttotopof
anotherlegusingonesquareneckboltandnut.
4. Attachonelongbottomsupport(R)tocenterofeach
legusingsquareneckboltsandnuts.Thiscompletes
thefrontframesection.
5. Assemblerearframesectioninexactlythesame
way.
6. Joinfrontandrearframeassembliesusingtwo
shortuppersupports(O)andtwoshortbottom
supports(Q),squareneckboltsandnuts.
7. Insertlargehexheadbolt(3)intorubberfoot(4)and
insertintobottomofleg.Fastenwithwasher(5)and
nut(6).Repeatforeachleg.
8. Attachthehook(7)totheleftofthestandwithbolt(8)
andnut(9)forthemitergaugestorage.Attachthe
hook(12)totherightofthestandwithboltandnut
fortheripfencestorage.
9. Placestandonlevelsurfaceandadjustsoalllegs
arecontactingthefloorandareatsimilarangles
tothefloor,anddetents(13)instandlegalignwith
supportbrackets,thentightenallbolts.
NOTE:Standshouldnotrockafterallboltsare
tightened.
ASSEMBLETABLESAWTOSTAND(FIG.A,B)
1. Placeprotectivecorrugatedcardboardoroldblanket
onfloortoprotectthesawtablesurface.
2. Placethesawup-sidedownontheprotective
material(Fig.B).
3. Positionthestandup-sidedownonthesawbase.
NOTE:Makesurefrontofstandandfrontofsaware
facingthesamedirection.
4. Lineupthefourholesinsawbaseandstand.
5. Fastensawtostandusingfourbolts(10),washers
(11)andnuts(8).
NOTE:Placewasheroneach bolt before inserting
into saw base and through the support. Nut must be
flush against the bracket (see Fig. A).
6. Tighten all four nuts.
7. Carefully set the saw in its upright position on a clean
level surface.
NOTE: DO NOT OVER TIGHTEN NUTS HOLDING
SAW TO STAND. THIS MAY DAMAGE THE SAW
BASE.
IA WARNINGI
IF THE STAND WILL NOT BE USED, DO NOT
OPERATE THE TABLE SAW ON THE FLOOR. THIS
IS A VERY DANGEROUS POSITION.
