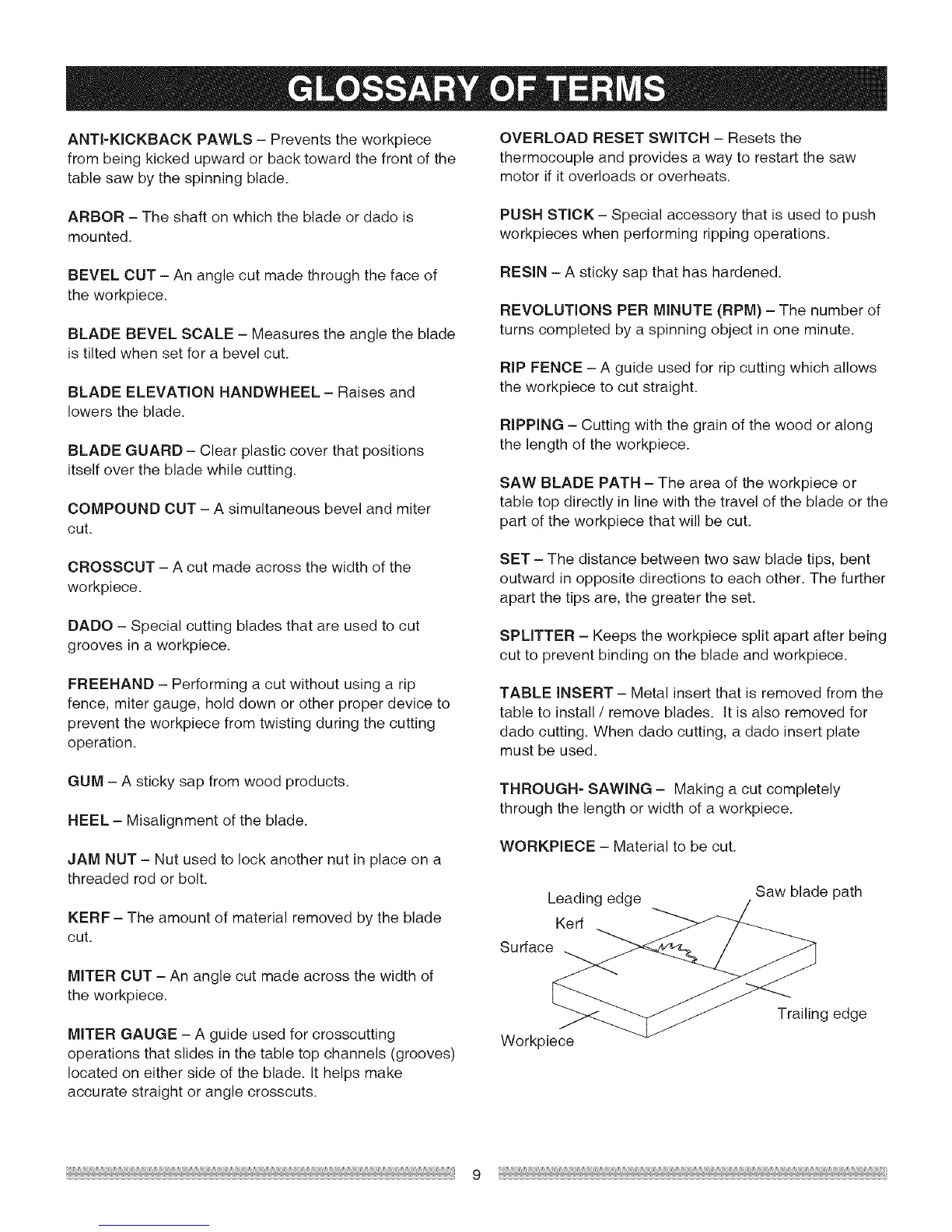

Craftsman 137.218030 User Manual

ANTFKICKBACKPAWLS- Preventstheworkpiece
frombeingkickedupwardorbacktowardthefrontofthe
tablesawbythespinningblade.
OVERLOADRESETSWITCH- Resetsthe
thermocoupleandprovidesa waytorestartthesaw
motorifitoverloadsoroverheats.
ARBOR- Theshaftonwhichthebladeordadois
mounted.
PUSHSTICK- Specialaccessorythatis usedtopush
workpieceswhenperformingrippingoperations.
BEVELCUT- Ananglecutmadethroughthefaceof
theworkpiece.
BLADEBEVELSCALE- Measurestheangletheblade
istiltedwhensetfora bevelcut.
BLADEELEVATIONHANDWHEEL- Raisesand
lowerstheblade.
BLADEGUARD- Clearplasticcoverthatpositions
itselfoverthebladewhilecutting.
COMPOUNDCUT- Asimultaneousbevelandmiter
cut.
RESIN- A stickysapthathashardened.
REVOLUTIONSPERMINUTE(RPM)- Thenumberof
turnscompletedbyaspinningobjectinoneminute.
RIPFENCE- A guideusedforripcuttingwhichallows
theworkpiecetocutstraight.
RiPPiNG- Cutting with the grain of the wood or along
the length of the workpiece.
SAW BLADE PATH - The area of the workpiece or
table top directly in line with the travel of the blade or the
part of the workpiece that will be cut.
CROSSCUT - A cut made across the width of the
workpiece.
DADO - Special cutting blades that are used to cut
grooves in a workpiece.
FREEHAND - Performing a cut without using a rip
fence, miter gauge, hold down or other proper device to
prevent the workpiece from twisting during the cutting
operation.
SET - The distance between two saw blade tips, bent
outward in opposite directions to each other. The further
apart the tips are, the greater the set.
SPLITTER - Keeps the workpiece split apart after being
cut to prevent binding on the blade and workpiece.
TABLE INSERT - Metal insert that is removed from the
table to install / remove blades, tt is also removed for
dado cutting. When dado cutting, a dado insert plate
must be used.
GUM - A sticky sap from wood products.
HEEL - Misalignment of the blade.
JAM NUT - Nut used to lock another nut in place on a
threaded rod or bolt.
KERF - The amount of material removed by the blade
cut.
THROUGH- SAWING - Making a cut completely
through the length or width of a workpiece.
WORKPIECE - Material to be cut.
Leading edge
Kerf
Surface
Saw blade path
MITER CUT - An angle cut made across the width of
the workpiece.
MITER GAUGE - A guide used for crosscutting
operations that slides in the table top channels (grooves)
located on either side of the blade, it helps make
accurate straight or angle crosscuts.
Workpiece
Trailing edge
