Craftsman 247.370310 - Attaching The Grass Catcher

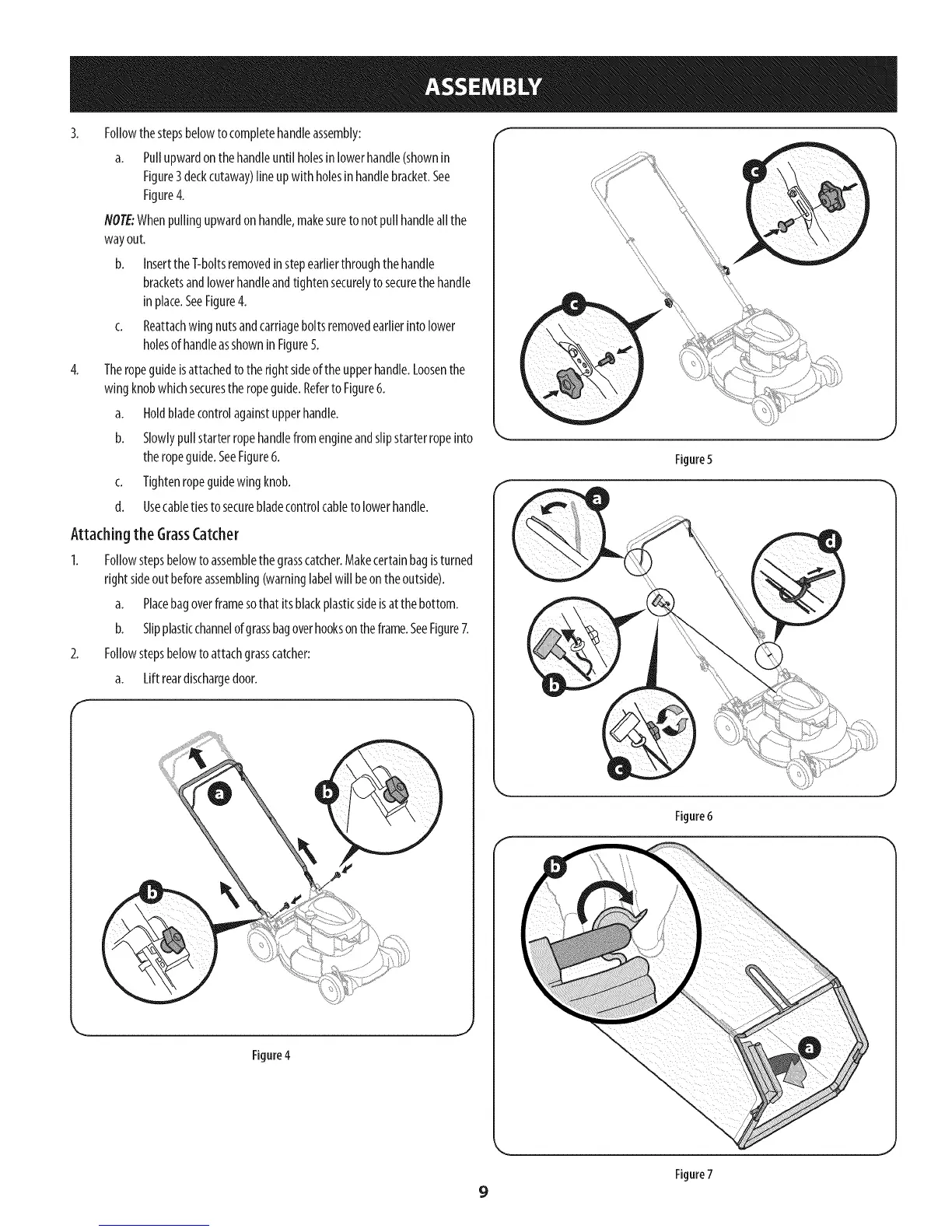

3. Followthestepsbelowto completehandleassembly:
a. Pullupwardonthehandleuntil holesinlowerhandle(shownin
Figure3deckcutaway)lineupwith holesinhandlebracket.See
Figure4.
NOTE:Whenpullingupwardonhandle,makesuretonotpullhandleallthe
wayout.
b. InserttheT-boltsremovedinstepearlierthroughthehandle
bracketsandlowerhandleandtightensecurelyto securethehandle
inplace.SeeFigure4.
c. Reattachwingnutsandcarriageboltsremovedearlierintolower
holesof handleasshownin Figure5.
4. Theropeguideisattachedto therightsideof theupperhandle.Loosenthe
wingknobwhichsecurestheropeguide.Referto Figure6.
a. Holdbladecontrolagainstupperhandle.
b. Slowlypullstarterropehandlefromengineandslipstarterropeinto
theropeguide.SeeFigure6.
c. Tightenropeguidewingknob.
d. Usecabletiesto securebladecontrolcableto lowerhandle.
Attaching the Grass Catcher
1. Followstepsbelowto assemblethegrasscatcher.Makecertainbagisturned
right sideout beforeassembling(warninglabelwill beontheoutside).
a. Placebagoverframesothat itsblackplasticsideisat thebottom.
b. Slipplasticchannelofgrassbagoverhooksontheframe.SeeFigure7.
2. Followstepsbelowto attachgrasscatcher:
a. Liftreardischargedoor.
Figure5
Figure4
9
Figure6
Figure7
