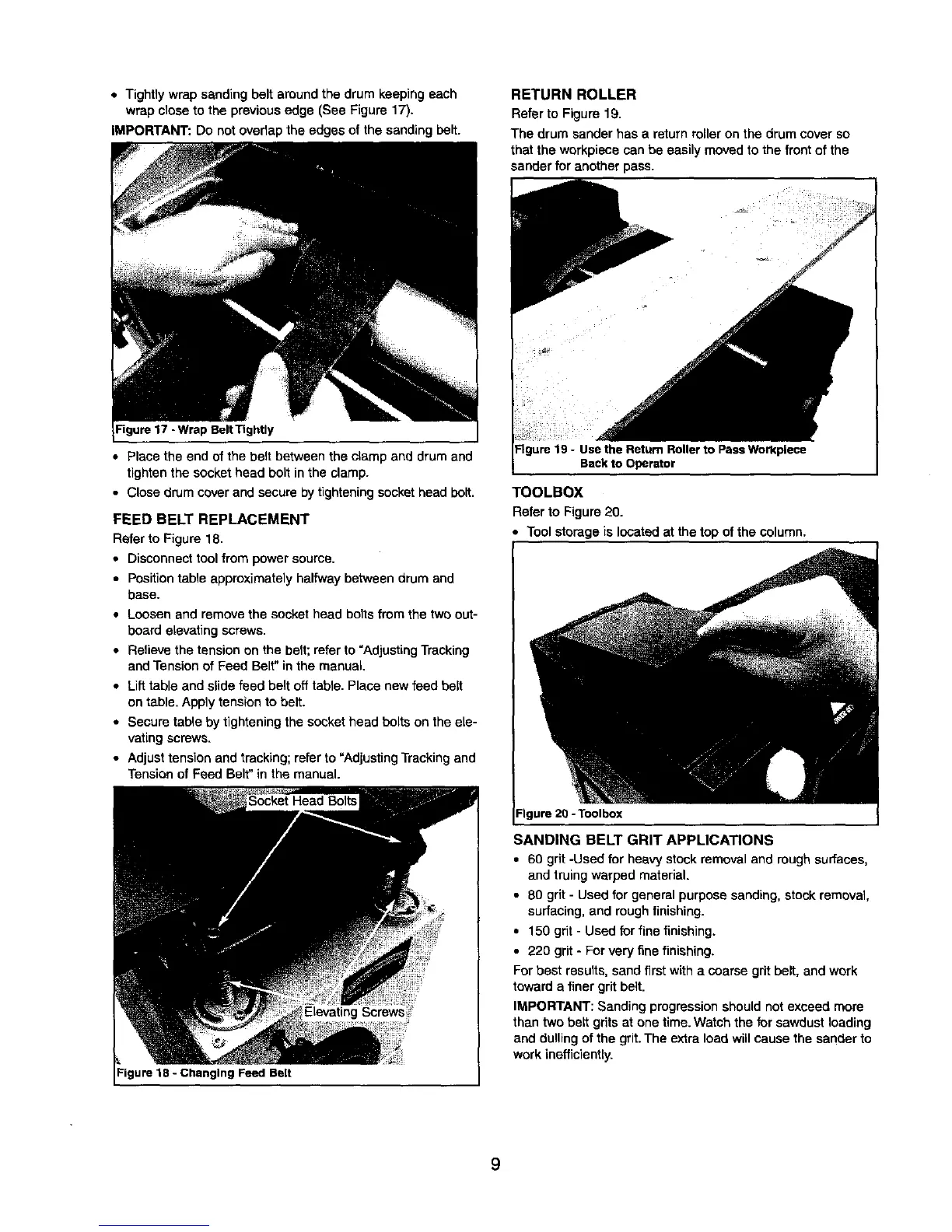

• Tightly wrap sanding belt around the drum keeping each
wrap close to the previous edge (See Figure 17).
iMPORTANT: Do not overlap the edges of the sanding belt.
Figure 17 - Wrap Belt Tightly
• Place the end of the belt between the clamp and drum and
tighten the socket head bolt in the clamp.
• Close drum cover and secure by tightening socket head belt.
FEED BELT REPLACEMENT
Refer to Figure 18.
• Disconnecttool from power source.
• Position table approximately halfway between drum and
base.
• Loosen and remove the socket head bolts from the two out-
board elevating screws.
• Relieve the tension on the belt; refer to "Adjusting Tracking
and Tension of Feed Belt" in the manual,
• Lift table and slide feed belt off table. Place new feed belt
on table. Apply tension to belt.
• Secure table by tightening the socket head bolts on the ele-
vating screws.
• Adjust tension and tracking; refer to "Adjusting Tracking and
Tension of Feed Belt" in the manual.
Elevating Screws?
Figure 18 - Changing Feed Belt
RETURN ROLLER
Refer to Figure 19.
The drum sander has a return roller on the drum cover so
that the workplace can be easily moved to the frontof the
sander for another pass.
PassWorkplece
Backto Operator
TOOLBOX
Refer to Figure 20.
Tool storage is locatedat the top of the column.
-"lgure20 -Toolbox
SANDING BELT GRIT APPLICATIONS
• 60 grit -Used for heavy stock removal and rough surfaces,
and truingwarped material.
• 80 grit - Used for general purpose sanding, stockremoval,
surfacing, and rough finishing.
• 150 grit- Used for fine finishing.
• 220 grit- For very fine finishing.
Forbest results,sand first witha coarse grit belt, and work
toward a finer grit belt.
IMPORTANT: Sanding progressionshould not exceed more
than two belt grits at one time. Watch the for sawdust loading
and dullingof the grit.The extra load willcause the sander to
work inefficiently.
