Craftsman 351.217150 User Manual

Name: Craftsman 351.217150
Brand: Craftsman
Rating: 4 (1 reviews)

52 pages

To Next Page

To Previous Page

Model 351.21 7150

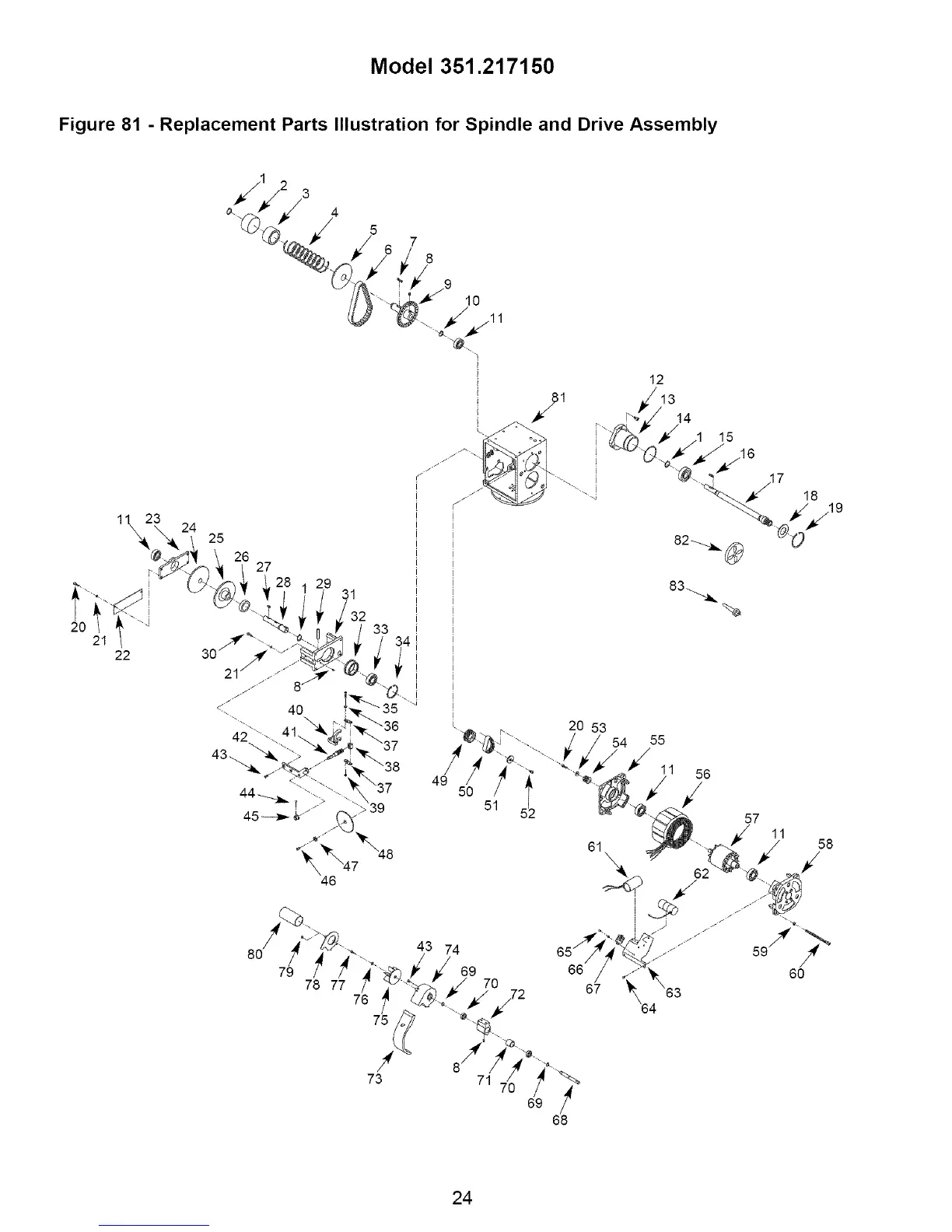

Figure 81 - Replacement Parts Illustration for Spindle and Drive Assembly

20 53

4<J51_ 5_2 "

Table of Contents2
Safety Rules2
Prepare Work Area for Job2
Protection: Eyes, Hands, Face, Body, Ears2
Unpacking3
Think Safety3
Assembly4
Installation4
Mounting Lathe to Bench4
Stability/Location of Wood Lathe4
Removal of Spur Center from Spindle5
Removal of Bearing Center from Ram5
Power Source5
Grounding Instructions5
Extension Cords6
Electrical Connections6
Specifications6
Volt Operation6
On-Off Switch7
Changing Speeds7
Spindle Turning7
Indexing8
Outboard Turning8
Using Woodworking Chisels8
Theory of Turning8
Selection of Chisels8
Cutting and Scraping9
How to Position Tool Rest for Circumference Cutting9
Using the Gouge10
Using the Skew10
Using the Parting Tool10
How to Position Chisel and Rest for Diameter Scraping10
Using the Scraping Chisels11
Using Shaper or Moulding Knives11
Using a Block Plate11
Using Wood Rasps and Files11
Making Standard Cuts12
The Roughing-Off Cut12
Rough-Cutting to Size12
Making Sizing Cuts12
Smoothing a Cylinder13
Cutting a Shoulder13
Cutting Vees13
Cutting Beads13
Spindle Turnings14
Cutting Coves (Convaves)14
Making Long Convex Cuts14
Plotting the Shape14
Recommended Speed15
Duplicate Turnings15
Long Spindles15
Cutting Dowels15
Faceplate and Chuck Turnings16
Drilling16
Planning the Work16
Planning Various Cuts16
Fancy Faceplate Turnings17
Preparing a Plug Chuck/Deep Recesses17
Turning Cylinders17
Rechucking17
Turning Balls18
Turned Boxes18
Segmented Turnings18
Turning Plastics19
Use of Wood Turning Chisels19
Use of Formed Tools for Production Beading and Similar Operations19
Polishing Plastics19
Maintenance20
Sanding, Buffing and Polishing20
Using of Lathe to Sand Turnings20
Use of Sanding Drums20
Replacing Worn Fan Belt21
Replacing Worn Variable Speed Belt21
Troubleshooting22
Replacement Parts Illustrations and Lists24
Cambio de Velocidad34
Montaje45
