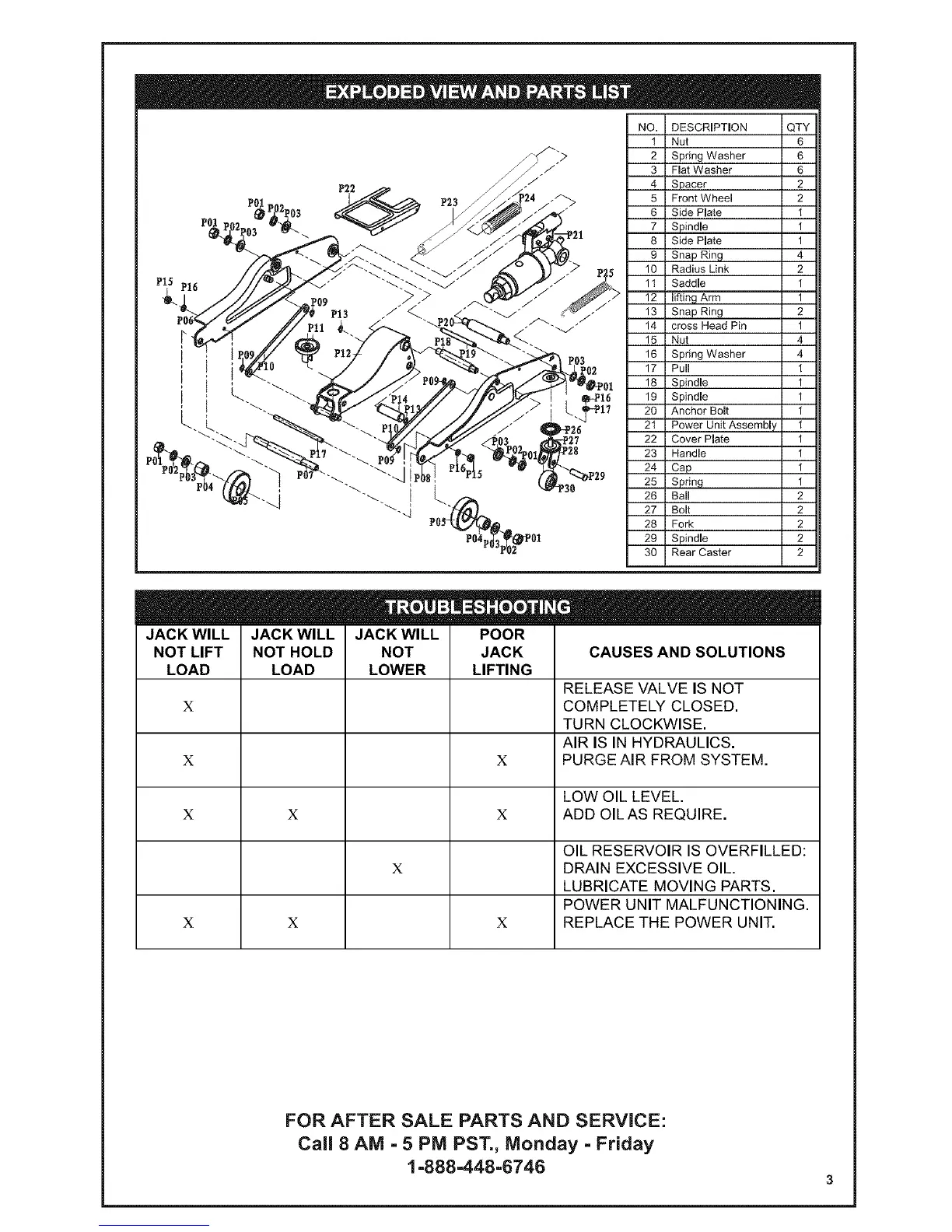

P22
NO. DESCRIPTION QTY
1 Nut 6
2 Spring Washer 6
3 Flat Washer 6
4 Spacer 2
5 Front Wheel 2
6 Side Plate 1
7 Spindle 1
8 Side Plate 1
9 Snap Ring 4
10 Radius Link 2
11 Saddle 1
12 lifting Arm 1
13 Snap Ring 2
14 cross Head Pin 1
15 Nut 4
16 Spring Washer 4
17 Pull 1
18 Spindle 1
19 Spindle 1
20 Anchor Bolt 1
21 Power Unit Assembly 1
22 Cover Plate 1
23 Handle 1
24 Cap 1
25 Spring 1
26 Ball 2
27 Bolt 2
28 Fork 2
29 Spindle 2
30 Rear Caster 2
JACK WILL
NOT LIFT
LOAD
JACK WILL
NOT HOLD
LOAD
JACK WILL
NOT
LOWER
POOR
JACK
LIFTING
CAUSES AND SOLUTIONS
RELEASE VALVE IS NOT
X COMPLETELY CLOSED.
TURN CLOCKWISE.
AIR IS IN HYDRAULICS.
X X PURGE AIR FROM SYSTEM.
LOW OIL LEVEL.
X X X ADD OILAS REQUIRE.
OIL RESERVOIR IS OVERFILLED:
X DRAIN EXCESSIVE OIL.
LUBRICATE MOVING PARTS.
POWER UNIT MALFUNCTIONING.
X X X REPLACE THE POWER UNIT.
FOR AFTER SALE PARTS AND SERVICE:
Call 8 AM - 5 PM PST., Monday - Friday
1=888=448=6746
